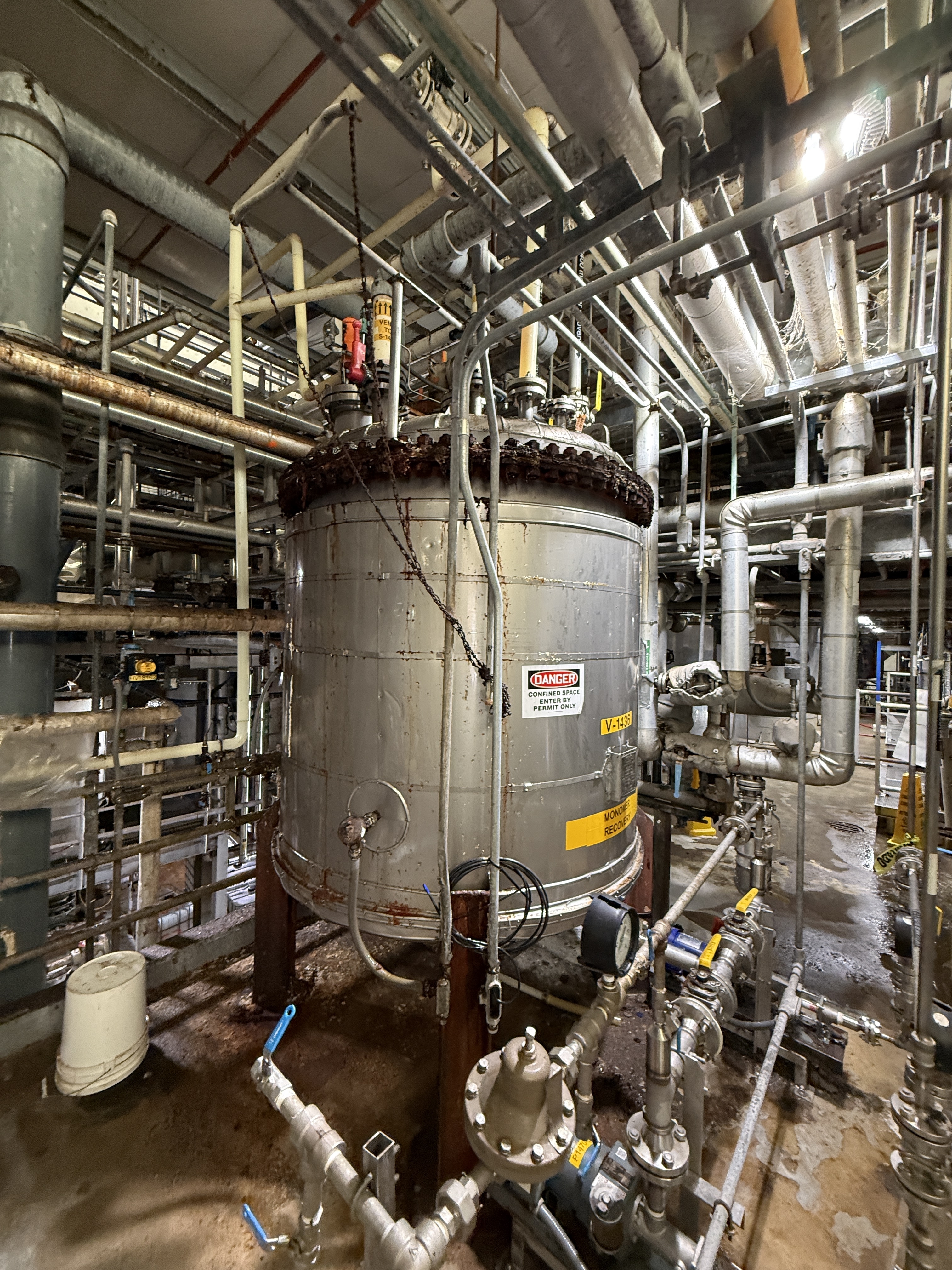

800 Gallon Stainless Steel 304 Tank with 304L Internal Coil - IPP# 248988

  • 800 Gallon Stainless Steel 304 Tank with 304L Internal Coil - IPP# 248988 800 Gallon Stainless Steel 304 Tank with 304L Internal Coil - IPP# 248988
  • 800 Gallon Stainless Steel 304 Tank with 304L Internal Coil - IPP# 248988
Overview
Tank
James Machine Works
Used
Stainless Steel 304
Capacity
3,050 L (800 gallons)
Dimensions
Vertical
1,500 mm (60 in)
2,150 mm (84 in)
Pressure
1.72 bar (25 psi)
Temperature
37.8 °C (100 °F)
Other Specifications
Yes
(3) baffles, 4" wide.
Sidewall Mounted Straight Baffle
Legs
Jacket
Internal Pipe Coil
Stainless Steel 304L
3.4 bar (50 psi)
65.6 °C (150 °F)
Additional Information
  • Internal Coils rated 120,000BTU/hr.
