316SS construction w/max of 4 1/2" shelf spacing Shelves have a hydraulic mechanism to compress for setting stoppers in vials. -55 to +75 deg C temp range. Shelves rated 15 KW heat each. Dryer chamber is heresite coated, 61" wide x 55" deep x 43 1/2" high, 85 cu ft volume. Hinged front door w/handwheel closure and (2) sight glasses. Unit has integral plate condenser, rated 15 psi @ 350 deg F, 53 sq ft surface area. Mtd on skid w/dryer is Vickers hydraulic control pump and (2) Duo-Seal oil seal vac pumps, 3 HP. All motors are 3/60/230/460 volt TEFC. W/dryer is separate refrigeration skid w/5 HP shelf compressor, mfd by Dunham Bush, hermetic, reciprocating design, Mdl 100-PHCELF-BJ, R-502. And 30 HP condenser compressor, mfd by Dunham Bush, open reciprocating type, direct driven by 30 HP, 3/60/230/460 volt TEFC motor. Compressor Mdl MD311DLFN2, SN 88E410157D. R502 refrigerant.
Type: Dryer-Freeze
Manufacturer: Hull
Model: 680-FXS-800
Condition: Used
Shelf Area - Drying Surface: 63.2 m² (680 ft²)
Number of Shelves: 34

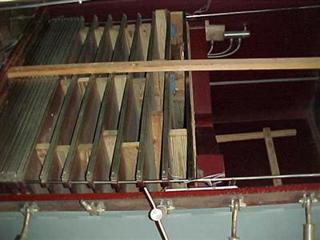

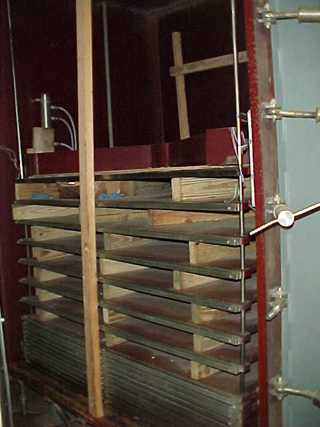

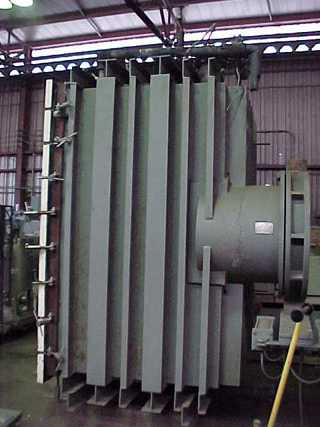

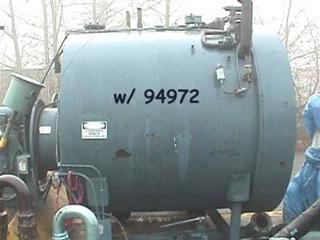

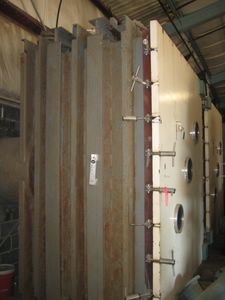

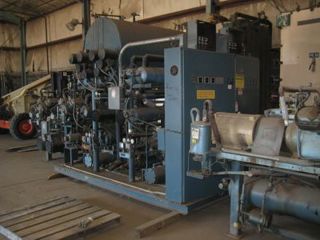

lyophilizer. System has (2) heresite lined chambers, each 340 sq ft w/(17) 60" x 48" shelves, 3-11/16" clearance between shelves. Both chambers are rated 15 psi/full vac @ 350 deg F. 375" thick shell, 2.125" thick door. Hinged front door w/(3) glass ports. Refrigeration and heating system data: shelf temp range -55 deg C to 75 deg C. Shelf heating is 40 KW per TCE system (Trichloroethylene). (1) condenser for both chambers, 405 sq ft, 800 liter holding capacity, SS condensing plates. Shelf refrigeration system has (2) 7.5 HP compressors. Condenser refrigeration skid has (4) 30 HP reciprocating compressors. Vac system includes (2) 7 1/2 HP Stokes oil seal vac pumps, pump down time to 100 microns is 15 minutes. All electricals are 3/60/460 volt, 385 amps.
Shelf Temperature Range: -55° C to 75° C. Stoppering: Yes.
