Stainless Steel 316 Granulator/Disintegrator Pulverizer For Sale - IPP# 704179

Type: Pulverizer

Subtype: Granulator/Disintegrator

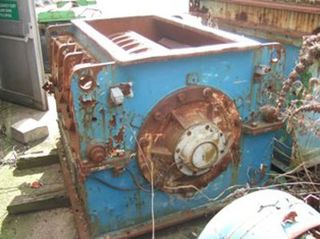

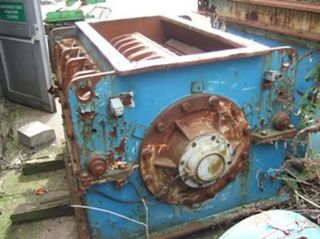

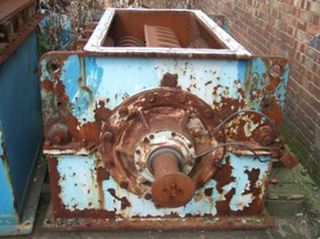

Manufacturer: Pallman

Model: PS8-126

Condition: Used

Material: Carbon Steel

Inlet Diameter: 1,300 mm (51.2 in)

Motor Power (Design): 110 kW (147.5 HP)

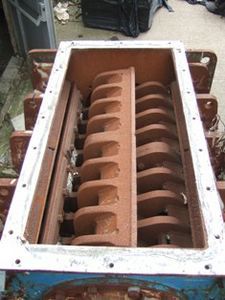

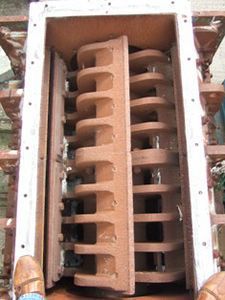

Type PS8-12/6 granulation system 800mm diameter x 1200mm long rotor with 6 removable blades, 6 removable stator knives. Rotor speed 315RPM. With (2) access doors 1280 mm x 650 mm Rotor speed 340 rpm. Feed 1300 mm x 600 mm with steel chute, discharge with steel chute. System includes an Aerzner blower type GL16.12, SR# 81013, pressure difference 5 PSI. Blower was driven by 50 HP 3/50/380/440V, 1470 RPM motor. (1) rotary lock valve on granulator discharge, SR# 5928, belt driven by 0.75 kW 3/50/220/250/380/440V, 1400 RPM motor via gearbox. With steel dust collector with fan and associated blower.

Speed (RPM): 340. Orientation: Horizontal.

Type: Pulverizer

Subtype: Granulator/Disintegrator

Manufacturer: Quadro Engineering

Model: 194S

Condition: Used

Material: Stainless Steel 316

Outlet Discharge Diameter: 304.8 mm (12 in)

Inlet Diameter: 304.8 mm (12 in)

Conical Screen mill with 1/8" mesh screen sanitary design and overdriven for ease of operation and maintenance. Designed to operate at 4,000 lbs an hour.(with 8" screen.) Various screen sizes available from the manufacturer.

Motor Power (Design): 7.5 kW (10 HP). Orientation: Vertical.

Type: Pulverizer

Subtype: Granulator/Disintegrator

Manufacturer: Condux

Model: CST 250/G

Condition: Used

Material: Stainless Steel 316

Motor Power (Design): 11 kW (14.8 HP)

Orientation: Vertical

14 hp 380-660 volt, IP54, vibrating pan feeder magnetic separator driven by 0.25 kw, 3/50/380-220 volt 1370 rpm, ex proof motor. Gear box of the Mill is water cooled

Type: Pulverizer

Subtype: Granulator/Disintegrator

Manufacturer: Condux

Model: CUM 280/S-D

Condition: Used

Material: Stainless Steel 316

Inlet Diameter: 100 mm (3.9 in)

Motor Power (Design): 11 kW (14.8 HP)

2995 rpm, hinged front cover, 100mm feed pipe,

Speed (RPM): 2,995. Orientation: Horizontal.
