single drum dip feed dryer M/C #4586 Drum cored for steam heating (2-50mm openings) Speed 1 to 6 rpm Drum totally enclosed in 316 stainless steel chamber Motor: non-flameproof motor Drum with monel adjustable stainless steel knife/scrapper Dip tray 1522mm long x 736mm wide Openings: 2-50mm, 1-25mm; hood with 1-300mm, 2-100mm. All wetted parts 316 stainless steel. (3) 400mm long x 300mm wide inspection covers.
Type: Dryer-Drum
Manufacturer: Simon Dryers
Condition: Refurbished/Rebuilt
Diameter: 914.4 mm (36 in)
Length: 2,540 mm (100 in)

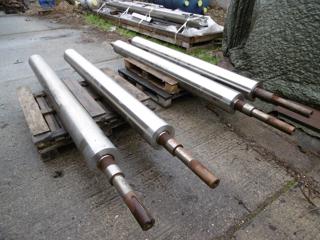

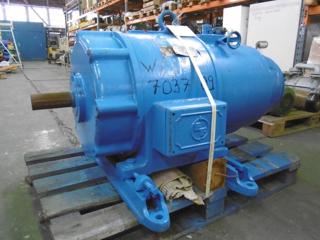

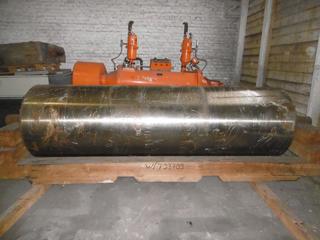

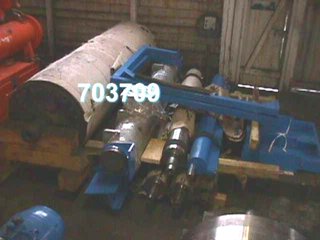

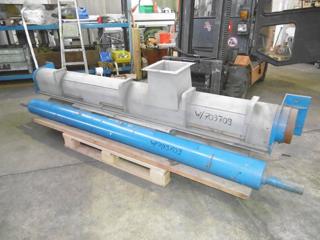

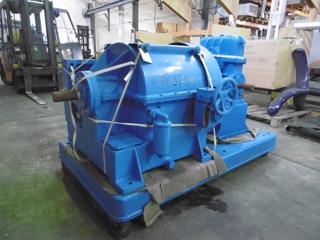

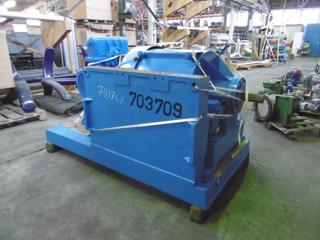

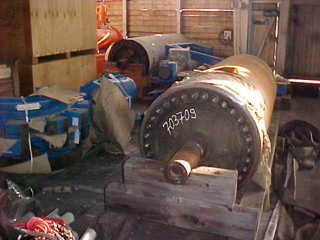

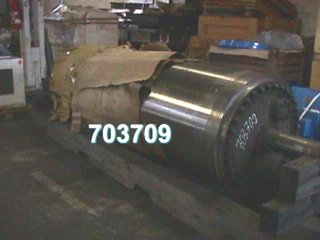

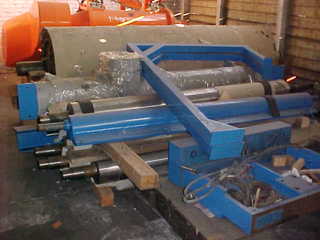

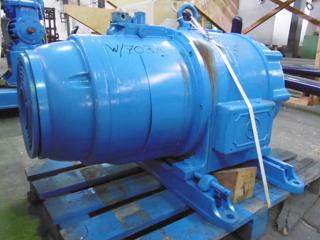

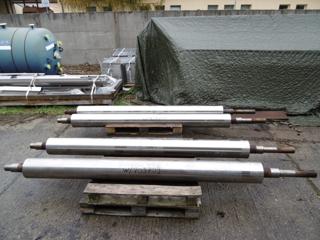

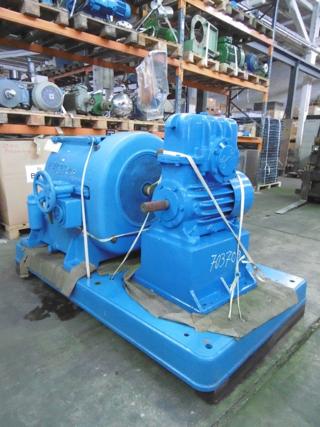

cast iron R Simon single drum dryer Dryer includes (3) + (1) 316SS 9" feed rolls working pressure 3 bar (6 bar tested) w/(2) pneumatic and (1) manual operated feed roll scrapers Scraper knifes mfd form tufnol bear brand material Pneumatically operated (non-oscillating) cast iron knife bar Knife mfd in cast steel Motor: 28 amps variable speed gearbox Radicon reduction gearbox SS paddle conveyor w/inspection panels powered by 1.5 KW geared motor Unit can be supplied w/pneumatically operated traversing gear if required Control panel consisting of all pneumatic controls and electrical timers for feed roll scrapers Was rebuilt
Drum Configuration: Single. Pressure: 7 bar (101.5 psi). Heat Transfer Surface Area: 7.4 m² (80 ft²). Number of Applicator Rolls: 4. Applicator Roll Diameter: 228.6 mm (9 in).
Type: Dryer-Drum

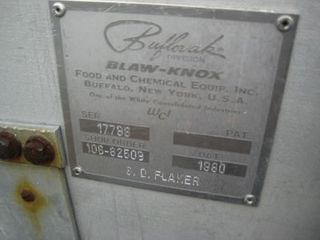

Manufacturer: Buflovak/Blaw Knox
Condition: Used
Material: Stainless Steel 316
Diameter: 304.8 mm (12 in)
Length: 457.2 mm (18 in)

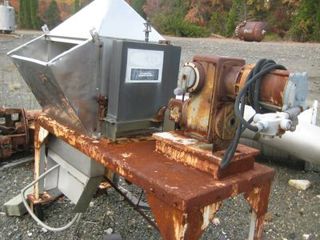

single drum dip feed dryer Drum cored for steam heating Manual knife discharge Has 15" x 19" CS jkt feed pan 3/60/230/460 volt, rated 44 rpm max, 8.8 rpm min
Drum Heating-Cooling: Heating. Heating Type: Steam. Drum Configuration: Single.
Type: Dryer-Drum
Model: 134-4 0000
Condition: Unused
Material: Stainless Steel 316
Diameter: 762 mm (30 in)
Length: 2,591 mm (102 in)

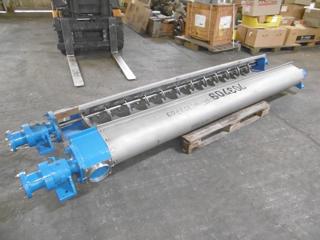

single drum dryer Drum driven by 12 KW motor and reducer Cored drum Packing gland on shaft Outboard bearings Dual knife discharge, manual knife adjustment into 8" dia screw conveyor
Drum Heating-Cooling: Heating. Heating Type: Steam. Drum Configuration: Single. Pressure: 8 bar (116 psi). Temperature: 175.6 °C (348 °F). Heat Transfer Surface Area: 6.3 m² (67.8 ft²).
