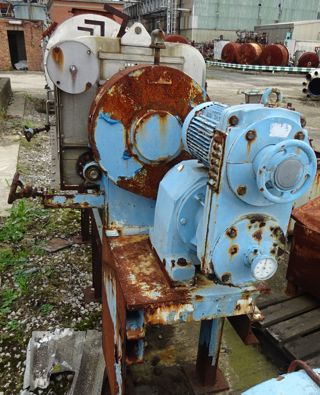

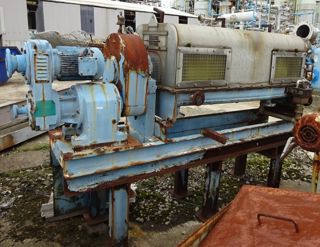

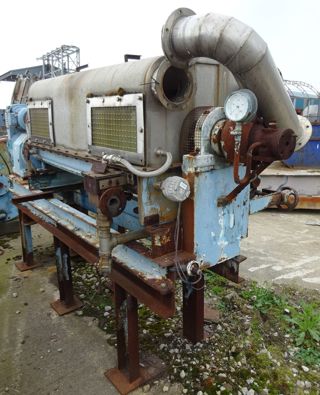

cast iron R Simon single drum dryer Dryer includes (3) + (1) 316SS 9" feed rolls working pressure 3 bar (6 bar tested) w/(2) pneumatic and (1) manual operated feed roll scrapers Scraper knifes mfd form tufnol bear brand material Pneumatically operated (non-oscillating) cast iron knife bar Knife mfd in cast steel Motor: 28 amps variable speed gearbox Radicon reduction gearbox SS paddle conveyor w/inspection panels powered by 1.5 KW geared motor Unit can be supplied w/pneumatically operated traversing gear if required Control panel consisting of all pneumatic controls and electrical timers for feed roll scrapers Was rebuilt
Type: Dryer-Drum
Manufacturer: Simon Dryers
Condition: Used
Material: Stainless Steel 316
Diameter: 456 mm (18 in)
Length: 1,370 mm (53.9 in)

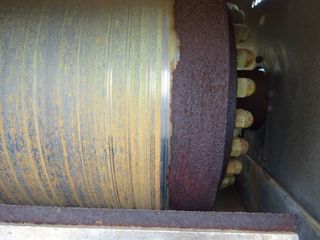

single drum dip feed dryer M/C #4586 Drum cored for steam heating (2-50mm openings) Speed 1 to 6 rpm Drum totally enclosed in 316 stainless steel chamber Motor: non-flameproof motor Drum with monel adjustable stainless steel knife/scrapper Dip tray 1522mm long x 736mm wide Openings: 2-50mm, 1-25mm; hood with 1-300mm, 2-100mm. All wetted parts 316 stainless steel. (3) 400mm long x 300mm wide inspection covers.
Drum Heating-Cooling: Heating. Heating Type: Steam. Drum Configuration: Single. Pressure: 7 bar (101.5 psi). Temperature: 174 °C (345.2 °F). Heat Transfer Surface Area: 1.95 m² (21 ft²).
