Name: Stainless Steel 316 Drive Agitator
Brand: Chemineer
SKU: 705323

Type:

Agitator

Subtype:

Drive

Manufacturer:

Chemineer

Model:

2-HTN-5

Condition:

Used

Material:

Stainless Steel 316

Drive Power:

4.1 kW (5.5 HP)

Input RPM:

1,440

Drive Type:

Right-angle

Mounting Details:

316 stainless steel flange mounted, For closed tank mounting

Output Shaft RPM:

Powered Transmission:

Direct Coupled

Additional Info:

For closed tank mounting Mounting flange: 316SS face, 16" outer diameter, 12 1/2" inner diameter Mechanical seal Motor: 3 phase flameproof motor No shaft with unit 2" diameter x 6 3/4" long stub shaft with 5 1/2" flanged with (4) 3/4" holes With lubricator

7.5 kW (10.1 HP) Stainless Steel 316 Drive Agitator

Type: Agitator

Subtype: Drive

Manufacturer: Chemineer

Model: 4-HTAL-10

Condition: Used

Material: Stainless Steel 316

Drive Power: 7.5 kW (10.1 HP)

Input RPM: 1,435

For closed tank mounting 1435 rpm input Direct coupled Motor: 3 phase non-flameproof motor No shaft with unit Packing gland.

5.5 kW (7.4 HP) Stainless Steel 316 Drive Agitator

Type: Agitator

Subtype: Drive

Manufacturer: Chemineer

Model: 4-HTA-7

Condition: Used

Material: Stainless Steel 316

Drive Power: 5.5 kW (7.4 HP)

Input RPM: 1,410

For closed tank mounting 1410 rpm input 3/50/415 volt non-flameproof motor No shaft with unit Packing gland.

0.22 kW (0.3 HP) Stainless Steel 316 Drive Agitator

Type: Agitator

Subtype: Drive

Manufacturer: Chemineer

Model: THA-3

Condition: Used

Material: Stainless Steel 316

Drive Power: 0.22 kW (0.3 HP)

Drive RPM: 1,750

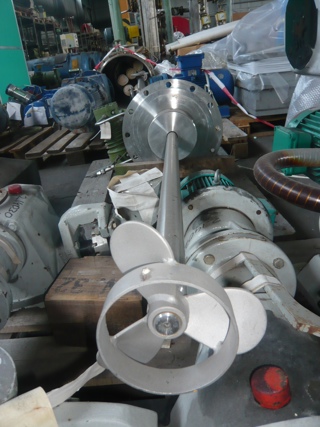

wetted parts with shaft and impeller with 4' 316 SS shaft Clockwise rotation 115/230 v motor Mounting flange 11" OD x 9.5" BC fits standard 8" 150 # flange

Orientation: Vertical.
