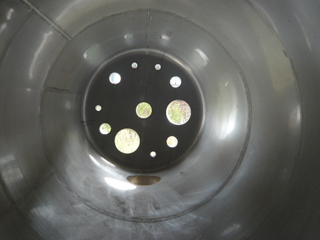

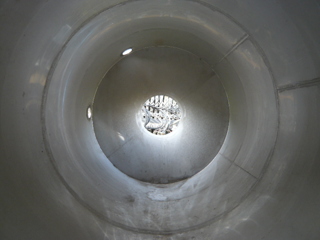

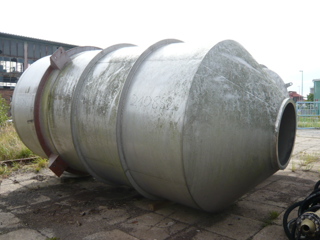

Stainless Steel 304 Horizontal Tank - IPP# 706640

Type: Tank

Manufacturer: Perry Products Co.

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 28,391 L (7,500 gallons)

Orientation: Horizontal

• (5) reinforcing rings around outside of tank

Diameter: 2,438 mm (96 in). Straight-side Length: 6,096 mm (240 in). Cone Length: 305 mm (12 in). Support: Saddle.

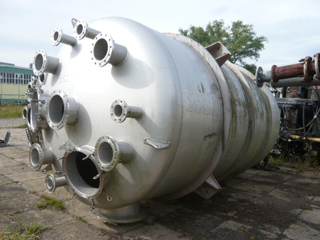

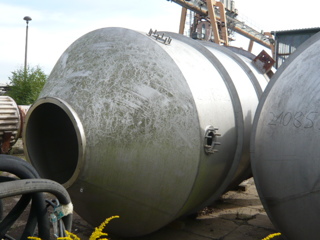

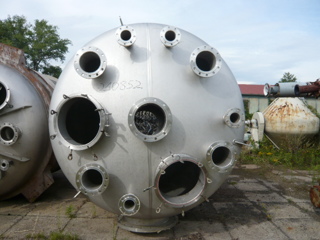

Type: Tank

Manufacturer: M. LABBE

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 21,215 L (5,604 gallons)

Orientation: Vertical

Pressure rating: without pressure
Lifting weight: 3,030kg
Vessel wall thickness of head and bottom dish 8mm
Cylindrical section 6mm

Diameter: 2,400 mm (94.5 in). Straight-side Length: 3,900 mm (154 in). Internal Temperature: 135 °C (275 °F). Cone Length: 793 mm (31.2 in). Support: Lugs.

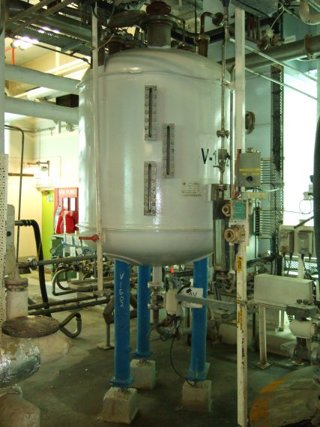

Type: Tank

Manufacturer: John Dore & Co LTD.

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 1,000 L (264 gallons)

Orientation: Vertical

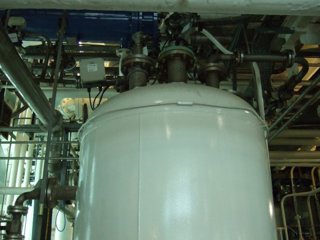

• Fully insulated pressure tank.

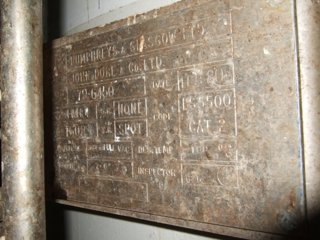

• Built to BS 5500

Diameter: 1,060 mm (41.7 in). Straight-side Length: 1,066 mm (42 in). Internal Pressure: 3.79 bar (54.9 psi). Internal Temperature: 190 °C (374 °F). Vacuum: Yes. Support: Legs.

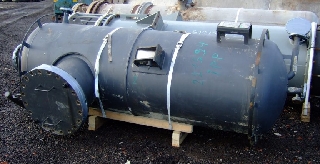

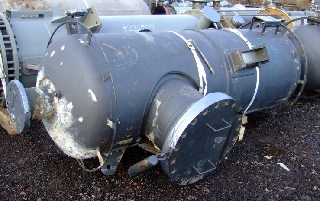

Type: Tank

Manufacturer: FIB Apparatenbouw BV

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 1,340 L (354 gallons)

Orientation: Vertical

• design pressure internal 7 bar + FV @ 200 degrees C,
• jacket 12.8 + FV @ 200 degrees C (300 liter)

Diameter: 834 mm (32.8 in). Straight-side Length: 2,400 mm (94.5 in). Internal Pressure: 7 bar (102 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Standard. Jacket Material: Stainless Steel 304. Jacket Pressure: 12.8 bar (186 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Lugs.
