Name: Stainless Steel 316 JENS OLSEN Nutsche Filter
Brand: JENS OLSEN
SKU: 706725

Type:

Filter

Subtype:

Nutsche

Manufacturer:

JENS OLSEN

Condition:

Used

Material:

Stainless Steel 316

Filtration Area:

2.8 m² (29.6 ft²)

Diameter:

1,900 mm (74.8 in)

Orientation:

Vertical

Pressure:

2 bar (29 psi)

Temperature:

134 °C (273.2 °F)

Vacuum:

Yes

Top Head Type:

Dish

Top Head MOC:

Stainless Steel 316

Top Head Fastening:

Welded

Bottom Head Type:

Dish

Bottom Head MOC:

Stainless Steel 316

Bottom Head Fastening:

Bolted

Jacket:

Yes

Jacket Pressure:

2 bar (29 psi)

Jacket Temperature:

134 °C (273.2 °F)

Straight Side Length:

1,000 mm (39.4 in)

Support Details:

filter mounted in (2) 'A' frames

Additional Info:

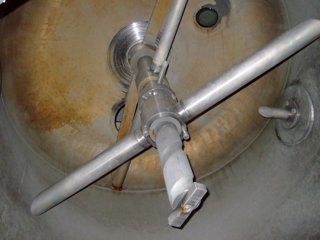

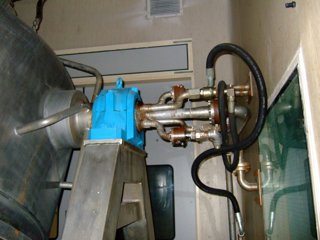

5570 liter jacketed tumbling pressure Nutsche filter internal pressure -1/2 bar @ 50/134 degrees C, jacket -1/2 bar @ 50/134 degrees C (339 liter) with hydraulic open/close assist hydraulic driven raker agitator driven by a hydraulic powerpack the whole filter rotates for discharge via a hydraulic motor driven by the same powerpack

Stainless Steel 316 JENS OLSEN Nutsche Filter - IPP# 706725
