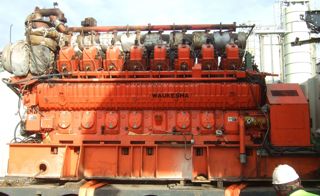

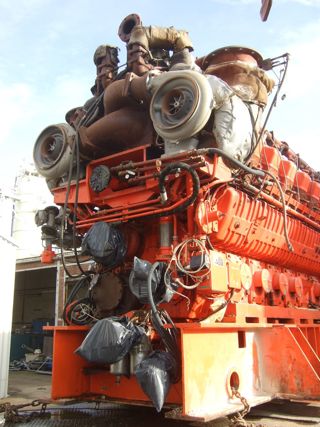

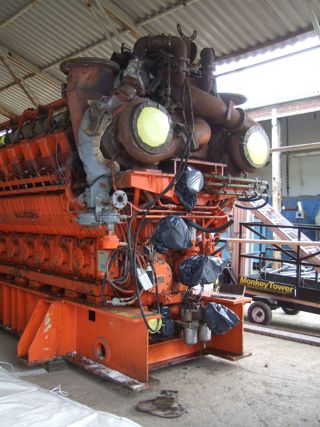

gas fired combined heat and power system, system includes: 5000 kg/hr Cochran single pass waste heat recovery boiler, max continuous 5010kg/hr, serial #95/2766, manufactured by Cochran Boilers Limited,design pressure 13 barg, inlet temperature 430 degrees C, design saturated steam temperature 188 degrees C (@ 10.5 barg), safety valve setting 11.55 barg, heat transfer duty 2934 +- 15%, specific garavity/density 0.95 kg/m3, specific heat 1.00 kCal/kg.C, approximate boiler dimensions 2630mm diameter x 6m long, boiler an with economiser, manufactured by Flametec ltd, serial #35690/04068, design pressure 20 barg @ 160 degrees C, 2 x 3360.8 Kw (4201 kVA) gas engine driven electrical generator, engine manufactured by Waukesha (Dresser), model #16VAT27GL, serial #C-80859/1 & C-80859/2, SAA #2000-168, natural gas fired, continuous, comp ratio 9/1, min.WKI 91, ignition timing (BTDC) 11-02, service 4650 HP (3469 Kw), altitude limit 500 feet (152 meter), governed speed 1000 rpm, 0.80mm valve intake & exhaust clearance, firing order 1R-1L-4R-4L-7R-7L-6R-6L-8R-8L-5R-5L-2R-2L-3R-3L, AC generator (alternator) manufactured by Leroy Somer, type LSA-56-BM65-6P, serial #167056-2, IP 23, 3360.8 Kw, 4201 kVA power rating, 11000 volt, 220.5 Amp, 3 phase, 50 Hz, 1000 rpm, excitation AREP, all mounted on a carbon steel skid oil lubrication, cooling water system, MCC control panels, some ductwork, process description: natural gas is used to fuel two gas engine powered generator sets that provide electrical power to the site, with the ability to export surplus power to the grid, heat extraction from the exhaust gases is used within the heat recovery system to heat the boiler feed water to the steam boiler, which provides steam to the plant steam main, excess heat from each engines jacket water cooling system and intercooler cooling system is removed and dispersed to atmosphere by the heat dump radiators, the intercooler cooling system is used to provide cooling to the engine lubricating oil system, valves are provided on the jacket water cooling, and lubricating oil systems to enable future connections to a second heat recovery system
Type: Power Generator
Manufacturer: Waukesha
Model: 16VAT27GL
Condition: Used
Material: Carbon Steel
Capacity: 3.4 MW
Amperage: 220.5 amp

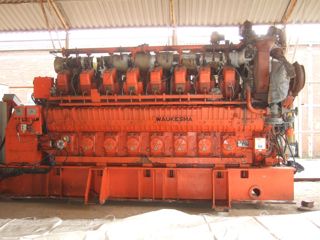

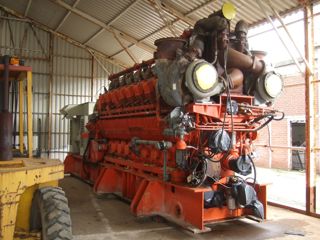

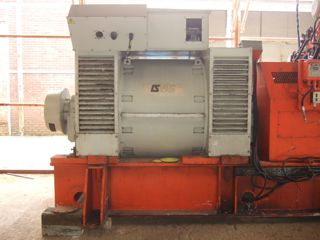

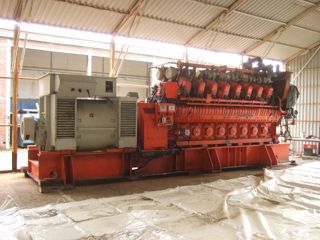

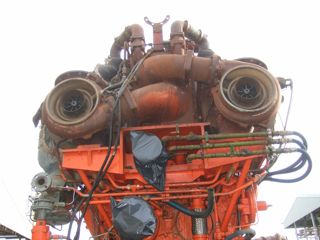

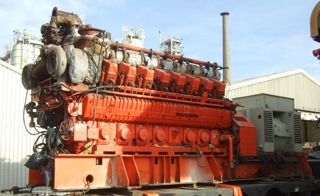

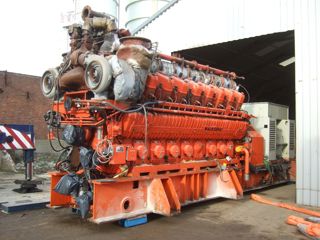

SAA #2000-168, natural gas fired, continuous, comp ratio 9/1, min.WKI 91, ignition timing (BTDC) 11-02, service 4650 HP (3469 Kw), altitude limit 500 feet (152 meter), governed speed 1000 rpm, 0.80mm valve intake & exhaust clearance, firing order 1R-1L-4R-4L-7R-7L-6R-6L-8R-8L-5R-5L-2R-2L-3R-3L, AC generator (alternator) manufactured by Leroy Somer, type LSA-56-BM65-6P, serial #167056-2, IP 23, 3360.8 Kw, 4201 kVA power rating, 11000 volt, 220.5 Amp, 3 phase, 50 Hz, 1000 rpm, excitation AREP, all mounted on a carbon steel skid.
Voltage: 11,000. Cycle: 50. Phase: 3. Operational Hours: 34,000. Fuel Type: Natural Gas. Powered By: Engine.
Type: Power Generator
Manufacturer: Waukesha
Model: 16VAT27GL
Condition: Used
Capacity: 3.4 MW
Amperage: 220.5 amp
SAA #2000-168, natural gas fired, continuous, comp ratio 9/1, min.WKI 91, ignition timing (BTDC) 11-02, service 4650 HP (3469 Kw), altitude limit 500 feet (152 meter), governed speed 1000 rpm, 0.80mm valve intake & exhaust clearance, firing order 1R-1L-4R-4L-7R-7L-6R-6L-8R-8L-5R-5L-2R-2L-3R-3L, AC generator (alternator) manufactured by Leroy Somer, type LSA-56-BM65-6P, serial #167056-2, IP 23, 3360.8 Kw, 4201 kVA power rating, 11000 volt, 220.5 Amp, 3 phase, 50 Hz, 1000 rpm, excitation AREP, all mounted on a carbon steel skid
Voltage: 11,000. Cycle: 50. Phase: 3. Operational Hours: 34,000. Drive Power: 3,361 kW (4,507 HP). Fuel Type: Natural Gas. Powered By: Electric.
Type: Power Generator
Manufacturer: Kato
Model: A261820000
Condition: Used
Material: Carbon Steel
Capacity: 0.28 MW
Amperage: 428.5 amp
Skid mounted turbine generator package
This set is designed to recover the work available in high pressure steam that would normally be lost when the steam passes through a pressure reducing valve
The system consists of a backpressure steam turbine driving a synchronous generator mounted on a skid
The control system automatically controls the flow of the steam through the turbine, thereby controlling the pressure in the low pressure header.
The major components are as follows:
Turbine by Coppus Engineering, Model # RLHA-19, Serial # 94H9489. This is a single-stage, impulse type turbine. Capable of delivering 404 HP at 3600 rpm, designed for 23,075 lbs. /hr, of dry saturated steam at 210 psi.
Generator is manufactured by Kato, and is high efficiency design, synchronous, and brushless, and revolving field style ; Type: 26182
Operating at 3600 rpm, delivering 480 volt, 3 ph, 60 Hz, 283 kW of output. Alternator kW continuous, 285, 60 Hz, 277/480v, 428.5 amps. Exciter Arm "C" # 3007-10, Exciter Field "C" # 18058-10. The control panel and circuit breaker handle synchronization, metering, protection and other functions.
Voltage: 480. Cycle: 60. Phase: 3. Drive Power: . Powered By: Steam. Controls: Yes.
Type: Power Generator
Manufacturer: Elliott
Model: BYRH-UG
Condition: Used
Material: Carbon Steel
Capacity: 1.01 MW
Amperage: 163 amp

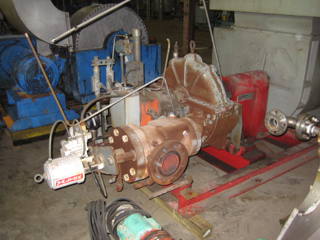

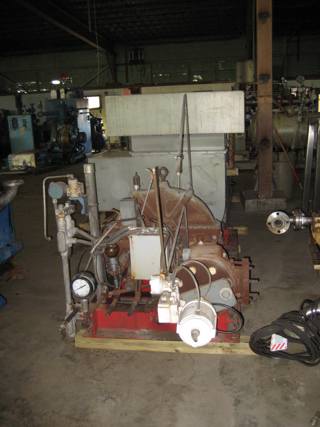

Elliott steam turbine generator set with Elliott turbines Single stage back pressure style units. We believe this unit has zero run hours since the overhaul. Engine, gearbox and generator are mounted in a common skid. Rated Power - 1350HP/1007kW; Rated Turbine Speed - 5750 RPM; Rated Inlet Steam Pressure - Gauge - 599 PSI; Rated Steam Temperature - 750 Deg F; Rated Exhaust Pressure - 155 PSI. Gear Drive is a model # C4 R4, Serial # B102145C-G2, Rated power 1350, Service factor 1.66, High speed shaft;5750, Low speed shaft;1815 , Tag # 802654 C4 2625. Alternater is built by BBC (Brown Boveri) Serial # C36-A076-101, Drive end bearing 6322/C3, opposite drive end bearing 6320/C3. Time rated continuous; Frame # 717, enclosure is drip proof; rated ambient temp. 40 degrees C. With twin Amtek oil coolers and 1.5 hp oil pump.
Voltage: 4,160. Cycle: 60. Phase: 3. Drive Power: 1,007 kW (1,350 HP). Power Transmission: Gear. Powered By: Steam. Controls: Yes.
