Biplex cross flow separator mill. Type Biplex Gravity feed with 6" diameter rotolock UL label. Feeder belt was driven by 1/4 HP, 3/50/380 volt motor (motor required) , UL label. Max mill rpm 3350, min mill rpm 2800.
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Alpine (Hosokawa)
Model: 8630S
Condition: Used
Material: Carbon Steel
Motor Power (Design): 11.2 kW (15 HP)
Speed (RPM): 2,500

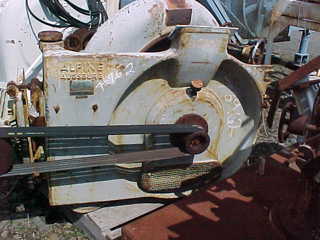

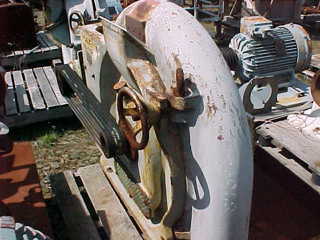

15HP CS Alpine pin mill, 2500 rpm rotor Hinged front door. Mill is designed for belt drive. No motor w/unit.
Orientation: Vertical.
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Alpine (Hosokawa)
Model: A400CW
Condition: Used
Material: Carbon Steel
Inlet Diameter: 152.4 mm (6 in)
Motor Power (Design): 29.8 kW (40 HP)

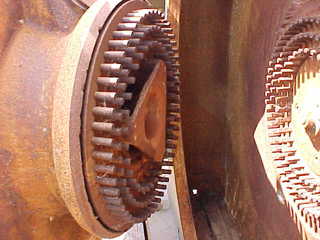

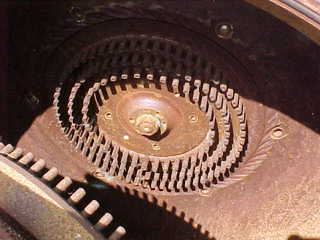

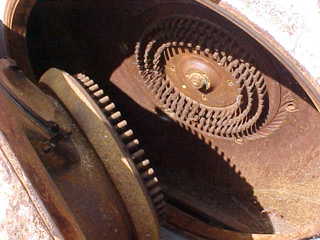

Contraplex CS impact stud mill. 10mm dia x 46mm long high CS pins 3/50/380/660 volt UL label. Door rotor belt driven by 14 HP (11 KW), 3/50/380/660 volt, 1440 rpm motor, UL label. Housing rotor has (3) rows, (143) pins. Pin disc max 8400 rpm. Door pin disc (3) rows, (134) pins, max 4500 rpm. Pins on mill and door are 1 1/8".
Speed (RPM): 8,400. Orientation: Vertical.
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Alpine (Hosokawa)
Model: Multiplex 315 UPZ
Condition: Used
Material: Stainless Steel 304
Capacity: 11 m3 (388.5 ft3)
Outlet Discharge Diameter: 156.5 mm (6.2 in)
rated: 11 DCuM, 0.05 bar, 60°C., 10 bar overpressure stud disc diameter: 315 mm, plate beater: 298 mm, swing beater: 298mm, air inlet: DN 100 mm
Inlet Diameter: 150 mm (5.9 in). Motor Power (Design): 22 kW (29.5 HP). Orientation: Horizontal. Pressure: 0.05 bar (0.73 psi). Temperature: 60 °C (140 °F).
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Alpine (Hosokawa)
Model: 710-CW
Condition: Used
Material: Stainless Steel 321
Motor Power (Design): 48 kW (64.4 HP)
Orientation: Horizontal
48 kw contraplex wide chamber impact pin mill with 2-driven counter rotating pin discs throughput 1.2 ton/hour housing disc belt driven by 48kw, 3/50/660 volt, 1480/2800 rpm Ex II T3 motor, front door disc belt driven by 36/49kw, 3/50/660 volt, 1150/1550 rpm Ex II T3 motor, hinged front door,
Temperature: 60 °C (140 °F).
