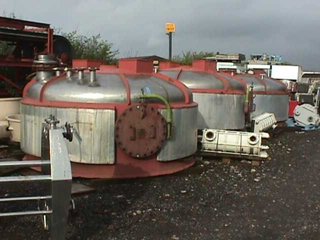

5.9 m² (64 ft²) Stainless Steel 316 Rosenmund and Cogiem Filter For Sale IPP# 92661

IPP# 92661, 5.9 m² (64 ft²) Stainless Steel 316 Rosenmund and Cogiem Filter For Sale

Condition:

Used

Material:

Stainless Steel 316

Manufacturer:

Bertrams (Basel)

Filtration Area:

5.9 m² (64 ft²)

Diameter:

2,741 mm (107.9 in)

Pressure:

2 bar (29 psi)

Overall Length:

990 mm (39 in)

Top Head Type:

Dish

Top Head Fastening:

Welded

Bottom Head Type:

Flat

Bottom Head Fastening:

Welded

Jacket:

Yes

Jacket Type:

Internal Pipe Coil

Jacket Pressure:

6 bar (87 psi)

Motor Hertz:

Motor Power:

9.3 kW (12.5 HP)

Motor Speed (RPM):

1,450

Motor Voltage:

500

Nozzle Schedule:

Openings: top 1-24" (600mm) manway, 1-9" (228mm), 1-5" (126mm) sight glass, 4-3" (75mm), 1-2" (50mm); str side 1-24" (600mm) manway (cover has davit), 1-6" (152mm), 1-4" (100mm); jkt 3-1" (100mm), 1-1/2" (12mm). Base mounted. Unit designed for brick type stone (none with unit).

Additional Info:

316 stainless steel agitated jacketed pressure Nutsche filter Filter volume 7200 liters Drive manufactured by Von Roll, Type CRG5 Hydraulic racker lift driven by 0.75 HP, 3/50/500 volt, 1450 rpm motor. Packing gland on shaft
