belt flaker 16' long drying section
Type: Dryer-Flaker Drum and Belt
Manufacturer: North American Process Systems
Model: N-86-639
Condition: Used
Material: Stainless Steel 316
Flaker Width: 1,200 mm (47.2 in)
For Belt: Length of Flaker: 2,000 mm (78.7 in)
Pharmaceutical grade Top of belt is steam heated bottom is chilled water cooled variable speed, 0.75 kW 3/50/220/380V System equipped with SIHI cooling water vacuum pump driven by 2.5 kW 3/50/380V, 1430 RPM motor.
Area of Flaker: 2.4 m² (25.8 ft²). Orientation: Horizontal. Single Belt or Double Belt ?: Single.
Type: Dryer-Flaker Drum and Belt
Manufacturer: Steel Belt Systems
Condition: Used
Material: Stainless Steel 304
Flaker Width: 609.6 mm (24 in)
For Belt: Length of Flaker: 4,267 mm (168 in)
(2) 20” wide water cooled Rolls are driven by a varispeed drive, one roll is 7" diameter, the other is 16" diameter Material drops onto a stainless steel water cooled belt (similar to a Sandvick). With lump breaker on the discharge end of belt to break up cooled product
Area of Flaker: 2.6 m² (28 ft²). Orientation: Inclined. Single Belt or Double Belt ?: Single.
Type: Dryer-Flaker Drum and Belt
Manufacturer: Gunter Stenger
Condition: Used
Material: Stainless Steel 304
Flaker Width: 609.6 mm (24 in)
For Belt: Length of Flaker: 4,267 mm (168 in)
with (2) 20” wide water cooled chrome plated calender rolls on the belt feed end to smooth out the hot product dropping onto the chill belt Rolls are driven by a varispeed drive, one roll is 7" diameter, the other is 16" diameter Material drops onto a stainless steel water cooled belt (similar to a Sandvick). With lump breaker on the discharge end of belt to break up cooled product Chipped product drops into a 6" SS rotary airlock valve then is pneumatically conveyed to a pre-breaker.
Area of Flaker: 2.6 m² (28 ft²). Orientation: Inclined. Single Belt or Double Belt ?: Single.
Type: Dryer-Flaker Drum and Belt
Manufacturer: Steel Belt Systems
Condition: Used
Material: Stainless Steel 304
Flaker Width: 1,500 mm (59.1 in)
For Belt: Length of Flaker: 18,000 mm (708.7 in)

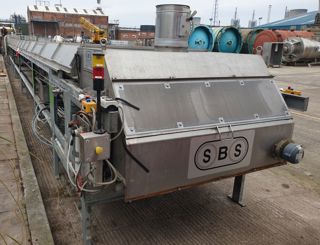

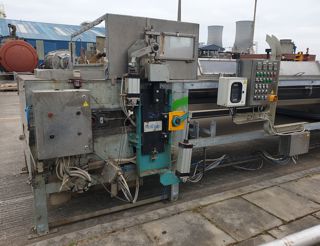

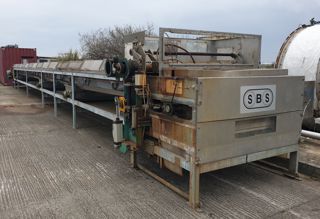

approx 28.8 square meter 301 (NICRO 12.1)/304 stainless steel enclosed horizontal belt flaker with Pastillator 1.5m wide x 18000mm cooling length 301 (NICRO 12.1) stainless steel belt 19250mm belt length between center of rolls 38500mm total length of belt 1mm belt thickness, (3) cooling zones, zone 1 = 5.5m long (3 bar @ 5-9 degrees C), zone 2 = 6m long (3 bar @ 5-9 degrees C), zone 3 = 6.5m long (3 bar @ 5-9 degrees C), (179) plastic cooling nozzles, (2) 800mm wide 304 stainless steel drums belt enclosed in a 304 stainless steel housing, pneumatic operated belt tensioner, belt with bakelized fiber scraper blades (1) 120mm diameter x 1.4m wide 304 stainless steel RollDrop pastillator for distributing the liquid drops onto the cooling belt, 8mm toothed rotor pitch, type 3 x 1mm, comb material TEKAPEEK, 105 degrees C Pastillator with pneumatic operated raise/lower mechanism, belt with pneumatic operated knife discharge with a brass blade, 304 stainless steel water trays, built on controls, Thermo Scientific model MINI-11-101F weight integrator, emergency stop button and pull cord, all mounted on a Galvanised carbon steel frame, approx 20600mm total length of flaker, (1) discharge belt conveyor, Pastillator description: The product is fed at controlled temperature onto a roller rotor, whose rim is designed with teeth having regular shape and pitch. The liquid product slips constantly between the teeth pattern; drops are gathering on the back of every tooth, thanks to the complementary comb in touch with the toothed rotor. The formed drops are then deposited on the cooled steel belt, thanks to the centrifugal and gravitational force, generating simultaneously pastilles form.
Area of Flaker: 28.8 m² (310 ft²). Orientation: Horizontal. Single Belt or Double Belt ?: Single. Flaker Feed Type: Standard Drop Pastillator. Number of Cooling Zones for Belt: 3. Nozzles per Cooling Zone: 60. Scraper: Yes. Scraper Details: bakelized fiber.
