IPP# 216001, 771,107 kcal/h (255 Ref. Ton) Low Temp Chiller For Sale

Condition:

Used

Manufacturer:

Trane

Capacity Design:

771,107 kcal/h (255 Ref. Ton)

Pressure:

20.7 bar (300 psi)

Product Flow Rate:

98.4 m3/h (428 GPM)

Refrigerant Type:

R-22

Temperature:

-3.9 °C (25 °F)

Controls:

Yes

Height:

2,134 mm (84 in)

Length:

3,480 mm (137 in)

Width:

1,321 mm (52 in)

Motor Hertz:

Motor Power:

197 kW (264.2 HP)

Motor Voltage:

460

Additional Info:

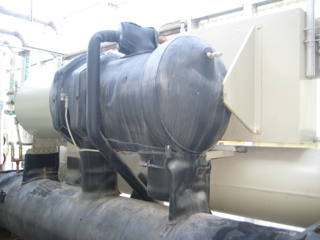

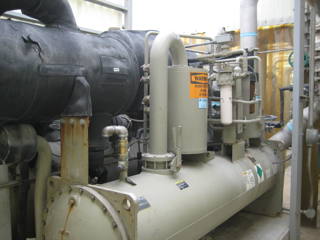

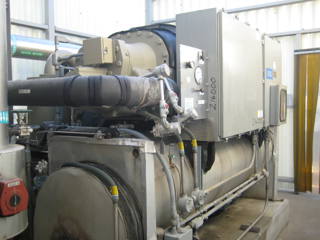

CentraVac Low temperture Series R chiller Requires 705 lbs. inlet at 33.8 degrees F, and outlet at 25 degrees F. (4 pass)

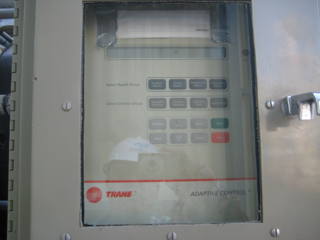

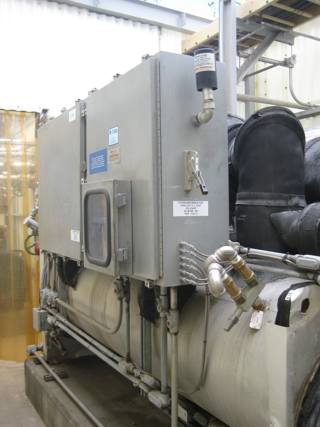

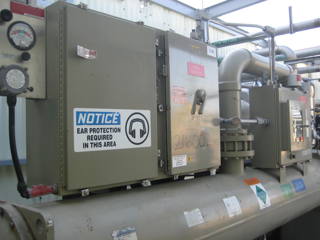

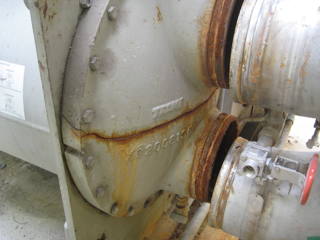

Condenser NB # 4401, serial # 44010, built in 1996, rated for 300 psi at 300 degrees F.( 2 pass design) Low tempreture unit capable of obtaining a range of 39-20 degrees F. 6 inch connections process & water side. Electronic controls, rated for explosion proof atmosphere.
