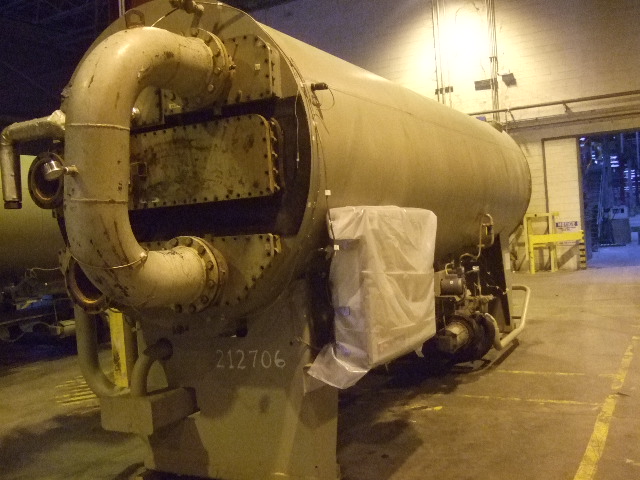

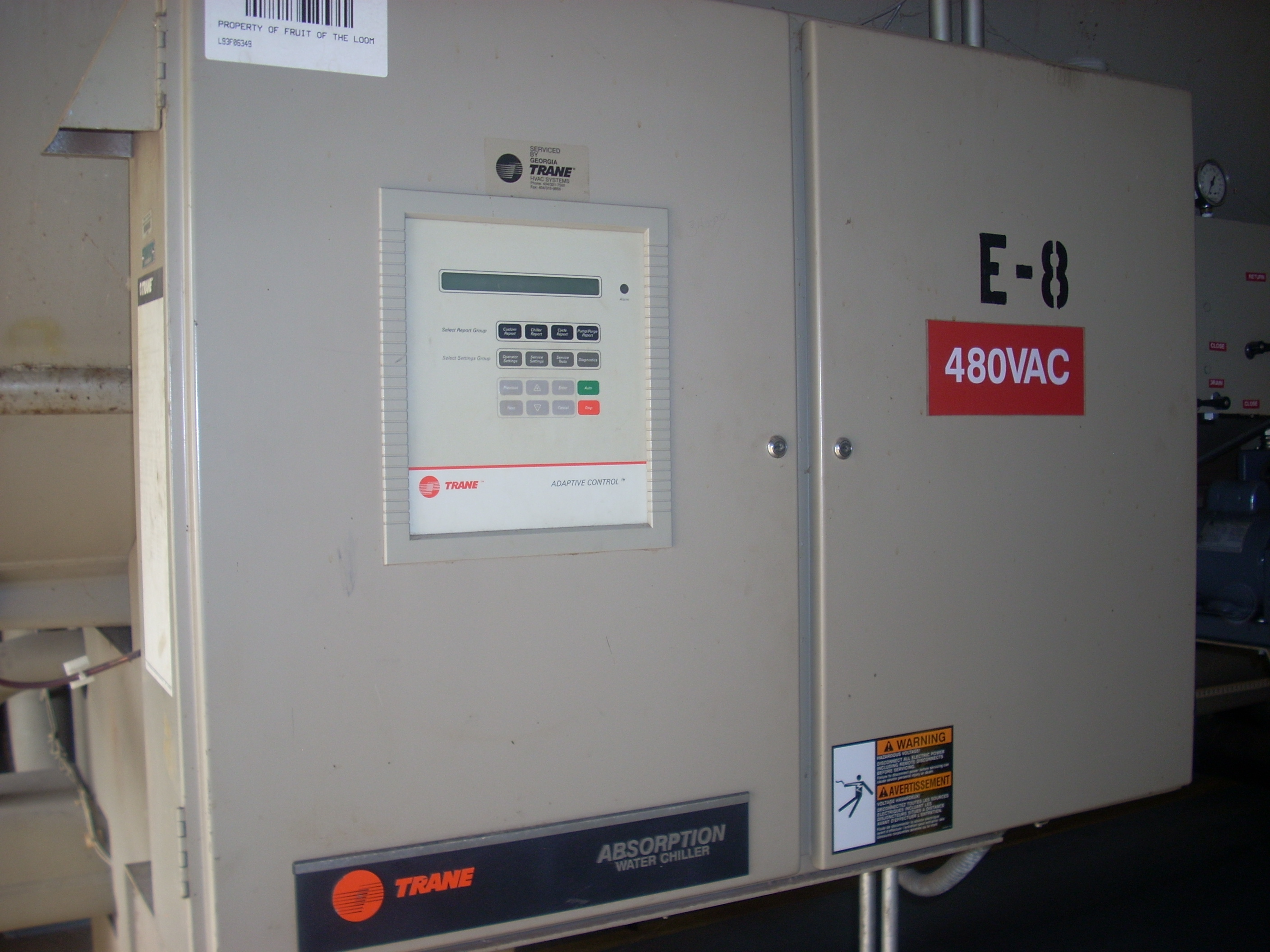

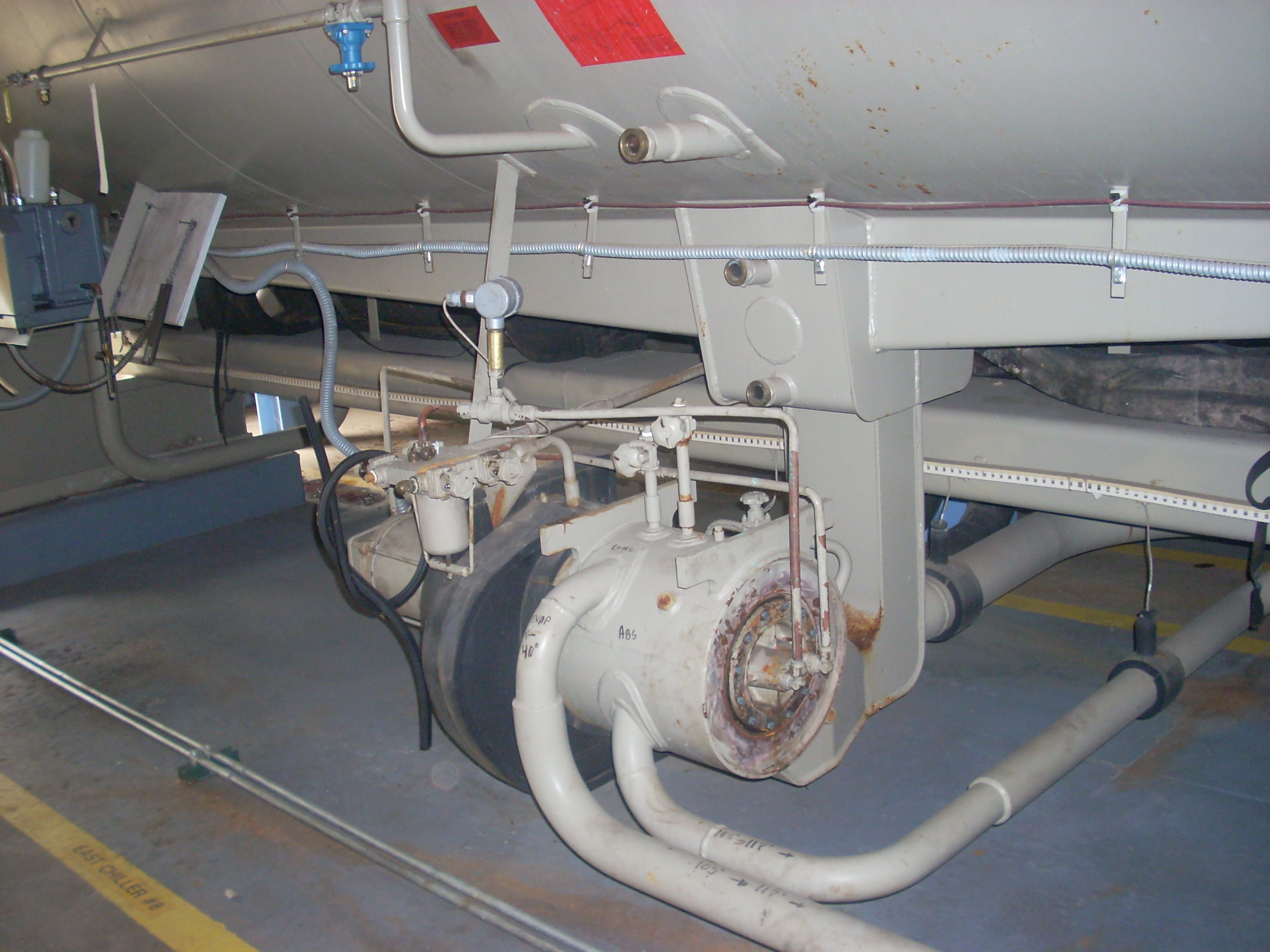

Absorption Chiller single stage Operates on Nominal 12 psig steam or Nominal 270 degrees F hot water. These chillers use 18 pph of low pressure steam per ton of cooling.(13,500 pph of 9-12 psi steam) Utility rate is controlled by the leaving chilled water set point. These absorption chillers use water as the refrigerant and Lithium Bromide as the absorbent. Both of the items are non- toxic. Main components of the chiller are the generating section, the condenser, the evaporator, and the absorber. Additional components include the heat exchanger, solutions pumps, control valves and electronic microprocessor controls. These models use the Trane single pump system with 3 impellers, 15HP 3/60/460 volt, FLA 12A, max fuse size 45 a, purge pump 1/4 HP, 1/60/115 volt.
Type: Chiller
Subtype: Water Cooled
Manufacturer: Trane
Model: CDHF3000
Condition: Unused
Material: Carbon Steel
Capacity Design: 9,071,850 kcal/h (3,000 Ref. Ton)
Pressure: 1.03 bar (15 psi)
Dual direct drive semi-hermetic centrifugal compressors rated 0.45Kw/ton efficiency. Driven by (1) 893KW (LH Circuit) and (1) 946KW (RH Circuit) motors, 4160V, 60Hz, 3 Phase. Uses low pressure refrigerant to produce low refrigerant emissions. (R-123 Charge- LH 2650 lbs & RH 2650 lbs.) Maximum working pressure is 15 psi on both high and low sides. The condenser and evaporator have high efficiency tubing providing greater surface area. Packaged design with electronic controls employing the latest in technology for energy usage.
Refrigerant Type: R-123. Temperature: 1.11 °C (34 °F).
