600/700mm (~24"/27.5") diameter x 8700mm (~29') high Methanol Recovery column with 600mm diameter x 1850mm length (including carbon steel feet) bottom section, openings bottom: (1) DN50, (1) DN80, openings side wall: (2) DN25, (1) DN50, (1) DN65, (1) DN300, (4) DN80 sight glass, with 600mm diameter x 1850mm length middle section, openings side wall: (4) DN25, (2) DN80 sight glass, with 600/700mm diameter x 440mm length reduction section, openings (1) DN25, (1) DN50, with 700mm diameter x 2000mm length middle section, openings side wall: (4) DN25, (2) DN80 sight glass, with 700mm diameter x 2000mm length top section, openings side wall: (4) DN25, with 700mm diameter x 550mm high top cover, openings (3) DN25, (1) DN32, (1) DN250, including (1) 700mm diameter sieve ring, (1) 600mm diameter sieve ring, (2) 600mm diameter parts
Type: Column
Subtype: Packed
Condition: Used
Material: Stainless Steel Other
Diameter (1): 304.8 mm (12 in)
Pressure: 8.6 bar (125 psi)

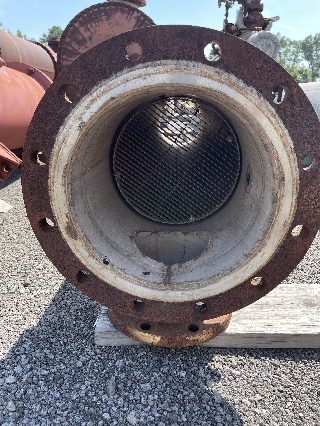

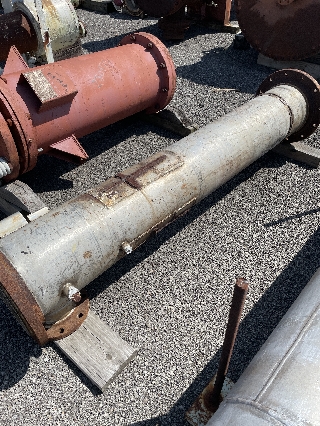

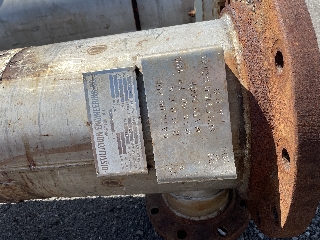

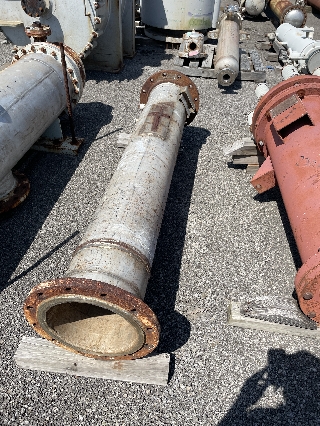

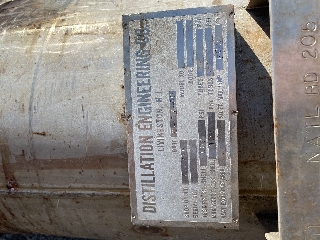

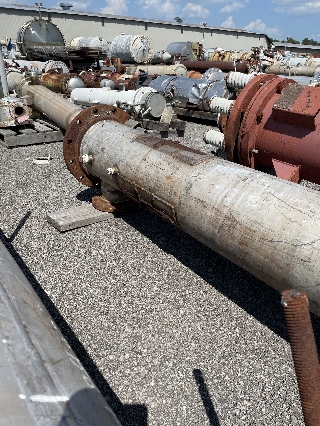

12" diameter column system , engineered by Distillation Engineering Co. Designed to bolt onto the top of a reactor with a 750-1000 gallon capacity. (depending on the chemical service) The system consists of the following parts. First a 12" x 80" SS packed column, second a top mounted re-boiler, and third a reflux tank. The column section is 12" diameter x 80" overall length. 316 SS, NB # 205, rated for FV/125 psi at 500 degrees F. Manufactured by Roben. With a packing support 10" from the bottom of the column. Estimated packed capacity is 5 ft.3. The U-Tube condenser is top mounted to the column. It is 163 ft.2, The shell is 316 SS, the tubes are 316 SS, the tube sheets are 316 SS, the heads are CS. NB # 4892. The shell is rated for FV/150 psi at 450 degrees F. The tubes are rated for 100 psi at 450 degrees F. It is manufactured by Roben, serial # 81034. It is 18" diameter x 107" overall length. Four pass shell side and Two pass tube side. 104 "U" tubes, 3/4" diameter x 16 gauge. With a 12" shell nozzle, and 3" tube nozzles. The reflux/receiver tank has a 90 Gallon capacity and is manufactured from 316 SS material. It is orientated vertically. The NB # is 275, it is rated for FV/35 psi at 650 degrees F. Manufactured by Cream City Boiler, serial # D-72-54G. The dimensions of the vessel are 24" diameter x43" straight side,
Type: Column
Subtype: Packed
Manufacturer: GH Hicks
Condition: Used
Material: Stainless Steel Other
Diameter (1): 457.2 mm (18 in)
Length (overall): 9,144 mm (360 in)
CS skirt. Rated for 15/FV Liquid outlet is 2", sides of column have seven one inch NPT nipples.
Pressure: 1.03 bar (15 psi). Vacuum: Yes. Temperature: 148.9 °C (300 °F).
Type: Column
Subtype: Packed
Manufacturer: GIG
Condition: Used
Material: Stainless Steel Other
Diameter (1): 800 mm (31.5 in)
rectification/distillation column
