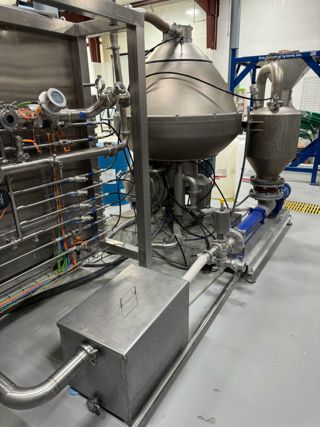

S1657
with control system
With Clean In Place with an Ra0.8 finish.
Variable discharge system with water cooled jacket
Maximum feed density 1100 kg/m3,
maximum sediment density 1400 kg/m3.
Feed temperature 0-100 degrees C.

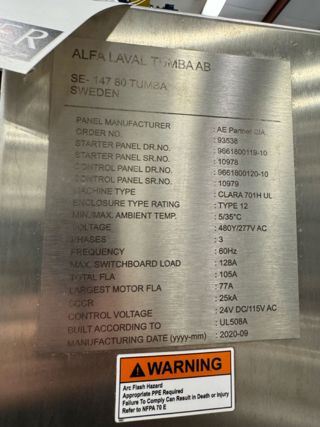

With NEMA style Stainless steel control panel with Allen Bradly Panel View Plus HMI and Powerflex 753- VFD for drive motor.

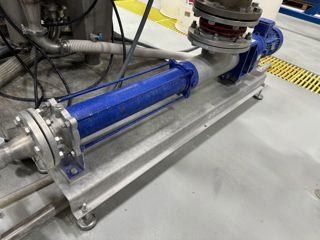

With solids receiving screw pump, manufactured by Netzsch Screw Press. Type NEMO-model NM053BY02512B, Rated for 3-5 m3/H, 6-8 bar, with a 4kw drive.
Type: Centrifuge-Disc Bowl
Manufacturer: Alfa Laval
Model: CLARA 701H HSS
Condition: Used
Material: Stainless Steel Austenitic
Motor Horsepower: 37 kW (49.6 HP)
Inlet Diameter: 220 mm (8.7 in)
S1657 with control system With Clean In Place with an Ra0.8 finish Variable discharge system with water cooled jacket Maximum feed density 1100 kg/m3, maximum sediment density 1400 kg/m3. Feed temperature 0-100 degrees C. With NEMA style Stainless steel control panel with Allen Bradly Panel View Plus HMI and Powerflex 753- VFD for drive motor With solids receiving screw pump, manufactured by Netzsch Screw Press. Type NEMO-model NM053BY02512B, Rated for 3-5 m3/H, 6-8 bar, with a 4kw drive.
Bowl Volume: 66 L (17.4 gallons). Clean In Place: Yes. Controls: Yes. RPM Maximum: 4,800.
Type: Centrifuge-Disc Bowl
Manufacturer: Alfa Laval
Model: BRPX 213S-34
Condition: Used
Material: Stainless Steel 316
Motor Horsepower: 18.5 kW (24.8 HP)
With tools
Type: Centrifuge-Disc Bowl
Manufacturer: Alfa Laval
Model: CHPX 510 SGD-35CGRX
Condition: Unused
Material: Stainless Steel 316
Motor Horsepower: 22 kW (29.5 HP)
Bowl Diameter: 405 mm (15.9 in)
seperator (clarifier) centrifuge Product # 88185-01-01 max. density of feed 1100 kg/m3 Max. density of sediment, 1238 kg.m3 Max density of operating liquid, 1000 kg/m3 Max operating temp. 100 degrees C Intermittent discharge of sediment Bowl size 10 Complete with motor, inlet & outlet housing, centrifugal pump/pairing disk, water harness, Manuals, inlet/outlet flowmeters and controls
Inlet Diameter: 35.5 mm (1.4 in). Bowl Volume: 16 L (4.2 gallons). Controls: Yes. RPM Maximum: 6,236.
Type: Centrifuge-Disc Bowl
Manufacturer: Alfa Laval
Model: WHPX405-TGD-24-60
Condition: Used
Material: Stainless Steel Other
Motor Horsepower: 3.7 kW (5 HP)
Controls: Yes
3-phase separator design with fixed paring disc on both liquid phases Bronze top disc, pump chamber and locking ring Timer initiated partial discharge (dosing ring) of solids purifier disc stack 5 HP flange mount motor
Number of Phases: 3.
