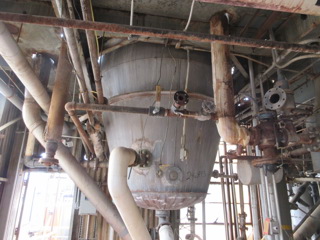

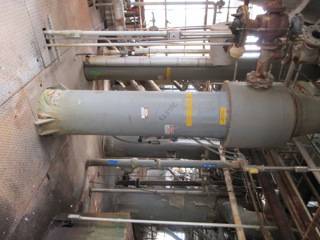

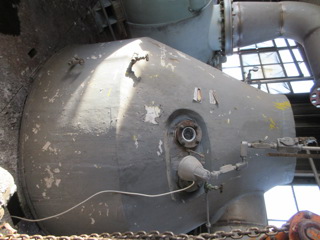

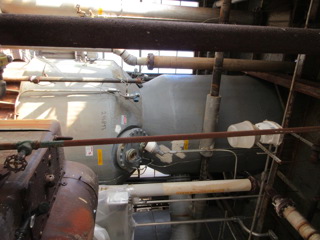

IPP# 246742, 1,771 kg/h (3,905 lb/h) Stainless Steel 304 Crystalizer/Evaporator Evaporator For Sale
Add To Quote
Condition:
Used
Material:
Stainless Steel 304
Evaporation Rate:
1,771 kg/h (3,905 lb/h)
Total Heat Transfer Surface Area:
72.6 m² (781 ft²)
Diameter:
2,743 mm (108 in)
Height:
3,353 mm (132 in)
Orientation:
Vertical
Pressure:
0.97 bar (14 psi)
Temperature:
121.1 °C (250 °F)
Jacket Type:
Standard
Support Details:
Mounted on lugs
Support Type:
Lugs
Top Head type:
Dish
Top Head Fastening:
Welded
Bottom Head Type:
Cone
Bottom Head Fastening:
Welded
Mechanical Seal on Shaft:
Yes
Drive Type:
Lightnin 16Q7.5
Drive Motor HP:
2.2 kW (3 HP)
Drive Motor RPM:
880
Drive Motor Voltage:
460
Electrical Phase:
3
Drive Motor Hertz:
60
Agitation:
Yes
Agitator Seal Type:
Mechanical
Drive Make:
Lightnin
Drive Model:
16Q7.5
Internal Coil or Jacket Pressure:
3.4 bar (50 psi)
Capacity in Gallons:
21,577 L (5,700 gallons)
Additional Info:
Mixer is driving a two tier 3 blade 316SS agitator. Four full length welded side wall baffles.
