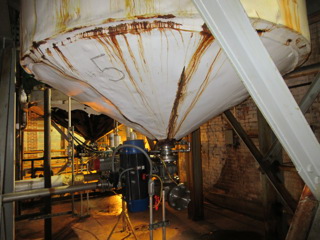

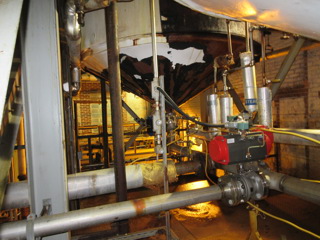

Stainless Steel 304 Struthers Wells Inc. Crystalizer/Evaporator Evaporator - IPP# 246893

Type: Evaporator

Subtype: Crystalizer/Evaporator

Condition: Used

Material: Stainless Steel 304

Evaporation Rate: 1,771 kg/h (3,905 lb/h)

Total Heat Transfer Surface Area: 72.6 m² (781 ft²)

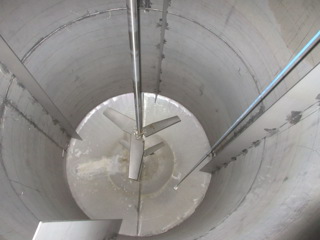

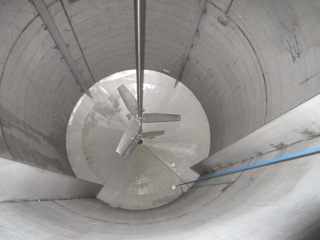

Mixer is driving a two tier 3 blade 316SS agitator. Four full length welded side wall baffles.

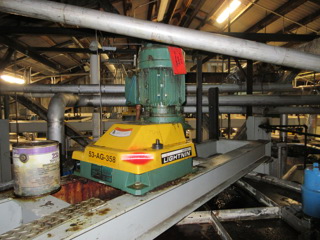

Orientation: Vertical. Diameter: 2,743 mm (108 in). Height: 3,353 mm (132 in). Pressure: 0.97 bar (14 psi). Temperature: 121.1 °C (250 °F). Mechanical Seal on Shaft: Yes. Drive Type: Lightnin 16Q7.5. Agitation: Yes. Agitator Seal Type: Mechanical. Internal Coil or Jacket Pressure: 3.4 bar (50 psi). Capacity in Gallons: 21,577 L (5,700 gallons).

Type: Evaporator

Subtype: Crystalizer/Evaporator

Condition: Used

Material: Stainless Steel 304

Evaporation Rate: 1,771 kg/h (3,905 lb/h)

Total Heat Transfer Surface Area: 72.6 m² (781 ft²)

Mixer is driving a two tier 3 blade 316SS agitator. Four full length welded side wall baffles.

Orientation: Vertical. Diameter: 2,743 mm (108 in). Height: 3,353 mm (132 in). Pressure: 0.97 bar (14 psi). Temperature: 121.1 °C (250 °F). Mechanical Seal on Shaft: Yes. Drive Type: Lightnin 16Q7.5. Agitation: Yes. Agitator Seal Type: Mechanical. Internal Coil or Jacket Pressure: 3.4 bar (50 psi). Capacity in Gallons: 21,577 L (5,700 gallons).

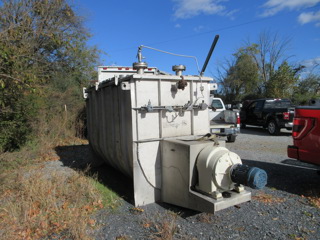

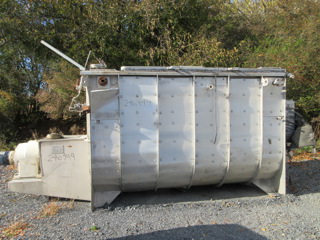

Type: Evaporator

Subtype: Crystalizer/Evaporator

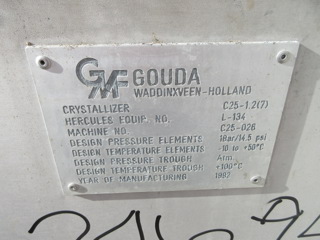

Manufacturer: Gouda

Model: C25-1.2(7),

Condition: Used

Material: Stainless Steel 304

Total Heat Transfer Surface Area: 16.2 m² (174.4 ft²)

Orientation: Horizontal

• Internal plated for crystallizing the product, with wipers driven by the rotating shaft.
• Body OAL(no Motor or shaft) 118" long x 82" high x 60" wide.

Diameter: 1,226 mm (48.3 in). Height: 2,083 mm (82 in). Pressure: 1 bar (14.5 psi). Temperature: 100 °C (212 °F). Drive Type: AC motor through reducer. Agitation: Yes. Agitator Seal Type: Packing. Capacity in Gallons: 3,900 L (1,030 gallons).
