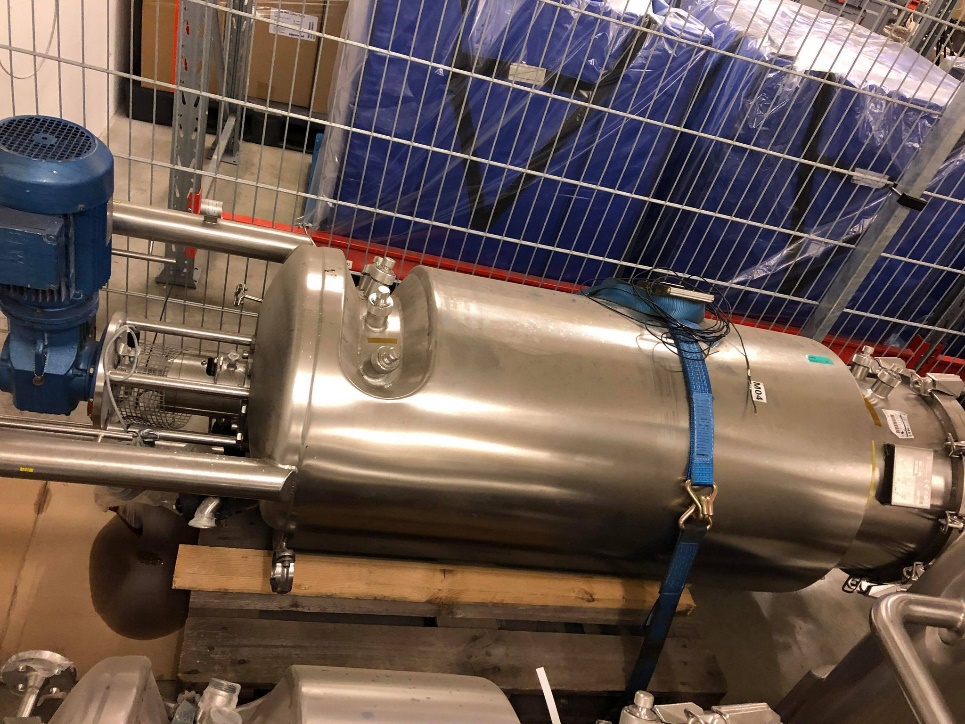

B. Braun + Diessel Biotech GmbH Fermenter - IPP# 247790

Type: Fermenter

Manufacturer: B. Braun + Diessel Biotech GmbH

Model: V20D

Condition: Used

Material: Stainless Steel 316

Capacity: 20 L (5.28 gal)

Agitation: Yes

Stainless steel jacket on straight side only, 4-blade marine agitator, underdriven by 0.25 kw, 3/50/220/380 volt, 2800 rpm motor via gearbox, level glass on straight side,

Diameter: 200 mm (7.87 in). Length: 520 mm (20.5 in). Pressure: 3 bar (43.5 psi). Temperature: 150 °C (302 °F). Vacuum: Yes. Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 150 °C (302 °F).

Type: Fermenter

Manufacturer: B. Braun + Diessel Biotech GmbH

Condition: Used

Material: Stainless Steel 316L

Capacity: 650 L (172 gal)

Agitation: Yes

• Clamps 8x M20-K
• Volume vessel 650 Liter, volume Jacket 48 Liter
• CE0045 confirm
• SEW Eurodrive 5.5kW/50Hz/230-400V/2880rpm, bottom mounted.

Diameter: 850 mm (33.5 in). Length: 1,600 mm (63 in). Jacket: Standard. Orientation: Vertical. Pressure: 3 bar (43.5 psi). Temperature: 130 °C (266 °F). Vacuum: Yes. Jacket MOC: Stainless Steel 304L. Number of Jacket Zones: 1. Jacket Pressure: 4 bar (58 psi). Jacket Temperature: 130 °C (266 °F).

Type: Fermenter

Manufacturer: B. Braun + Diessel Biotech GmbH

Condition: Used

Material: Stainless Steel 316L

Capacity: 650 L (172 gal)

Agitation: Yes

• Clamps 8x M20-K
• Volume vessel 650 Liter, volume Jacket 48 Liter
• CE0045 confirm
• SEW Eurodrive 5.5kW/50Hz/230-400V/2880rpm, bottom mounted.

Diameter: 850 mm (33.5 in). Length: 1,600 mm (63 in). Jacket: Standard. Orientation: Vertical. Pressure: 3 bar (43.5 psi). Temperature: 130 °C (266 °F). Vacuum: Yes. Jacket MOC: Stainless Steel 304L. Number of Jacket Zones: 1. Jacket Pressure: 4 bar (58 psi). Jacket Temperature: 130 °C (266 °F).
