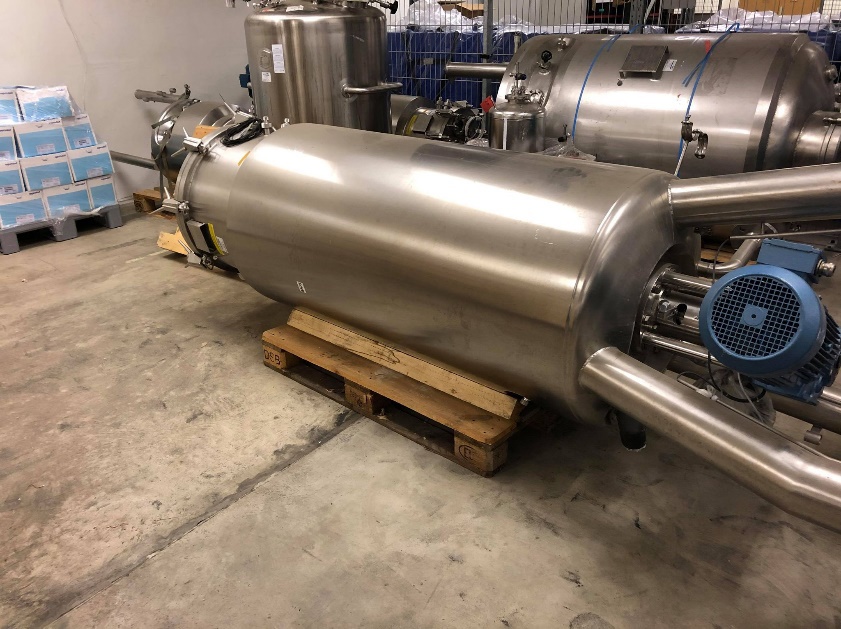

B. Braun + Diessel Bio Fermenter - IPP# 247791

Type: Fermenter

Manufacturer: B. Braun + Diessel Biotech GmbH

Condition: Used

Material: Stainless Steel 316L

Capacity: 650 L (172 gal)

Agitation: Yes

• Clamps 8x M20-K

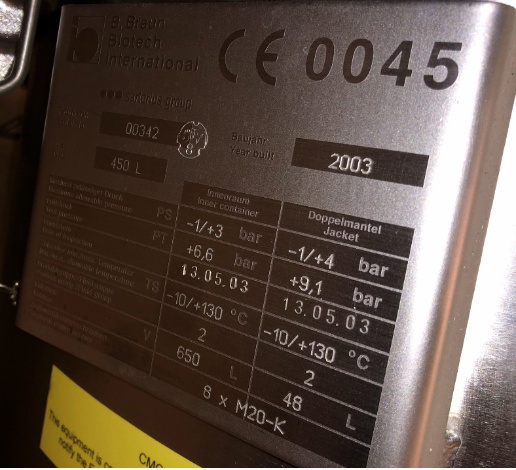

• Volume vessel 650 Liter, volume Jacket 48 Liter
• CE0045 confirm
• SEW Eurodrive 5.5kW/50Hz/230-400V/2880rpm, bottom mounted.

Diameter: 850 mm (33.5 in). Length: 1,600 mm (63 in). Jacket: Standard. Orientation: Vertical. Pressure: 3 bar (43.5 psi). Temperature: 130 °C (266 °F). Vacuum: Yes. Jacket MOC: Stainless Steel 304L. Number of Jacket Zones: 1. Jacket Pressure: 4 bar (58 psi). Jacket Temperature: 130 °C (266 °F).

Type: Fermenter

Manufacturer: B. Braun + Diessel Biotech GmbH

Model: V20D

Condition: Used

Material: Stainless Steel 316

Capacity: 20 L (5.28 gal)

Agitation: Yes

Stainless steel jacket on straight side only, 4-blade marine agitator, underdriven by 0.25 kw, 3/50/220/380 volt, 2800 rpm motor via gearbox, level glass on straight side,

Diameter: 200 mm (7.87 in). Length: 520 mm (20.5 in). Pressure: 3 bar (43.5 psi). Temperature: 150 °C (302 °F). Vacuum: Yes. Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 150 °C (302 °F).

Type: Fermenter

Manufacturer: B. Braun + Diessel Biotech GmbH

Condition: Used

Capacity: 200 L (52.8 gal)

Agitation: Yes

• Clamps 10 x M16-K

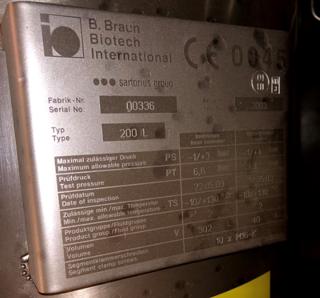

• Vessel volume 302 Liters, Jacket volume 40 Liters

Orientation: Vertical. Pressure: 3 bar (43.5 psi). Temperature: 130 °C (266 °F). Jacket Pressure: 4 bar (58 psi). Jacket Temperature: 130 °C (266 °F).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Precision Stainless

Model: R-3200

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 189 L (50 gallons)

Internal Pressure: 3.45 bar (50 psi)

• Mettler Toledo HMI with Automation Direct Productivity 2000, in a SS NEMA type 4 enclosure (UL Listed).
• Skid includes heat exchangers: 5 Sq. Ft., NB # 79171, manufactured by ITT both sides rated for 150 psi at 375 degrees F. Also included, Allegany Bradford, serial # 8553-21-2 (built 2001) Both sides rated for 100 psi at 300 degrees F.
• Skid includes a vertical recirculation pump manufactured by Grundfos. 7.5 HP with Allen Bradley VFD mounted in a separate NEMA enclosure. (480 V, 3 phase, 60 Hz)
• Designed for product specific Gravity of 1.1
• Estimated weight is for vessel only-Not for skid.

Internal Full Vacuum: Yes. Internal Temperature: 177 °C (350 °F). Jacket Pressure: 6.89 bar (100 psi). Jacket Temperature: 177 °C (350 °F). Jacket Material of Construction: Stainless Steel 304L. Orientation: Vertical. Agitation: Yes. Diameter: 483 mm (19 in). Straight Side Length: 711 mm (28 in). CIP: Yes. Support Type: Skid.
