Stainless Steel 316L Cogeim Filtro 800 FPP FF Nutsche Filter - IPP# 242513

Type: Filter

Subtype: Nutsche

Manufacturer: Cogeim

Model: FPP 800 FF

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,200 mm (126 in)

• design pressure internal 4 bar + full vacuum @ -28.8/185 degrees C (12800 liter),
• jacket 10 bar + full vacuum @ -28.8/185 degrees C (140 liter),
• internals mirror polished to 0.4um Ra,

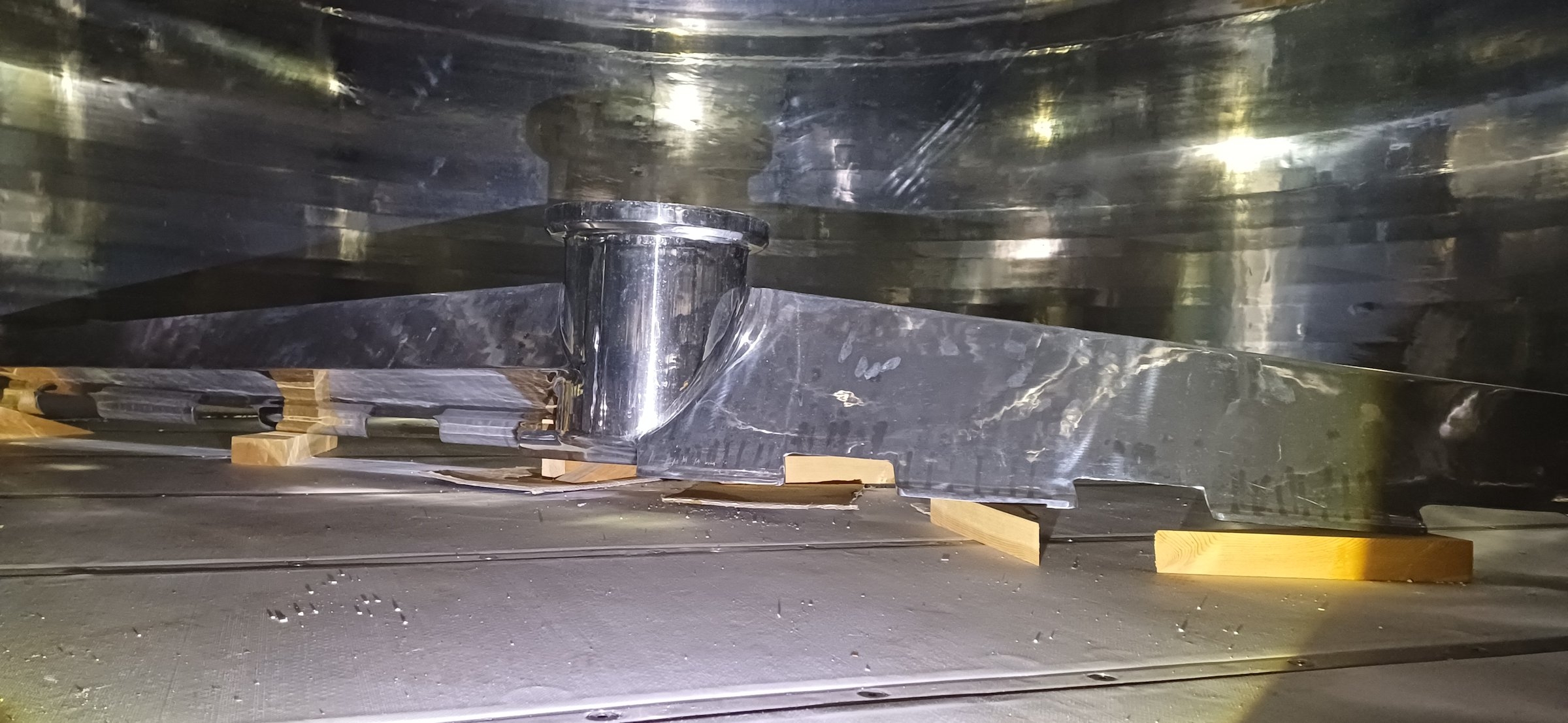

• fixed bed design,
• 3.2m diameter x 1.2m straight side,
• bottom discharges,
• shaft with internal bellows,
• shaft driven by 30kw 3/50/400 volt IP55 EExd IIB T4 motor via a 210:1 ratio reduction gearbox,
• shaft speed 1.43-10.7 rpm,
• mechanical seal with lubricator,
• shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 7.5kw 3/50/400 volt IP55 EExd IIB T4 motor,
• jacket on straight side and bottom filter bed,

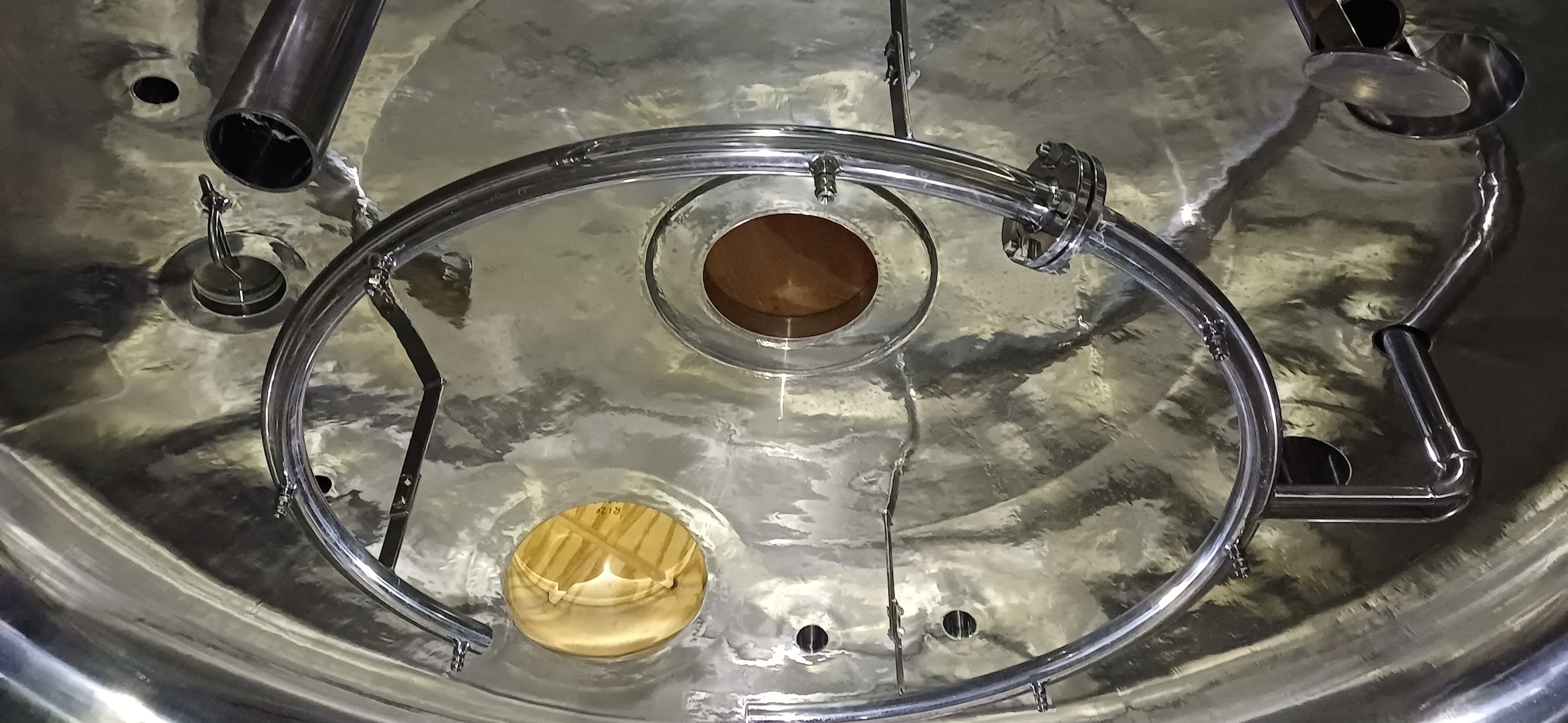

• internal wash ring/spray bar,
• side inspection manway with cover and davit,
• design code: 97/23/CE (supported by ASME VIII DIV 1 Ed 2000),

(1) centrifugal pump, driven by 11/12.5kW 3/50-60/690-400/660-380/415-440 volt, 2936/2929/2942/3526 rpm EEx de IIB T4 B3 ATEX motor,

Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 185 °C (365 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 185 °C (365 °F).

Type: Filter

Subtype: Nutsche

Manufacturer: Cogeim

Model: Filtro 600 FPP FF

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 6 m² (64.6 ft²)

Diameter: 2,800 mm (110.2 in)

• design pressure internal 4 bar + full vacuum @ -28.8/185 degrees C (10000 liter),
• jacket 10 bar + full vacuum @ -28.8/185 degrees C (125 liter),
• CE02 0062,
• internals polished to 0.4um Ra,
• half pipe coil jacket on straight side and bottom,
• filter bed with filter clothe,
• fixed bed design,
• driven by 20/11kw 3/50/400 volt 1470/730 rpm IP55 EEx de IIB T4 motor via 185: 1 ratio gearbox,
• shaft speed 4-8 rpm,
• reversing agitator,
• Flowserve mechanical seal,
• shaft with bellows,
• shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 7.5kw, 3/50/400 volt IP55 EEx d IIB T4 motor, bottom discharge,
• internal wash ring/spray bar,
• side inspection manway with cover and davit,
• mounted on feet with load cells,
• design code: 97/23/CE ASME VIII DIV 1 ED 98 ADD 2000,

(1) 66m3/hr @ 19.74m head 316L stainless steel centrifugal pump, manufactured by HMD Sealless Pumps, type GSI 100x80x160H EA6, serial #PU822864, 180mm diameter impellor, driven by 11/12.5kw, 3/50-60/690-400/660-380/415-440 volt 2936/2929/2942/3526 rpm Eex d IIB T4 ATEX motor, mounted on a baseplate,

Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 185 °C (365 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 185 °C (365 °F). Cake Volume: 10,000 m3 (353,150 ft3).

Type: Filter

Subtype: Nutsche

Manufacturer: Cogeim

Model: FFP 800 FF-S

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,200 mm (126 in)

• design pressure internal 4 bar + full vacuum @ -29/185 degrees C,
• jacket 10 bar + full vacuum @ -29/185 degrees C,
• fixed bed design,
• 5.8-11.8 rpm shaft speed,
• driven by 18/9.9kw 3/50/415 volt 1500-750 rpm EEx de IIB T4 motor via a reduction gearbox,
• reversing agitator for discharging,
• packed gland,
• shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 4kw, 3/50/415 volt 1500 rpm EExd IIB T4 motor,
• 304L stainless steel half pipe coil jacket on straight side,
• carbon steel half pipe coil jacket on filter base,
• side discharge with hydraulic valve,
• slurry outlet with a 100/80mm SCHUF valve,
• internal wash ring/spray bar,
• weld dished top, weld flat bottom,
• 3.2m diameter x 1060mm straight side,
• side inspection manway with cover and davit,
• design code: ASME VIII DIV 1 ED.89 + ADD 90,

system includes

• (1) 340 Nm3/hr 316L stainless steel Apovac PMZK 3817 D3x6 vacuum pump skid, manufactured by Sulzer, skid includes: (1) 340 Nm3/hr 316L stainless steel vacuum pump, manufactured by Sulzer, driven by 37kW, 3/50/415 volt, 975 rpm EEx de IIB T4 motor, (1) 6.7 square meter 316L stainless steel tube and shell heat exchanger (liquid ring cooler), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 10 square meter 316L stainless steel tube and shell heat exchanger (exhaust gas cooler), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 5 square meter 316L stainless steel tube and shell heat exchanger (N2 Heater), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 190 liter 316L stainless steel pressure tank (condensate receiver), manufactured by Kasag, pressure -1/4 barg @ 50 degrees C,
• (2) 316L stainless steel centrifugal pumps, manufactured by Girdlestone, type 12CABC2G, 16 bar @ 20 degrees C, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB T4 motor,

Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 185 °C (365 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 304L. Jacket Temperature: 185 °C (365 °F).

Type: Filter

Subtype: Nutsche

Manufacturer: Cogeim

Model: FPP 400 FM-S

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 4 m² (43.1 ft²)

Diameter: 2,300 mm (90.6 in)

• design pressure internal 4 bar + full vacuum @ -29/185 degrees C (5400 liter),
• jacket 10 bar + full vacuum @ -29/185 degrees C (120 liter),
• 304L stainless steel half pipe coil jacket on straight side and filter base,
• 7.3-14.6 rpm shaft speed,
• driven by 10/6.6kw 3/50/415 volt 1440/750 rpm EExd IIB T4 motor via a reduction gearbox,
• reversing agitator for discharging,
• packed gland, s
• haft with Hydraulic raise/lower mechanism, clamped bottom filter bed with raise/lower mechanism, both driven by a hydraulic power pack with a 7.5kw, 3/50/415 volt 1447/1454 rpm EExd IIB T4 motor via a reduction gearbox,
• side discharge with hydraulic valve,
• slurry outlet with a 80/80mm SCHUF valve,
• filter bed on wheels for cleaning,
• internal wash ring/spray bar,
• side inspection manway with cover and davit,
• design code: ASME VIII DIV ED 89 + ADD 90,

(1) 316L stainless steel centrifugal pump, manufactured by Girdlestone, type 12CSD2G, serial #59209, size 3" x 2" x 175, max working pressure 16 bar @ 20 degrees C, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB TA motor, mounted on a baseplate,

(1) 316L stainless steel centrifugal pump, manufactured by Girdlestone, type 10AO3H, serial #53531, size 20 X 40 x 175, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB TA motor, mounted on a baseplate,

Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 185 °C (365 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 304L. Jacket Temperature: 185 °C (365 °F).
