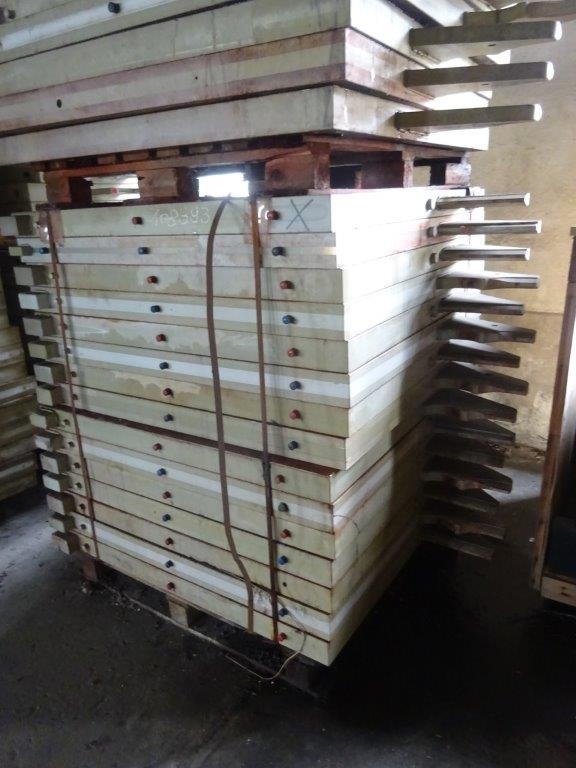

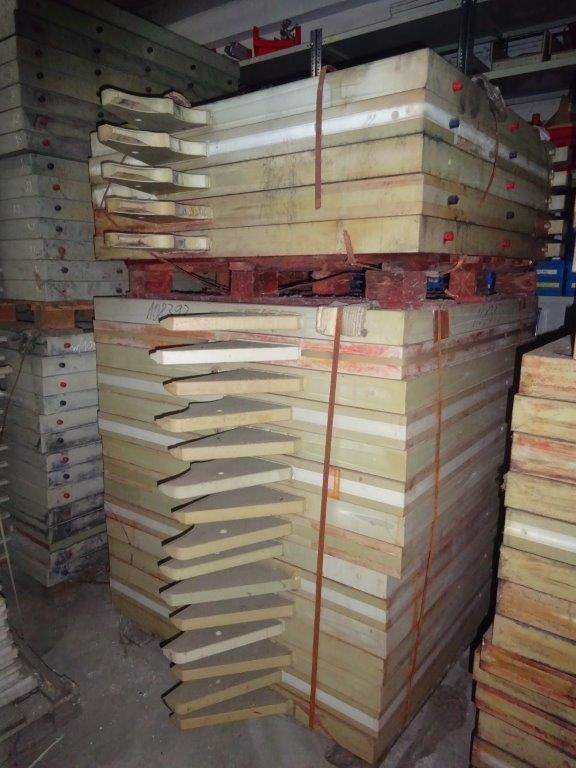

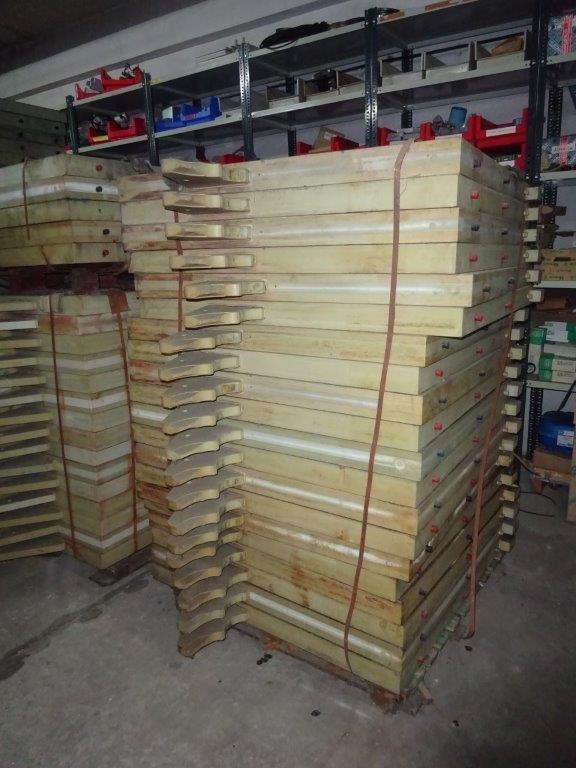

Filter Press Plates Only, 371 Sq.Ft. Filtration Area, Polypropylene Plates. - IPP# 108393

Type: Filter

Subtype: Press

Manufacturer: Shriver

Model: Size 12

Condition: Used

Material: Polypropylene

Filtration Area: 2.6 m² (28 ft²)

Pressure: 6.9 bar (100 psi)

• Polypropylene filter press, Size 12 2 eye corner feed, With (13) 2 button frames 9.5"ID x 8" ID x 1" thick, and (14) plates - (8) are 1 button with nozzles, (7) are 3 button washing type.
• Manual closure, Portable design.

Cake Volume: 0.017 m3 (0.6 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 13. Number of Plates: 14. Plate MOC: Polypropylene. Skeleton MOC: Carbon steel. Plate Diameter or Width: 304.8 mm (12 in). Plate Height: 304.8 mm (12 in). Plate Thickness: 25.4 mm (1 in). Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Seitz Enzinger

Model: 40/60

Condition: Used

Material: Polypropylene

Filtration Area: 5.2 m² (55.4 ft²)

Pressure: 6 bar (87 psi)

• Seitz Enzinger plate and frame filter press (4) eye
• Manual Screw closure

Overall Length: 2,200 mm (87.4 in). Overall Width: 800 mm (31.5 in). Overall Height: 950 mm (37.4 in). Cake Volume: 0.002 m3 (0.07 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 24. Number of Plates: 23. Plate MOC: Polypropylene. Skeleton MOC: 304 SS. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in). Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Seitz Enzinger

Model: 40/60

Condition: Used

Material: Polypropylene

Filtration Area: 5.2 m² (55.4 ft²)

Pressure: 6 bar (87 psi)

• Seitz Enzinger plate and frame filter press (2) end plates;(4) eye.
• Manual Screw closure

Overall Length: 2,200 mm (87.4 in). Overall Width: 800 mm (31.5 in). Overall Height: 950 mm (37.4 in). Cake Volume: 0.002 m3 (0.07 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 22. Number of Plates: 22. Plate MOC: Plastic. Skeleton MOC: 304 SS. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in). Plate Thickness: 12 mm (0.47 in). Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Seitz Enzinger

Model: 40/60

Condition: Used

Material: Polypropylene

Filtration Area: 5.2 m² (55.4 ft²)

Pressure: 6 bar (87 psi)

• Seitz Enzinger plate and frame filter press (4) eye
• Manual Screw closure

Overall Length: 2,200 mm (87.4 in). Overall Width: 800 mm (31.5 in). Overall Height: 950 mm (37.4 in). Cake Volume: 0.002 m3 (0.07 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 24. Number of Plates: 23. Plate MOC: Plastic. Skeleton MOC: 304 SS. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in). Plate Thickness: 12 mm (0.47 in). Plates Shifted By: Manual.
