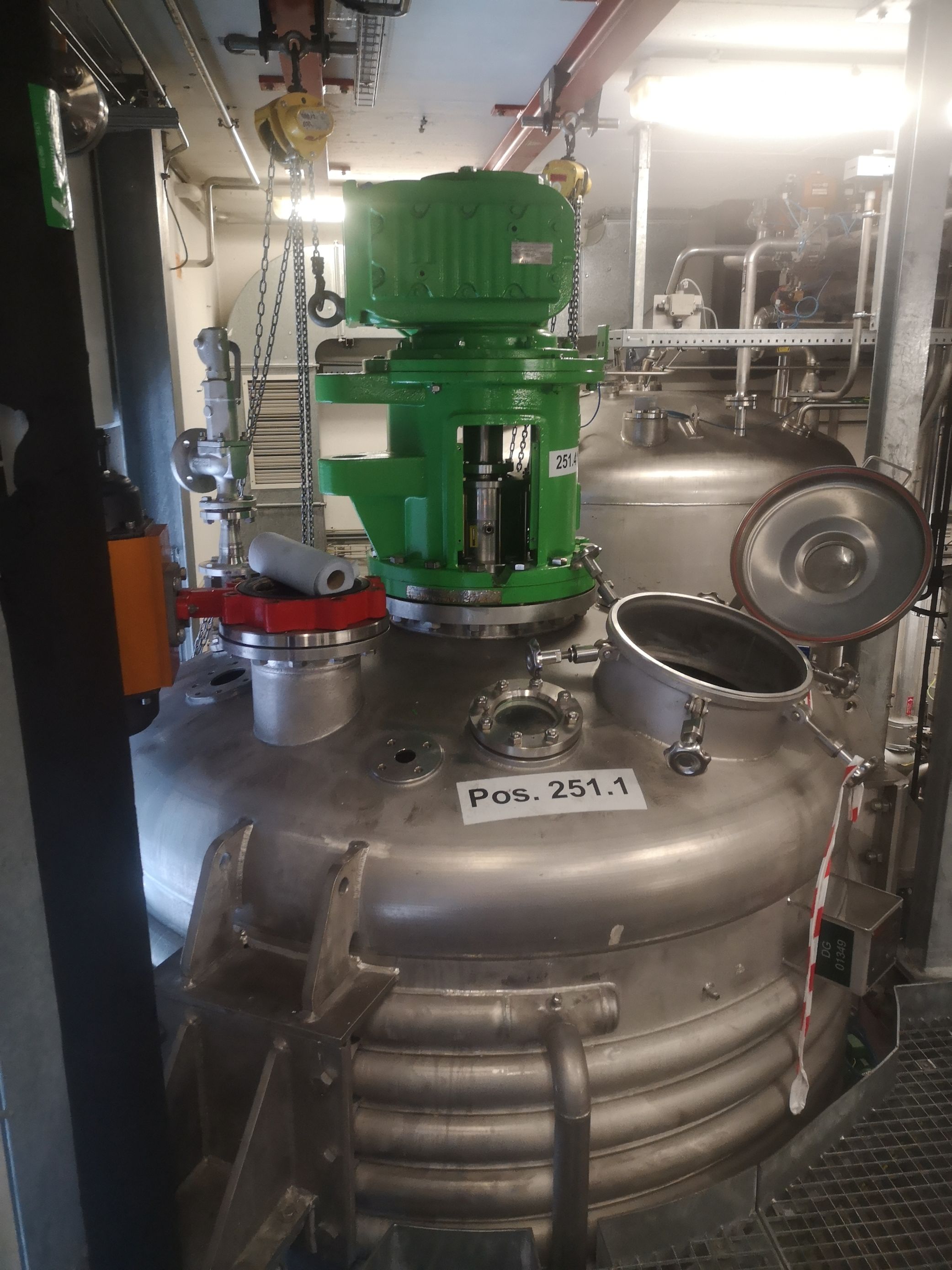

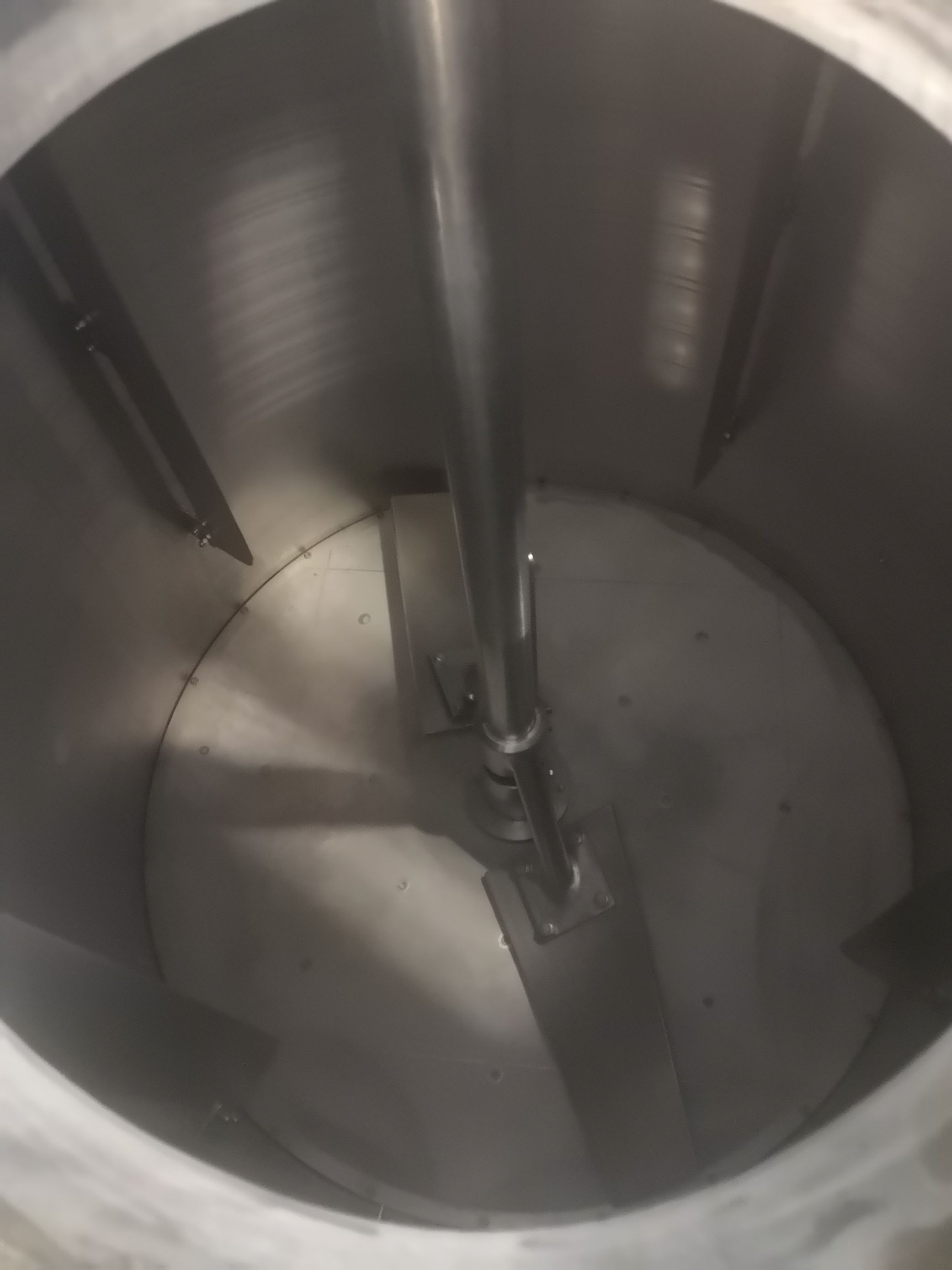

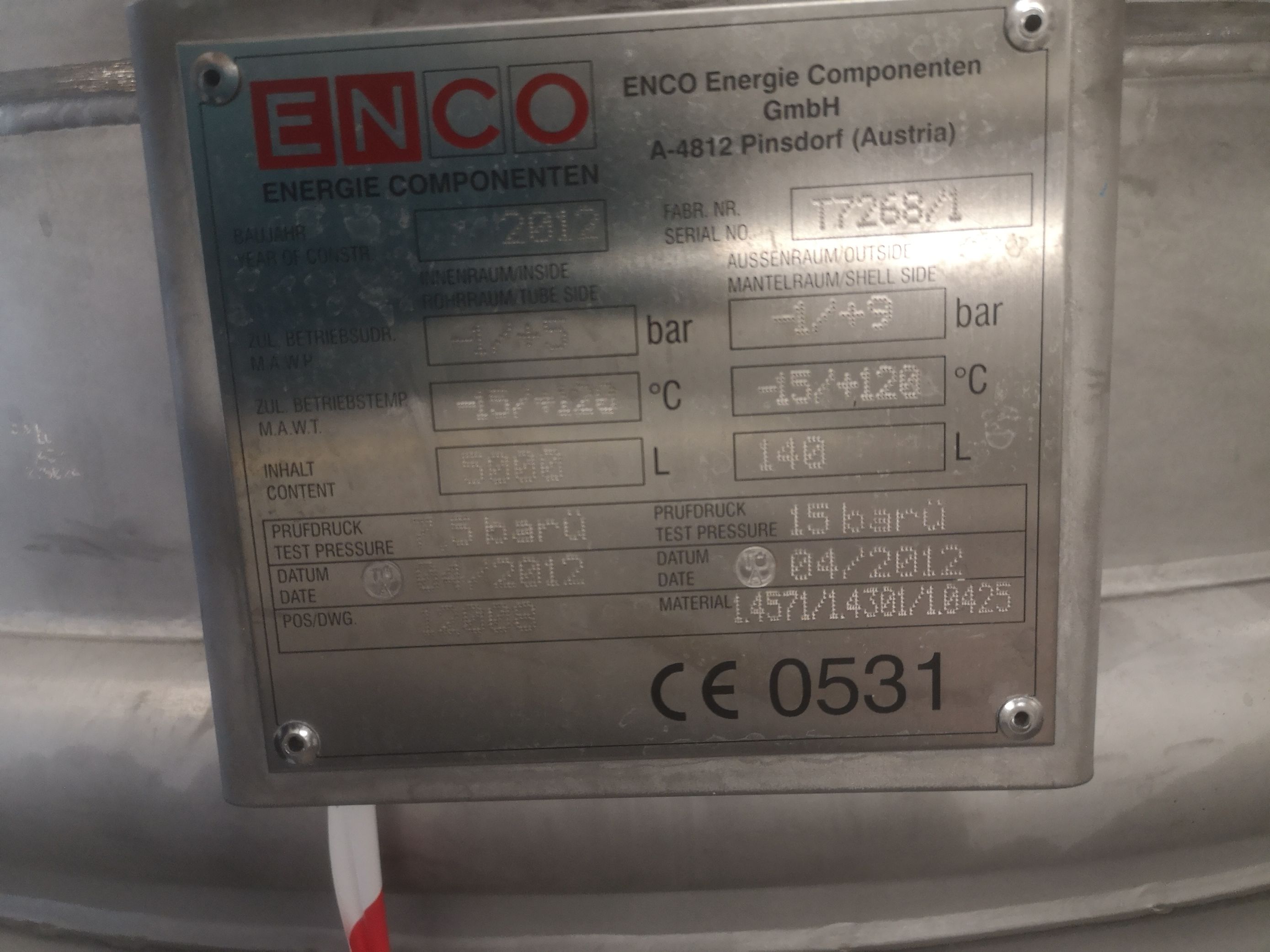

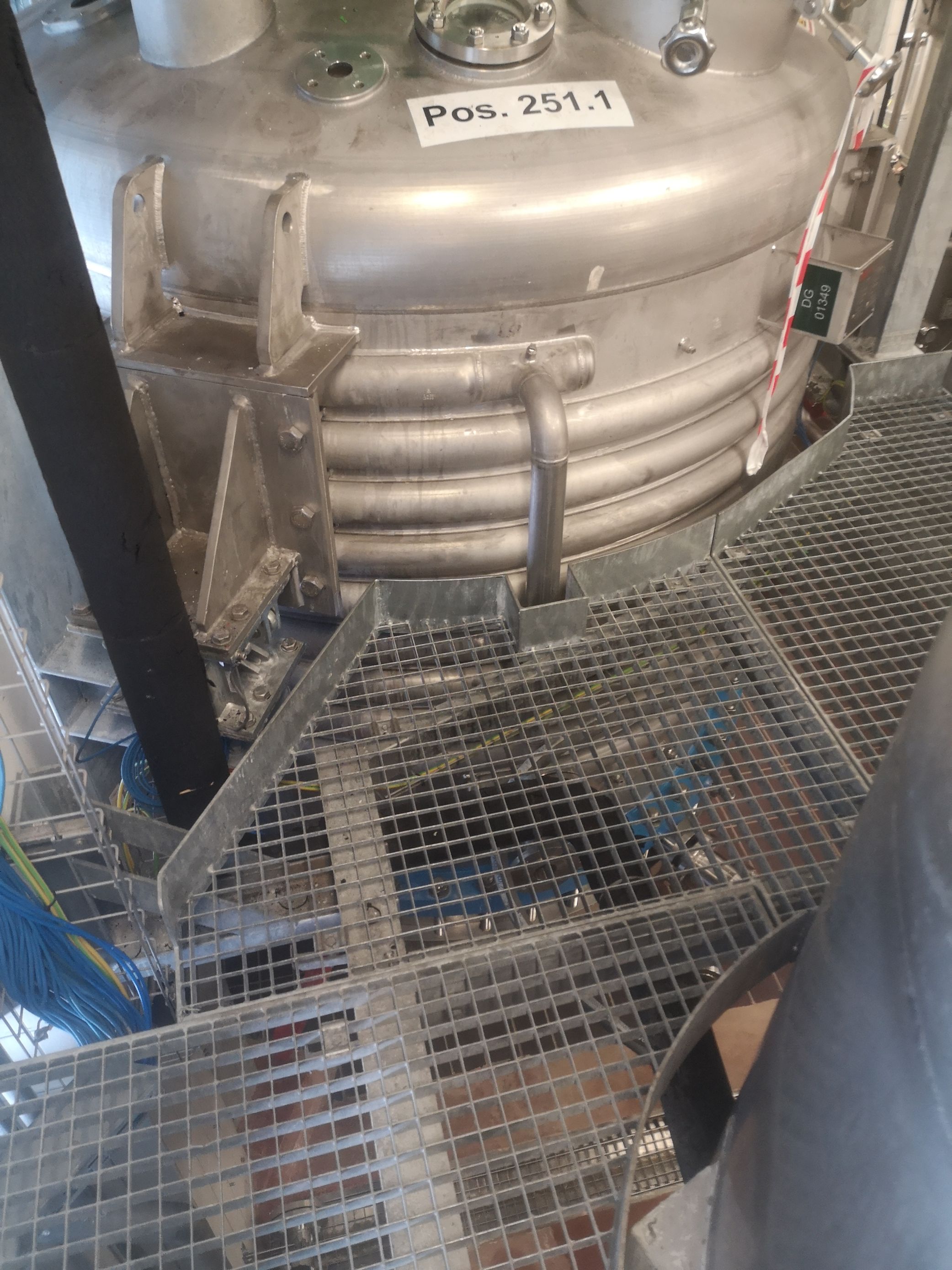

jacketed agitated vacuum filter/Dryer CE 0531 TUV internal pressure -1/5 bar @ -15/120 degrees C (5000 liter) jacket -1/9 bar @ -15/120 degrees C (140 liter) EX II 2G T3X CE0035 internal flat filter plate 4-internal baffle plates on sidewall
Type: Filter
Subtype: Rosenmund and Cogiem
Manufacturer: Giovanola
Condition: Used
Material: Stainless Steel Austenitic
Filtration Area: 5 m² (53.8 ft²)
Pressure: 4 bar (58 psi)
agitated vacuum nutsche filter internal pressure -1/4 bar @ -10/100 degrees C, 9000 liter internal washing/spray bar clamped flat filter base mounted on castors for removal side discharge with valve driven by a hydraulic power pack driven by 22kW/3~/50Hz/500V/1.480rpm EEx motor via a Flender reduction gearbox
Temperature: 100 °C (212 °F).
Type: Filter
Subtype: Rosenmund and Cogiem
Manufacturer: Schenk Filterbau GMBH (Gmund Germany)
Model: 300/40
Condition: Used
Material: Stainless Steel Austenitic
Filtration Area: 0.12 m² (1.29 ft²)
Diameter: 400 mm (15.7 in)
Schenk Filter Dryer Vessel Serial number 1635GW 45 liter capacity Jacket volume is 15 liter Clamp filter plate is 400mm diameter type M16B-R5 CK 35 (8) segments, 280 mesh diameter Agitator lift is driven by a .75KW 3/50/380 volt motor agitator rotational dirve is a 1.5 KW 3/50/380 volt Side cake discharge.
Pressure: 6 bar (87 psi). Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 165 °C (329 °F).
