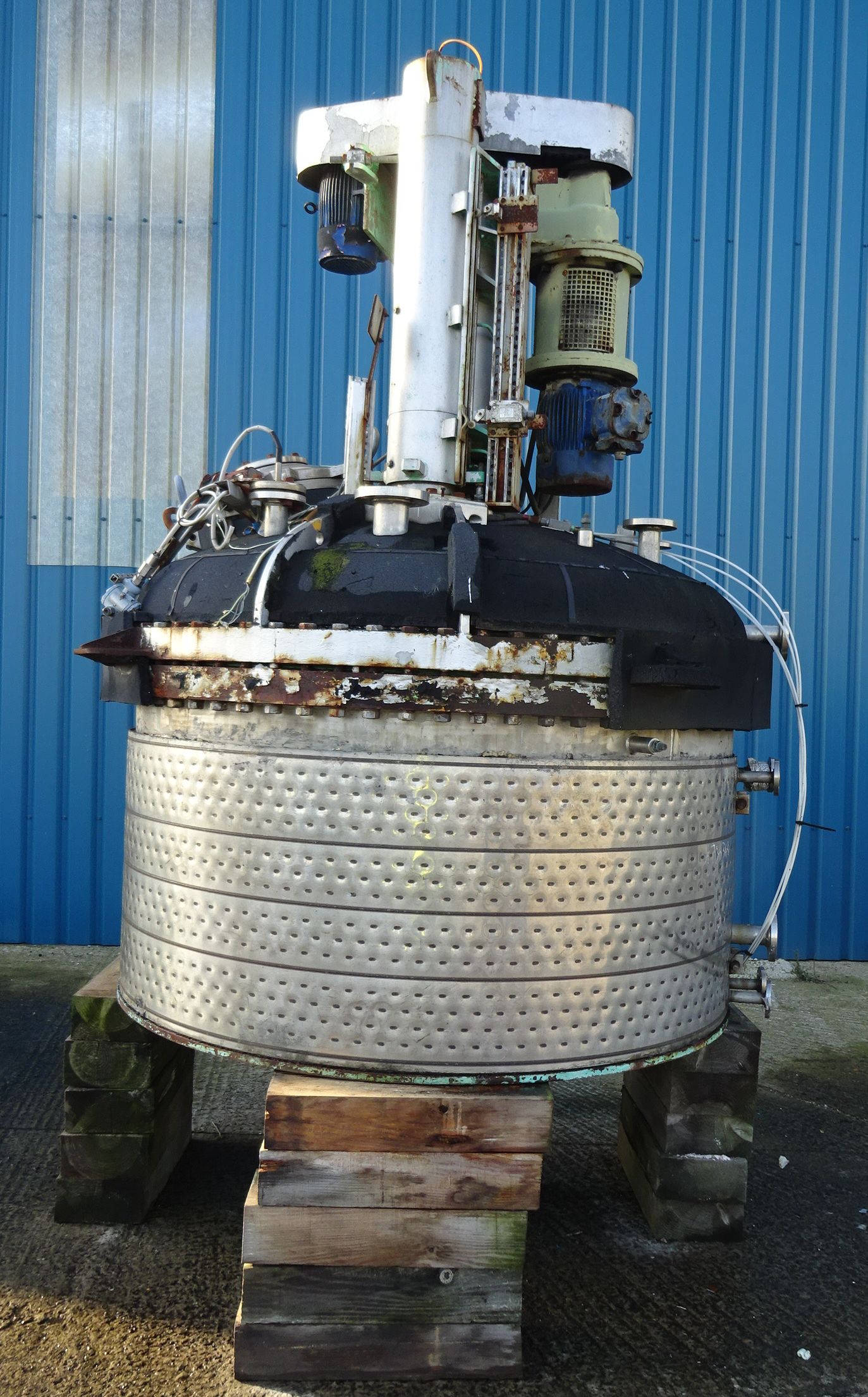

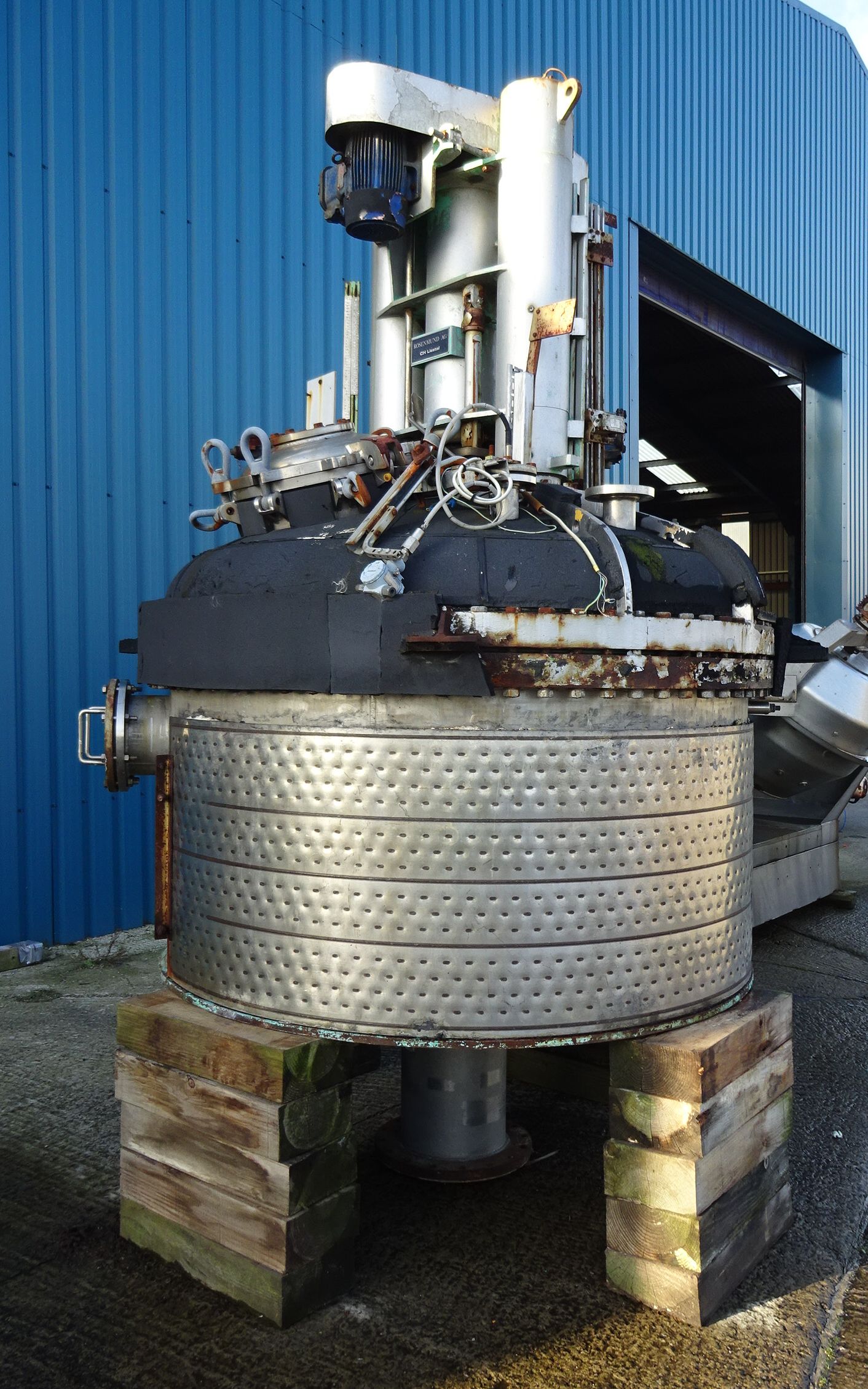

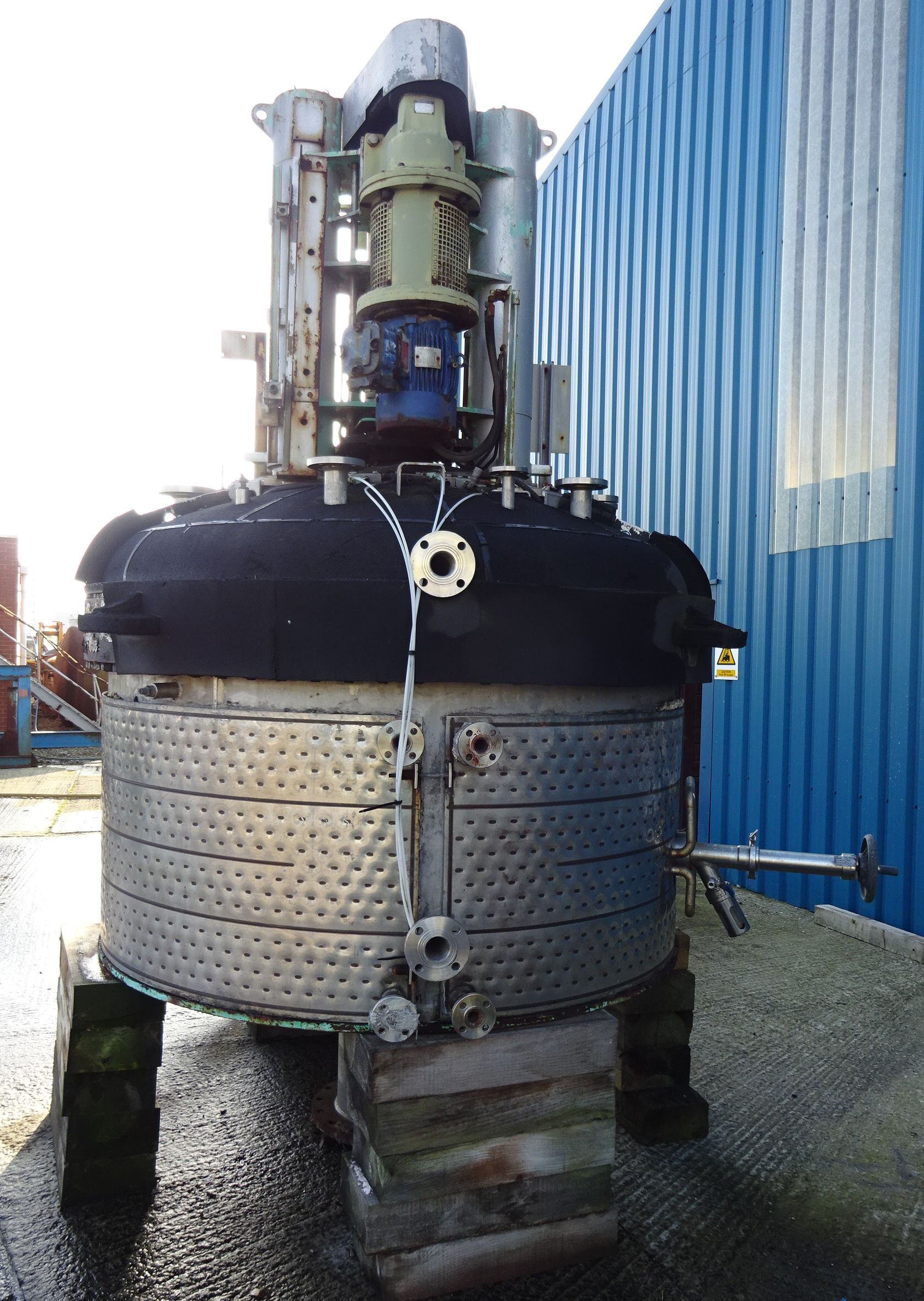

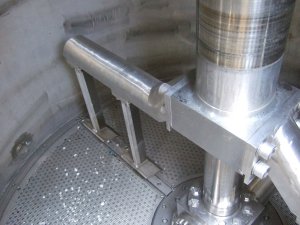

Rosenmund and Cogiem Filter 2.4 m² (25.8 ft²) Stainless Steel 316 For Sale - IPP# 706348

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund

Model: RPD 8-398-86

Condition: Used

Material: Stainless Steel 316

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,250 mm (128.3 in)

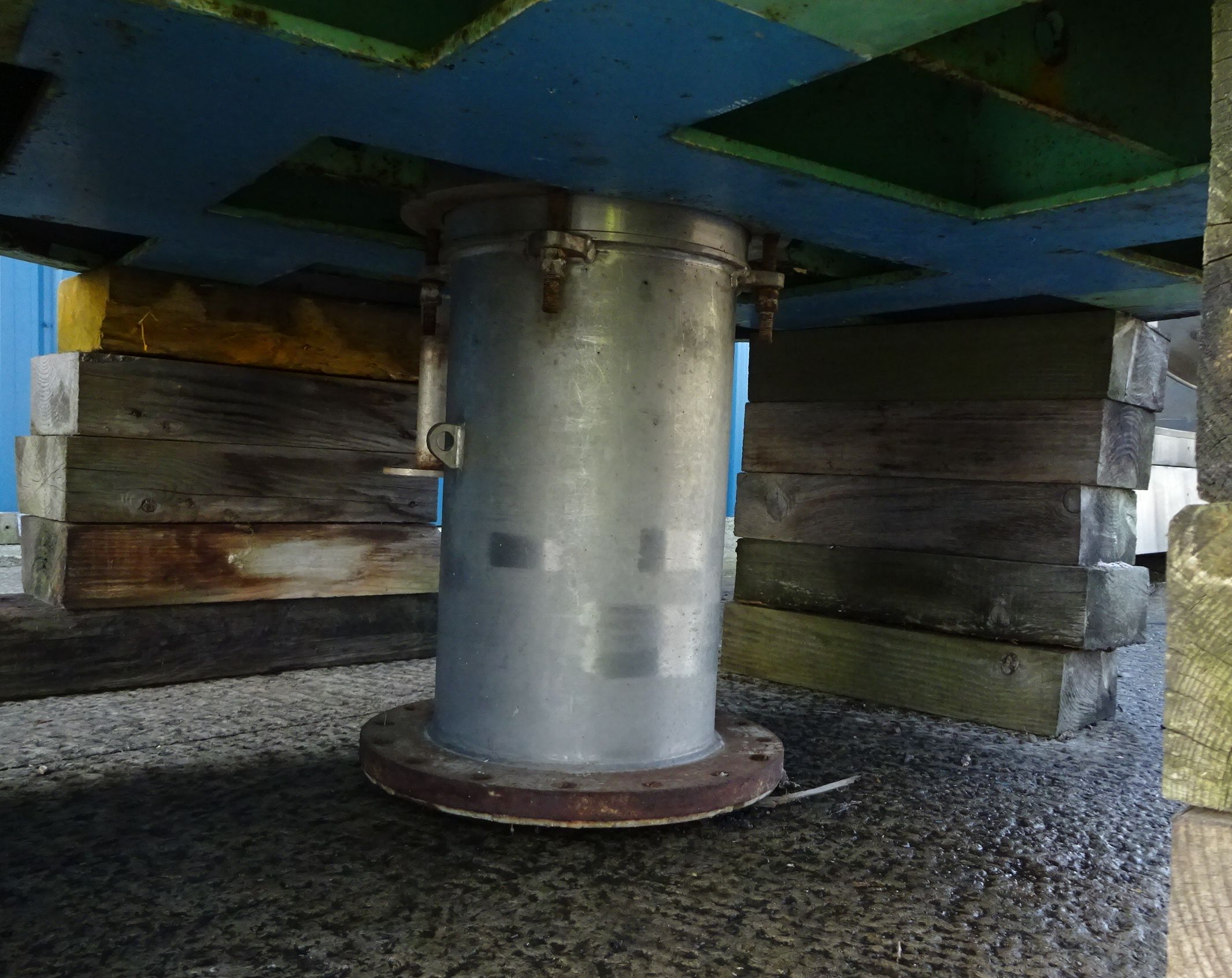

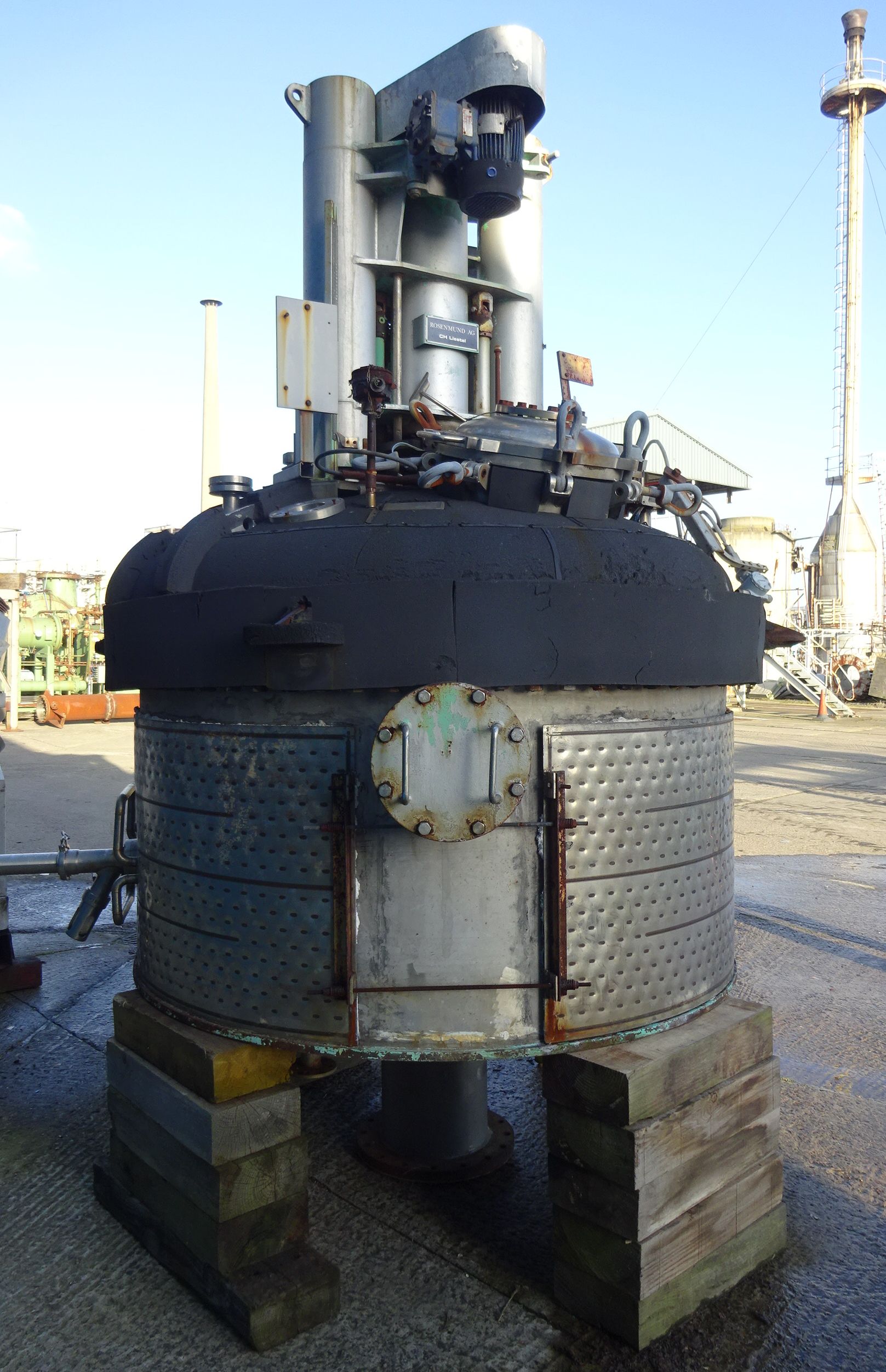

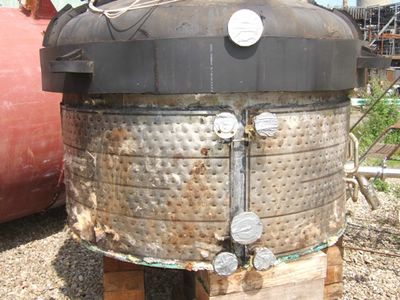

Codap85 center bottom discharge design Includes hydraulic controls and vacuum pump skid. 316L stainless steel half pipe coil jacket on straight side cover with a shroud jacket volume is 75 liters. jacket -1/5 bar Non-cored shaft. Rated: internal pressure -1/3 bar Designed for cake thickness 500mm.

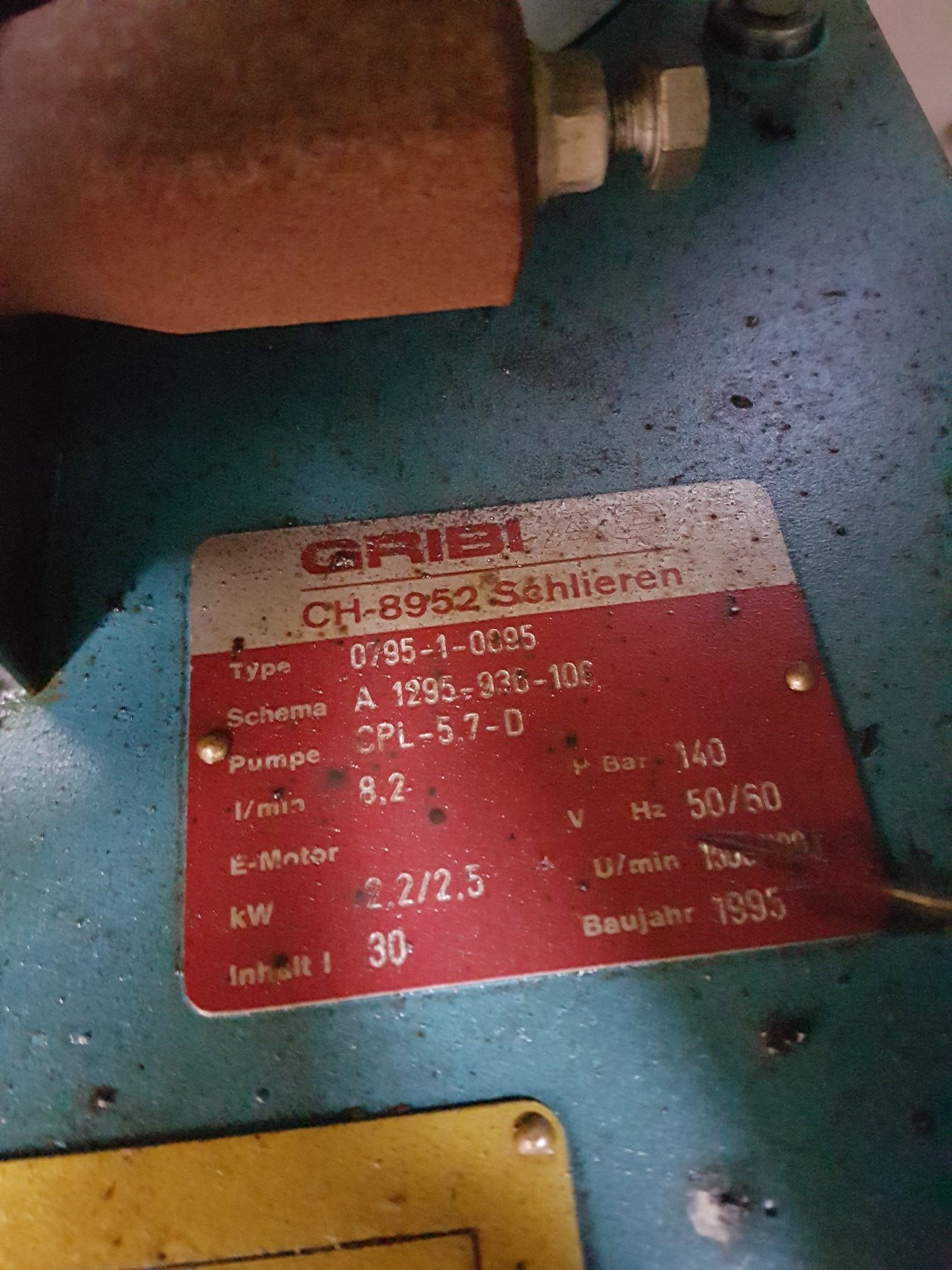

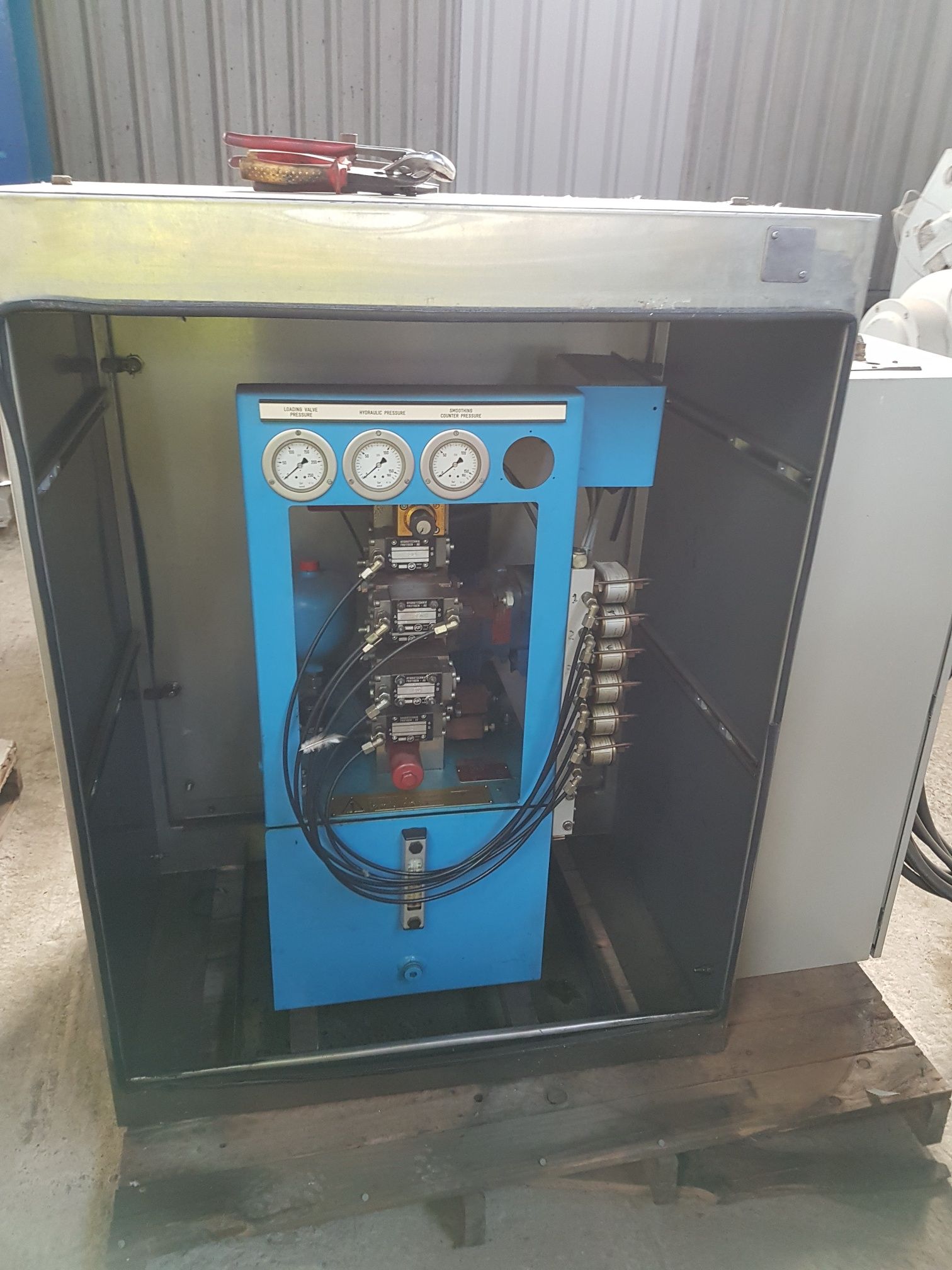

Vessel is 13200liter volume Includes hydraulic controls and vacuum pump skid

Pressure: 3 bar (43.5 psi). Temperature: 165 °C (329 °F). Overall Length: 1,200 mm (46.9 in). Jacket: Yes. Jacket Pressure: 5 bar (72.5 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 165 °C (329 °F).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund

Model: RPD 8-398-86

Condition: Used

Material: Stainless Steel 316

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,250 mm (128.3 in)

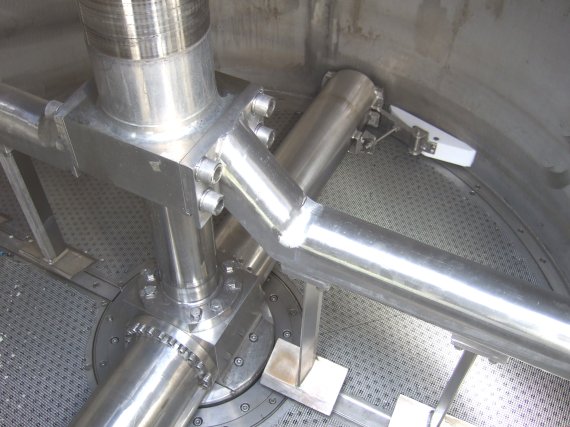

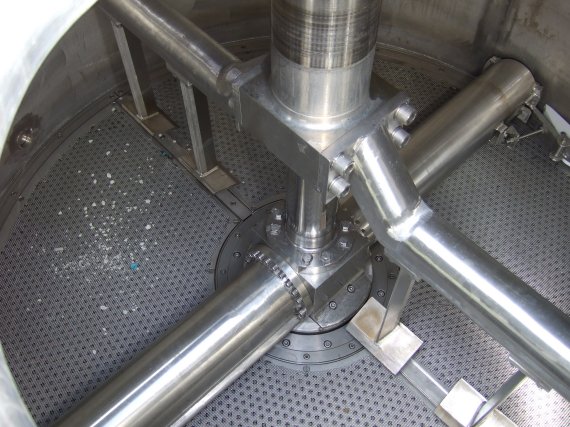

CODAP 85, center bottom discharge design Non-cored shaft internal pressure -1/3 bar @ -15/165 deg C;, jacket -1/5 bar @ -15/165 deg C With 316L (1.4435) stainless steel half pipe coil jacket on straight side cover with a shroud Designed for cake thickness 500 mm Vessel is 13200 liter volume Includes hydraulic controls and vacuum pump skid.

Pressure: 0.21 bar (3 psi). Temperature: 73.9 °C (165 °F). Overall Length: 1,200 mm (46.9 in). Jacket: Yes. Jacket Pressure: 5 bar (72.5 psi). Jacket Type: Half Pipe/Limpet. Jacket Temperature: 165 °C (329 °F).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund

Model: RPD 8-398-86

Condition: Used

Material: Stainless Steel 316

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,250 mm (128.3 in)

center bottom discharge design internal pressure -1/3 bar @ -15/165 deg C; jacket -1/5 bar @ -15/165 deg C. Non-cored shaft Designed for cake thickness 500 mm Vessel is 13200 liter volume jacket volume is 75 liters

Pressure: 3 bar (43.5 psi). Temperature: 165 °C (329 °F). Overall Length: 1,200 mm (46.9 in). Jacket: Yes. Jacket Pressure: 5 bar (72.5 psi). Jacket Type: Half Pipe/Limpet. Jacket Temperature: 165 °C (329 °F).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund

Model: B88-RF-1513

Condition: Used

Material: Stainless Steel 316

Filtration Area: 0.6 m² (6.5 ft²)

Diameter: 886 mm (34.9 in)

Internal working pressure 90 psi and full vacuum @ -20/+450 degree F, jacket 150 psi @ -20/+450 degree F.Filter plate 150 psi @ -20/+450 degrees. F,total volume 150 gallon, max solids volume 47.5 gallon, stroke pressure shovels 12", 316L stainless steel filterplate304L stainless steel jacket. Paddle speed approx 5-35 rpm, packed gland on shaftAgitator raise and lower mechanism driven by same powerpak. Center bottom discharge with hydraulic valve. Heated filter perforated plate with hydraulic lowering ramMax capacity vessel 17 cubic feet, jacket 1.9 cubic feet, filter plate 0.3 cubic feet, built on control panel with agitator speed control, raise/lower speed control, counter pressure control, discharge tube open/close switch, base open/close switch, pressure gauge, and emergency stop button. Fabricate under license from Rosenmund by Gaston County. Gaston County serial # F80019-588-1.

• Can be used with 248331 APOVAC system for vacuum at an additional cost.

Pressure: 6.2 bar (90 psi). Temperature: 232.2 °C (450 °F). Jacket: Yes. Jacket Pressure: 10.3 bar (150 psi). Jacket MOC: Stainless Steel 304. Jacket Temperature: 232.2 °C (450 °F).
