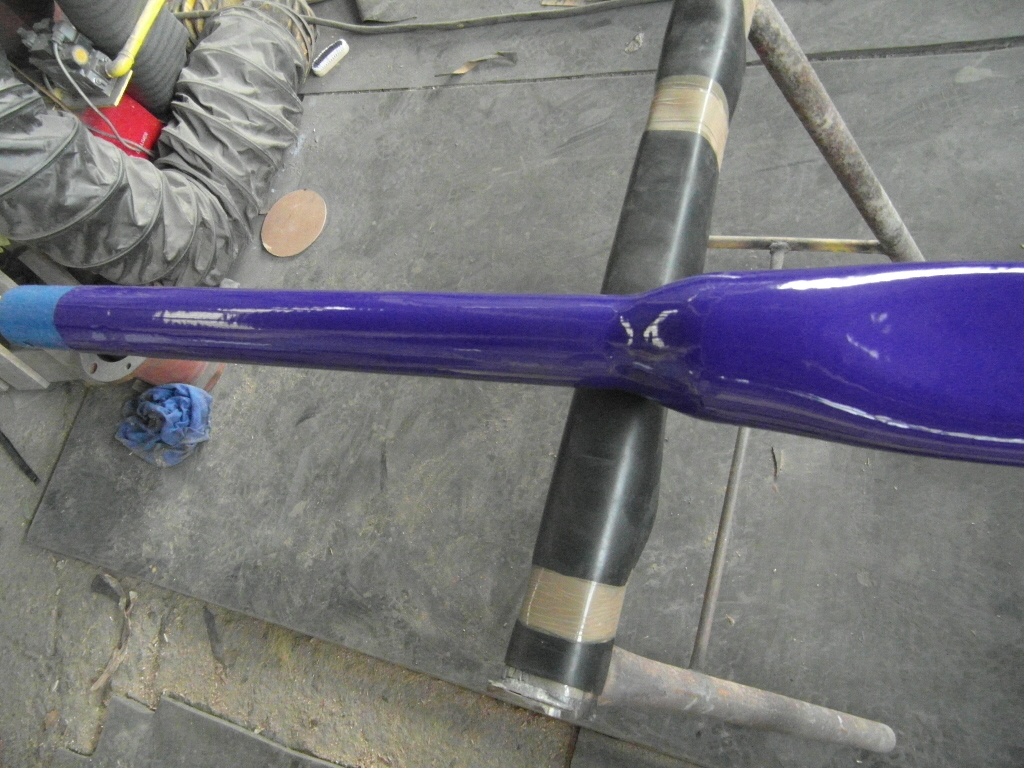

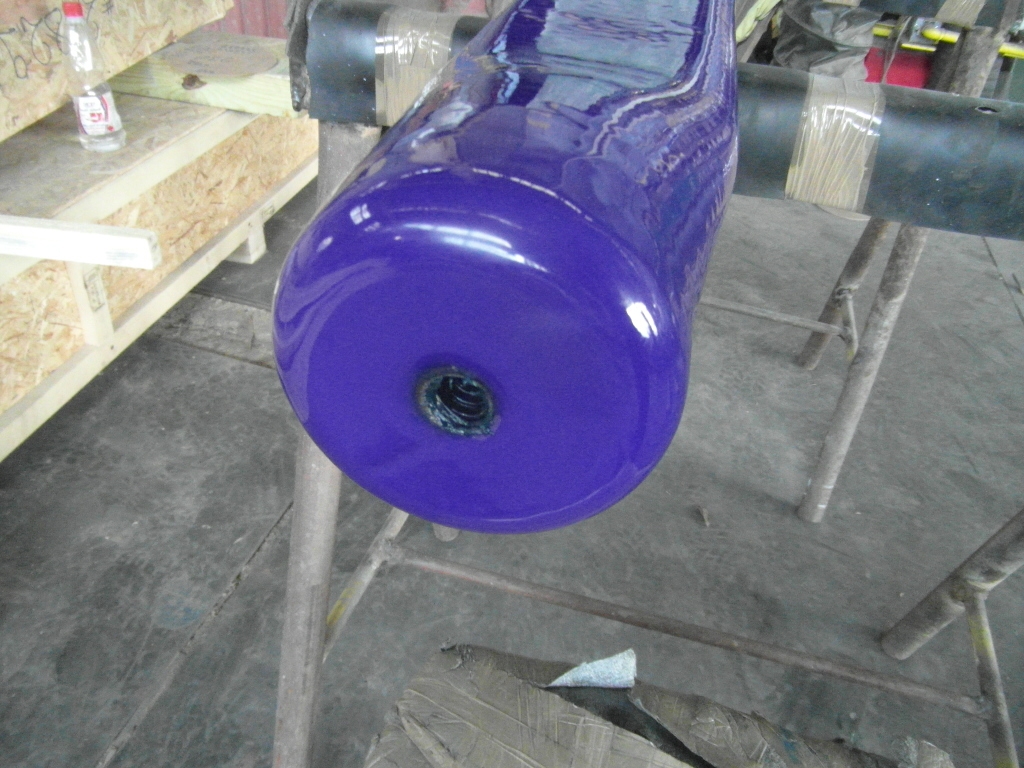

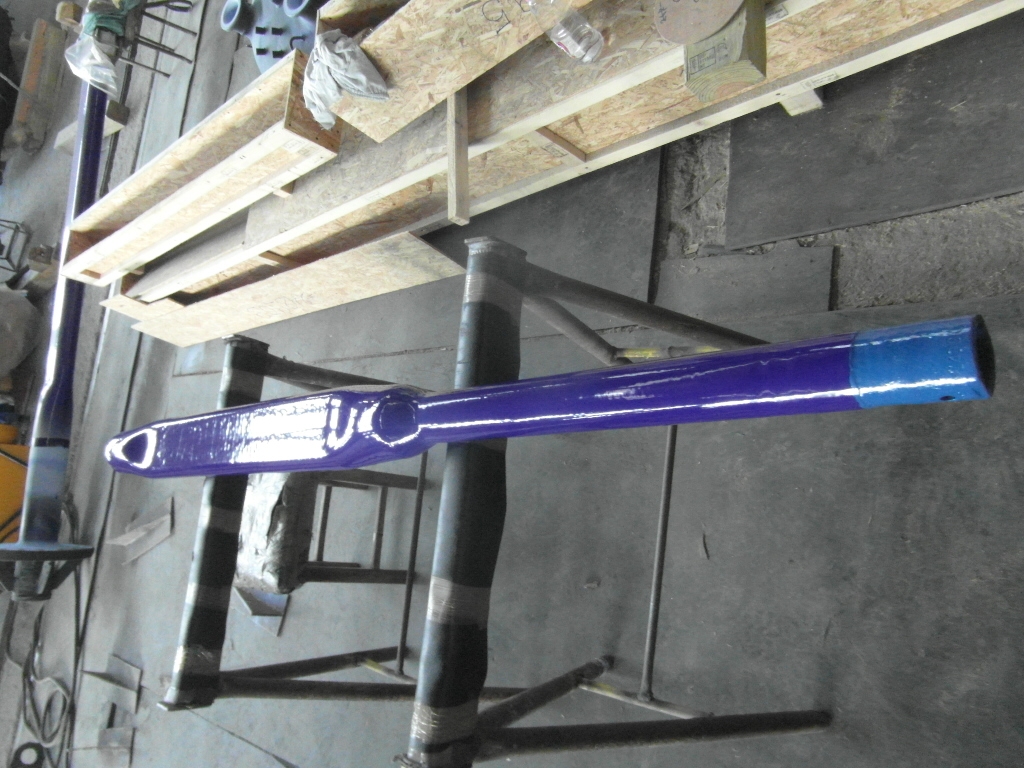

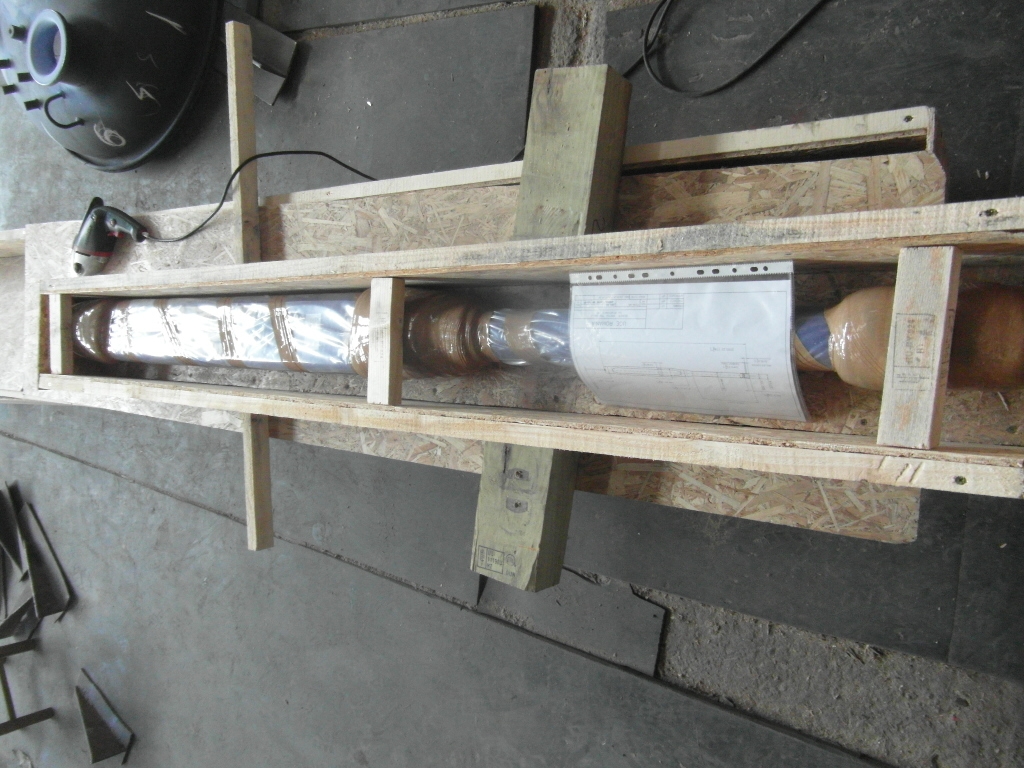

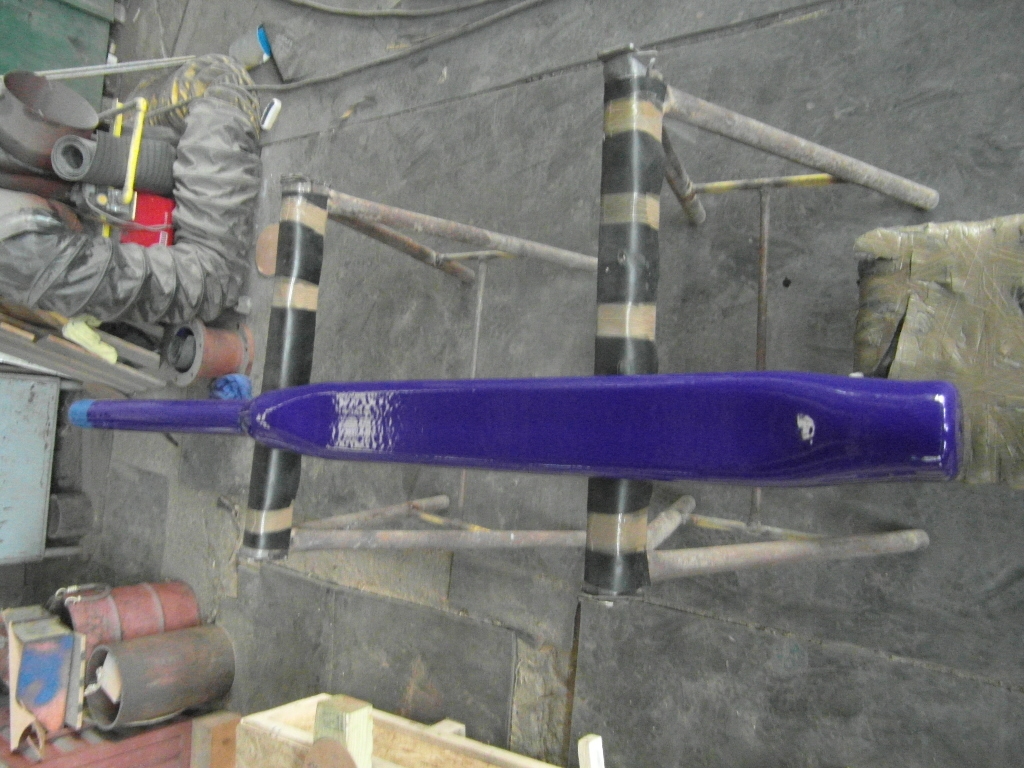

Baffle Glass Lined Parts - IPP# 248909

Type: Glass Lined Parts

Subtype: Baffle

Manufacturer: DeDietrich

Model: Beaver Tail

Condition: Re-glassed

Material: Glasslined

Diameter: 114 mm (4.5 in)

Length: 2,756 mm (109 in)

• 108" wet length, 117" over all length
• Flange mount design for a 6" nozzle,13 1/2" O.D. flange with (8) bolt holes.

Span: 178 mm (7 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

Type: Glass Lined Parts

Subtype: Baffle

Manufacturer: Pfaudler

Model: Beaver Tail

Condition: Re-glassed

Material: Glasslined

Diameter: 76.2 mm (3 in)

Length: 2,356 mm (92.8 in)

Span: 146 mm (5.75 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Type: Glass Lined Parts

Subtype: Baffle

Manufacturer: Pfaudler

Model: Beaver Tail

Condition: Re-glassed

Material: Glasslined

Diameter: 76.2 mm (3 in)

Length: 1,937 mm (76.3 in)

Span: 102 mm (4 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Type: Glass Lined Parts

Subtype: Baffle

Model: Beaver Tail

Condition: Re-glassed

Material: Glasslined

Diameter: 127 mm (5 in)

Length: 3,607 mm (142 in)

Span: 203 mm (8 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: None.
