New Stainless Steel 316 Colloid Mill - IPP# 216274

  • New Stainless Steel 316 Colloid Mill - IPP# 216274 New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274 New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274 New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274 New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274 New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274 New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274 New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274 New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274 New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274
  • New Stainless Steel 316 Colloid Mill - IPP# 216274
Overview
Mill
Colloid
Gale Process Solutions
Multi-Mill
New
Stainless Steel 316
Capacity
0.008 m3 (0.3 ft3)
Dimensions
330 mm (13 in)
Vertical
Drive
2.2 kW (3 HP)
1,440
Vertical
Other Specifications
Electric
Yes
Base Plate w/ Casters
Skid
Direct Coupled
Motor
Hindustan
2.2 kW (3 HP)
220
60
3
  • Capacity 300 kg per hour.
  • 316SS (product contact), sifter, polished with mirror finish, Multi Mill ,with Bead impact knife blade. Sanitary and cGMP construction.
  • 1400 mm height, 330mm diameter, 316 SS perforated screen .5 mm thick, 316SS shaft 38mm diameter x 410mm long,
  • 316 SS knife (20 mm x 55 mm x 6 mm thick) frame 304 cladded, (2) 316 ss blade scrapers (20 mm x 20 mm x 50 mm), mechanical seal, w/ charging hopper.
  • Hindustan Motor: 2.2KW 3/60/220 w/ VFD Bolted to base plate with caster wheels (4)

Similar Equipment

Stainless Steel 316 IKA-Werk W32KAAABAA6660 Colloid Mill

Stainless Steel 316 IKA-Werk W32KAAABAA6660 Colloid Mill

Type: Mill

Subtype: Colloid

Manufacturer: IKA-Werk

Model: W32KAAABAA6660

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 0.003 m3 (0.11 ft3)

Drive Power: 11.2 kW (15 HP)

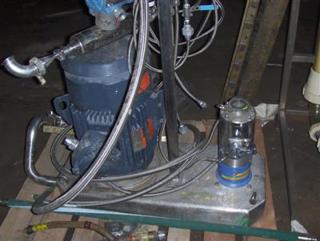

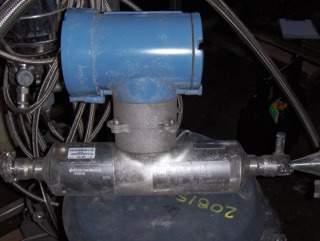

Series 2000 Type: DRS2000/5 Type 139 All piping and support equipment stainless steel. Mill and motor mounted on stainless steel base with cooler and micro motion feed control. Micro motion complete with transmitter MDL T050T6215CAUE2222.

Pressure: 25 bar (362.6 psi). Temperature: 200 °C (392 °F). Powered By: Electric.

Stainless Steel 316 Colloid Mill

Type: Mill

Subtype: Colloid

Manufacturer: Premier Colliod Mills LTD

Model: 5" dispersion mill

Condition: Used

Material: Stainless Steel 316

Diameter: 254 mm (10 in)

Drive Power: 3.7 kW (5 HP)

rotor speed 3000 rpm 3/50/220/380/440 volt 3" bottom diameter 316 s/steel feed chute, 5" x 2" 316 s/steel discharge chute, built on on/off switch

Drive RPM: 3,000.

Stainless Steel 316 Colloid Mill

Type: Mill

Subtype: Colloid

Condition: Used

Material: Stainless Steel 316

Drive Power: 2.2 kW (3 HP)

316 SS contact with 304 SS parts jacketed colloid mill 0.75" inlet and outlet with Tri-Clover style fittings Jacket inlets and outlets are 0.50" Dolly stand mounted with on board controls including a GSz Variable Frequency Drive Machine # 2.2KNE2 Frame4 ND90L Shipping dimensions: 52" x 18" x 35"
