Diesel Generator set
277/480 volt
With an IEC (International Electric Corp) generator,
Model 6432LEJ-002
Serial Number A612123
frame 320
ambient 40 degrees C
965 continuous KW, 1206 KVA
1451 AMPS.
Driven by a Detroit Diesel Allison 149 Power, V12 engine with exhaust gas turbo charger, electric oil heater and muffler.
Skid mounted with cooling fan serial number 126796.
New hour meter on generator with 102 hours, plus 665 previous hours on the unit.
Type: Power Generator
Manufacturer: Elliott
Model: BYRH-UG
Condition: Used
Material: Carbon Steel
Capacity: 1.01 MW
Amperage: 163 amp

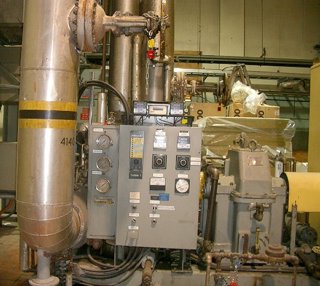

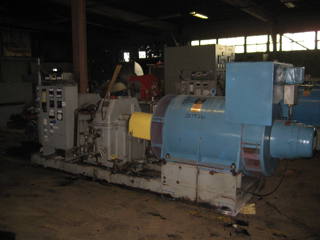

Elliott steam turbine generator set with Elliott turbines Single stage back pressure style units. We believe this unit has zero run hours since the overhaul. Engine, gearbox and generator are mounted in a common skid. Rated Power - 1350HP/1007kW; Rated Turbine Speed - 5750 RPM; Rated Inlet Steam Pressure - Gauge - 599 PSI; Rated Steam Temperature - 750 Deg F; Rated Exhaust Pressure - 155 PSI. Gear Drive is a model # C4 R4, Serial # B102145C-G2, Rated power 1350, Service factor 1.66, High speed shaft;5750, Low speed shaft;1815 , Tag # 802654 C4 2625. Alternater is built by BBC (Brown Boveri) Serial # C36-A076-101, Drive end bearing 6322/C3, opposite drive end bearing 6320/C3. Time rated continuous; Frame # 717, enclosure is drip proof; rated ambient temp. 40 degrees C. With twin Amtek oil coolers and 1.5 hp oil pump.
Voltage: 4,160. Cycle: 60. Phase: 3. Drive Power: 1,007 kW (1,350 HP). Power Transmission: Gear. Powered By: Steam. Controls: Yes.
Type: Power Generator
Manufacturer: Caterpillar Inc
Model: G3516
Condition: Used
Material: Carbon Steel
Capacity: 0.8 MW
Amperage: 1,200 amp
Natural Gas Generator Set Number 20502 Cat Engine Model G3516 SITA SN 3RC00095,1085HP The drivers are V-16, Spark ignition, Turbo charged and after cooled. These machines have been serviced by the OEM since start up and until shut down Operating speed 1200RPMs4 wire, Exciter 27V/80A, max temperature rise 115°C by resistance. Paired with a vertical heat exchanger 5’3”diax12’H
Voltage: 480. Cycle: 60. Phase: 3. Operational Hours: 657,774. Drive Power: 809.1 kW (1,085 HP). Fuel Type: Natural Gas. Power Transmission: Direct Coupled. Powered By: Engine. Engine Manufacturer: Caterpillar. Engine Model Number: G3516. Drive engine number of cylinders: 16. Engine Horsepower: 1,085. Batteries: Yes. Battery Charger: Yes.
Type: Power Generator
Manufacturer: Caterpillar Inc
Model: G3516
Condition: Used
Material: Carbon Steel
Capacity: 0.8 MW
Amperage: 1,200 amp
Natural Gas Electric Generator Set Number 20502Cat Engine Model G3516 SITA SN 3RC00088,1085HPThe drivers are V-16, Spark ignition, Turbo charged and after cooled. These machines have been serviced by the OEM since start up and until shut downOperating speed 1200RPMs4 wire, Exciter 27V/80A, max temperature rise 115°C by resistance. Paired with a vertical heat exchanger 5’3”diax12’H
Voltage: 480. Cycle: 60. Phase: 3. Operational Hours: 651,146. Drive Power: 800 kW (1,073 HP). Fuel Type: Nat_Gas. Engine Manufacturer: Caterpillar. Engine Model Number: G3516. Drive engine number of cylinders: 16. Engine Horsepower: 1,085. Batteries: Yes. Battery Charger: Yes. Controls: Yes.
Type: Power Generator
Manufacturer: Caterpillar Inc
Model: G3516
Condition: Used
Material: Carbon Steel
Capacity: 0.8 MW
Amperage: 1,200 amp
Natural Gas Generator Set Number 20502 Cat Engine Model G3516 SITA SN 3RC00096,1085HP The drivers are V-16, Spark ignition, Turbo charged and after cooled. These machines have been serviced by the OEM since start up and until shut down Operating speed 1200RPMs 4 wire, Exciter 27V/80A, max temperature rise 115°C by resistance. Paired with a vertical heat exchanger 5’3”diax12’H
Voltage: 480. Cycle: 60. Phase: 3. Operational Hours: 682,525. Drive Power: 800 kW (1,073 HP). Fuel Type: Nat_Gas. Batteries: Yes. Battery Charger: Yes. Controls: Yes.
