Single Rotor Crusher fixed hammers. Crusher walls are 1/4" thick, shaft is 1 15/16" diameter. Unit has a SS feed chute, screen discharge with 1/2" holes230/460 volt motor.
Type: Pulverizer
Subtype: Hammer
Manufacturer: Nederman MikroPul
Model: 3TH
Condition: Used
Material: Stainless Steel 304
Inlet Diameter: 203.2 mm (8 in)
Motor Power (Design): 22.4 kW (30 HP)
w/(3) feed screws Stirrup type hammers Feeder drive: Belt driven by 1/2 HP, 3/60/220/440 volt TEFC motor Rotor drive: Belt driven by 30 HP, 3/60/220/440 volt, 1750 rpm TEFC motor Spare screw feeder
Orientation: Horizontal.
Type: Pulverizer
Subtype: Hammer
Manufacturer: Fitzpatrick
Model: D
Condition: Used
Material: Stainless Steel 304
Motor Power (Design): 7.5 kW (10 HP)
10 HP Fixed knives blunt one side, w/reversible rotor. Unit driven by approx 10 HP, US varidrive. Screw feed driven by 1/4 HP, 3/60/230/460 volt US varidrive 3/60/230/460 volt US varidrive.
Type: Pulverizer
Subtype: Hammer
Manufacturer: Nederman MikroPul
Model: 3TH
Condition: Used
Material: Stainless Steel 304
Inlet Diameter: 381 mm (15 in)
Motor Power (Design): 22.4 kW (30 HP)

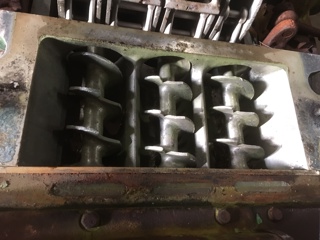

w/(3) feed screws. Discharge hopper w/out valve Stirrup type hammers. Rotor belt driven by 30 HP, 3/60/230/460 volt, 1770 rpm TEFC motor. Feeder belt driven by 1/2 HP, 3/60/220/440 volt, 1140 rpm TEFC motor.
Orientation: Horizontal.
