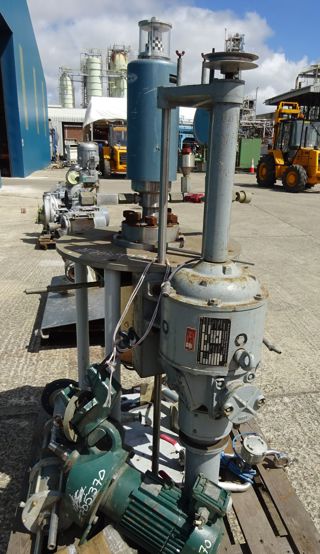

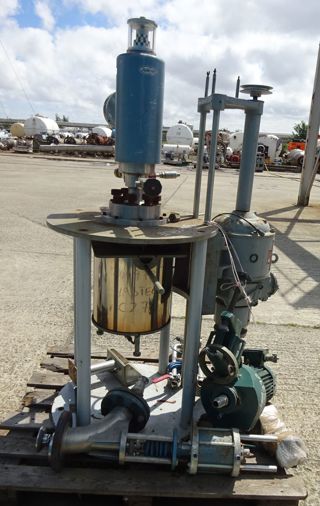

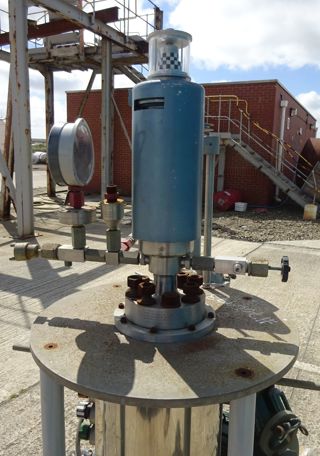

Hastelloy - C276 Parr Instrument Co. Batch-Type Agitated Reactor - IPP# 213669

Type: Reactor

Subtype: Batch-Type Agitated

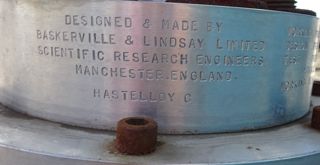

Manufacturer: Baskerville and Lindsay Ltd

Condition: Used

Material: Hastelloy - C276

Clad: Yes

Capacity (Design): 2 L (0.528 gallons)

Internal Pressure: 359 bar (5,202 psi)

direct coupled

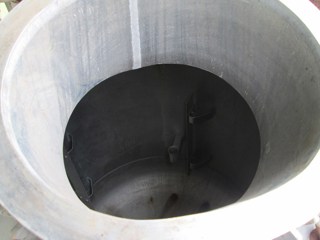

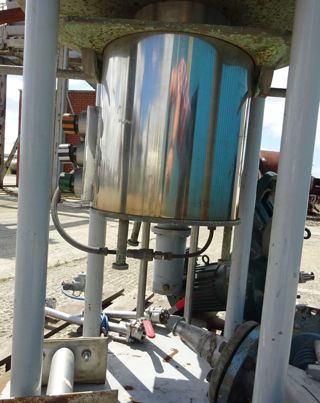

Body with electrical heated jacket and full insulation with stainless steel clad jacket

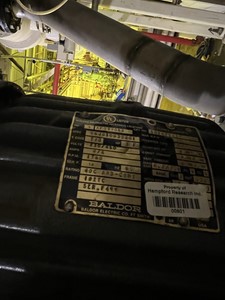

motor : 3/210 volt

Internal Temperature: 300 °C (572 °F). Jacket Material of Construction: Stainless Steel Other. Agitation: Yes. Diameter: 88.9 mm (3.5 in). Straight Side Length: 305 mm (12 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Brighton Manufacturing

Condition: Used

Material: Hastelloy - C276

Capacity (Design): 12,113 L (3,200 gallons)

Internal Pressure: 4.21 bar (61 psi)

Internal Temperature: 93.3 °C (200 °F). Jacket Pressure: 13 bar (188 psi). Jacket Temperature: 93.3 °C (200 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,261 mm (89 in). Straight Side Length: 2,667 mm (105 in). Support Type: Lugs.

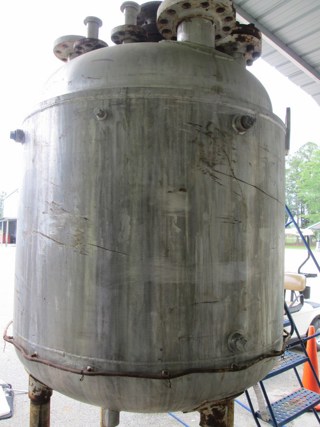

Type: Reactor

Subtype: Batch-Type Agitated

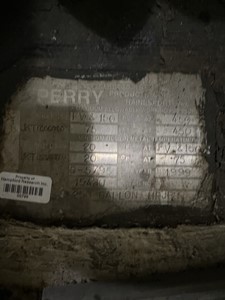

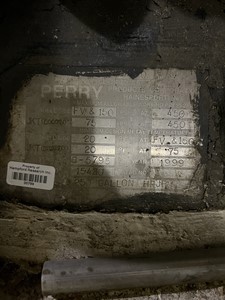

Manufacturer: Perry Products Corp

Condition: Used

Material: Hastelloy - C276

Capacity (Design): 946 L (250 gallons)

Internal Pressure: 10.3 bar (150 psi)

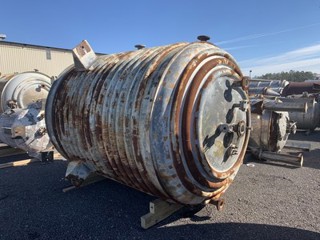

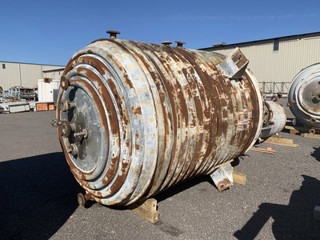

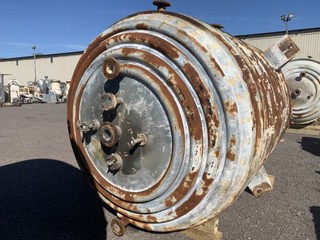

Three turns schedule 10 half pipe on bottom head, Eight turns schedule 10 half pipe on side walls.

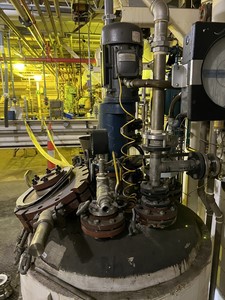

Mixing by Eastern model FRG-C2M with double mechanical seal

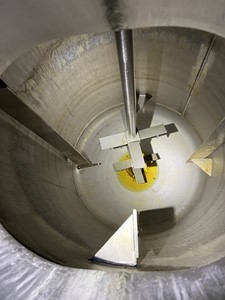

Duel sets of four blade pitch turbine mixers

Internal Temperature: 232 °C (450 °F). Jacket Pressure: 5.17 bar (75 psi). Jacket Temperature: 232 °C (450 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Diameter: 1,016 mm (40 in). Straight Side Length: 1,143 mm (45 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Alloy Fab

Condition: Refurbished/Rebuilt

Material: Hastelloy - C276

Capacity (Design): 1,325 L (350 gallons)

Internal Pressure: 6.89 bar (100 psi)

• Note for pressure and seal rating" "Pressure in the pressure vessel internal is limited to 100 psig at 450F for this specific mechanical seal design.  If higher internal pressure needed up to the original 600 psig @600F rating, an alternate seal for higher pressure rating should be considered as should gaskets for the specific application."
• Reconditioned Vessel rated for 600 psi at 600 degrees F. , jacket good for FV/90 psi at 400 psi.
• Assembled with a reconditioned 4 RDTW drive with a mechanical seal with new bearings and seals and motor.
• New -Gear box recondition, new mechanical seal, agitator , assembly run tested, as per Romania

Internal Full Vacuum: Yes. Internal Temperature: 232 °C (450 °F). Jacket Pressure: 6.21 bar (90 psi). Jacket Temperature: 204 °C (400 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 1,219 mm (48 in). Straight Side Length: 965 mm (38 in). Support Type: Legs.
