Stainless Steel 316 Dryer- Ribbon & Paddle - IPP# 248076

Type: Dryer- Ribbon & Paddle

Manufacturer: Langfields Ltd

Condition: Used

Material: Stainless Steel 316

Design Capacity: 6.5 m3 (229.5 ft3)

Operating Capacity: 4 m3 (141.3 ft3)

• weld dished ends.
• approximately 1.4m diameter x 3m straight side.
• driven by dual purpose motor rated for either 50 or 60 Hz. 30/35kW, 3/50-60/380-415/440-480 volt, 1470/1770 rpm IP55 motor via a reduction gearbox.

Vessel Pressure: 0.5 bar (7.3 psi). Vessel Temperature: 150 °C (302 °F). Jacket Pressure: 3.5 bar (50.8 psi). Jacket Temperature: 150 °C (302 °F). Heating Type: Steam. Jacket Type: Standard. Agitation Shaft Sealing: Packing.

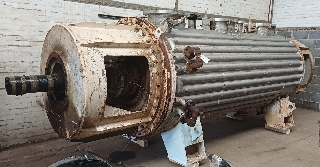

Type: Dryer- Ribbon & Paddle

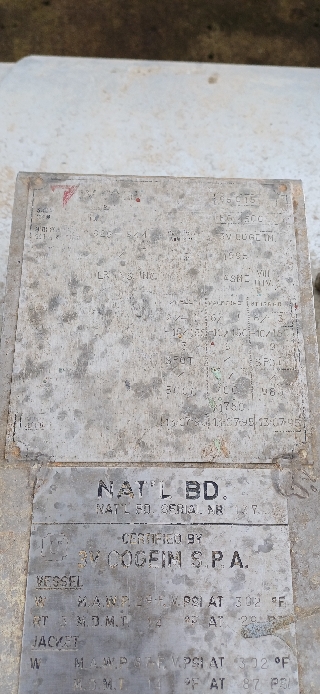

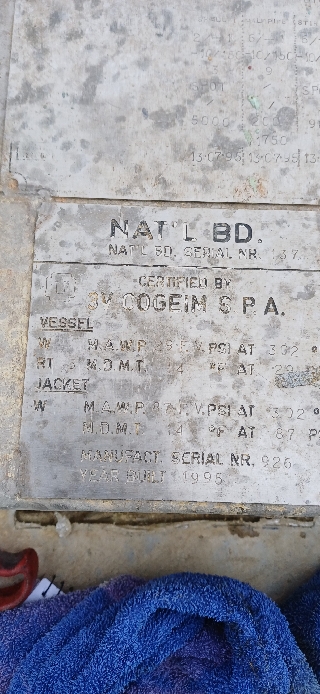

Manufacturer: Cogeim

Condition: Used

Material: Stainless Steel 316

Design Capacity: 4.5 m3 (158.9 ft3)

Vessel Pressure: 2 bar (29 psi)

• Pressure internal 2 bar + full vacuum @ 150 degrees C, jacket 6 bar + full vacuum @ 150 degrees C, paddle 6 bar + full vacuum @ 150 degrees C, driven by 45kW motor which is de-rated to 37kW via an inverter, reduction gearbox, approx. 1.2m diameter x 3.5m straight side,
• (1) 390m3/hr 316 stainless steel vacuum pump, manufactured by Hargreaves, model HER 1390, suction pressure 30 mbar abs @ 100 degrees C, driven by 11kw, 1460 rpm motor,

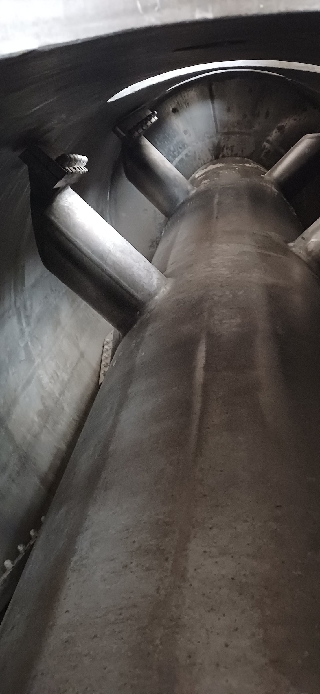

Vessel Temperature: 150 °C (302 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 150 °C (302 °F). Jacket Type: Standard. Ribbon Type: Paddles. Agitation Shaft Sealing: Mechanical.
