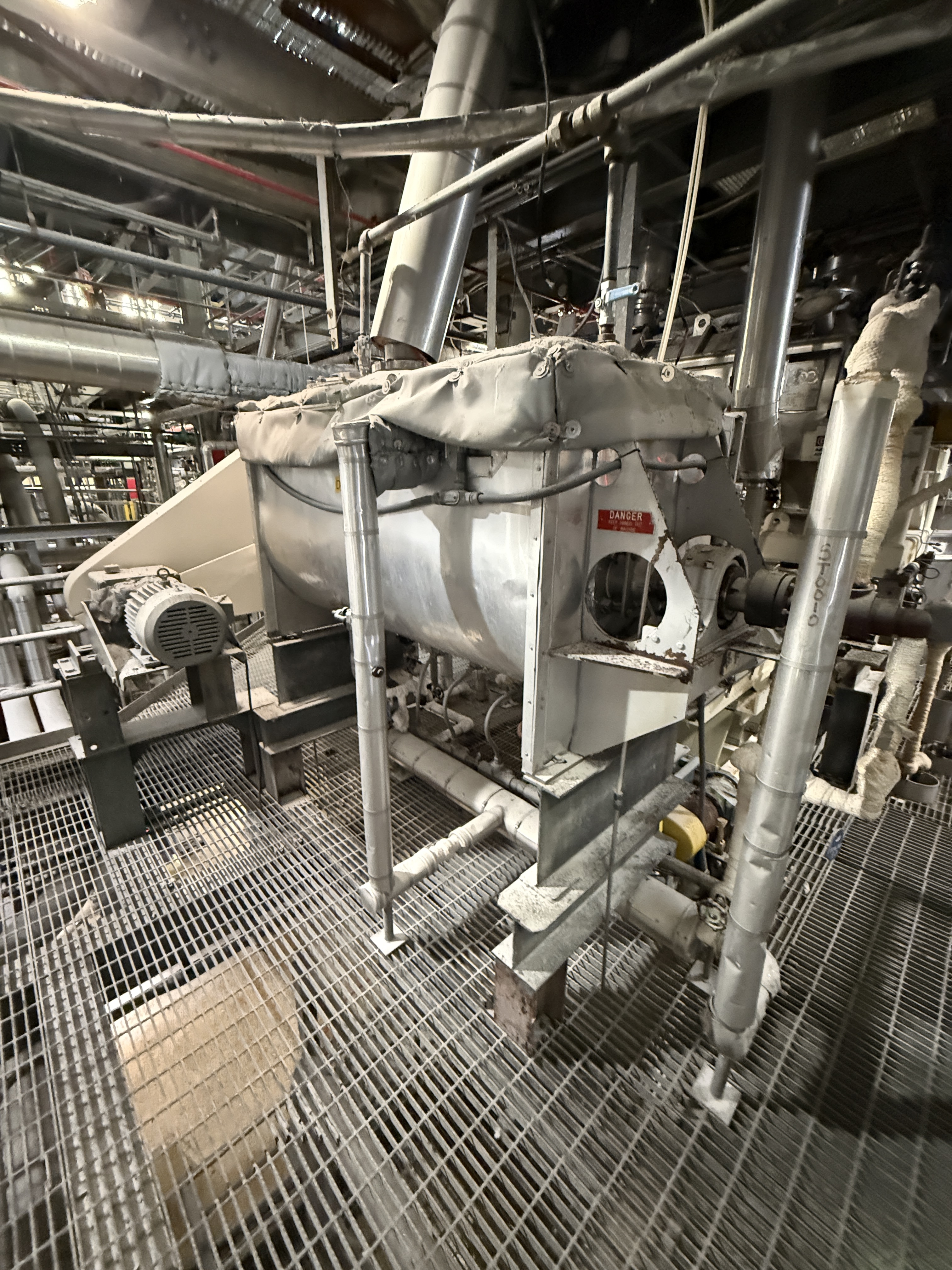

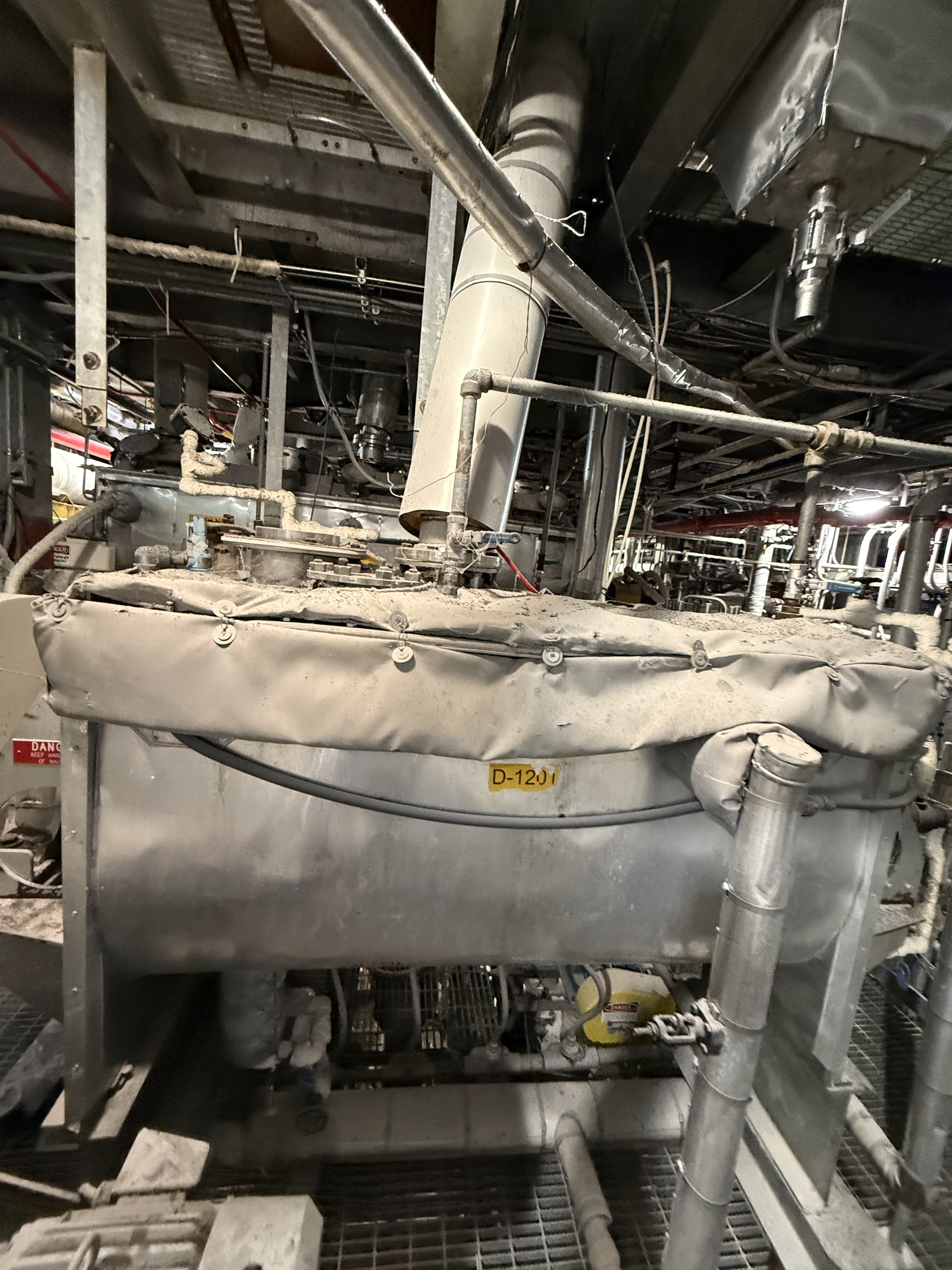

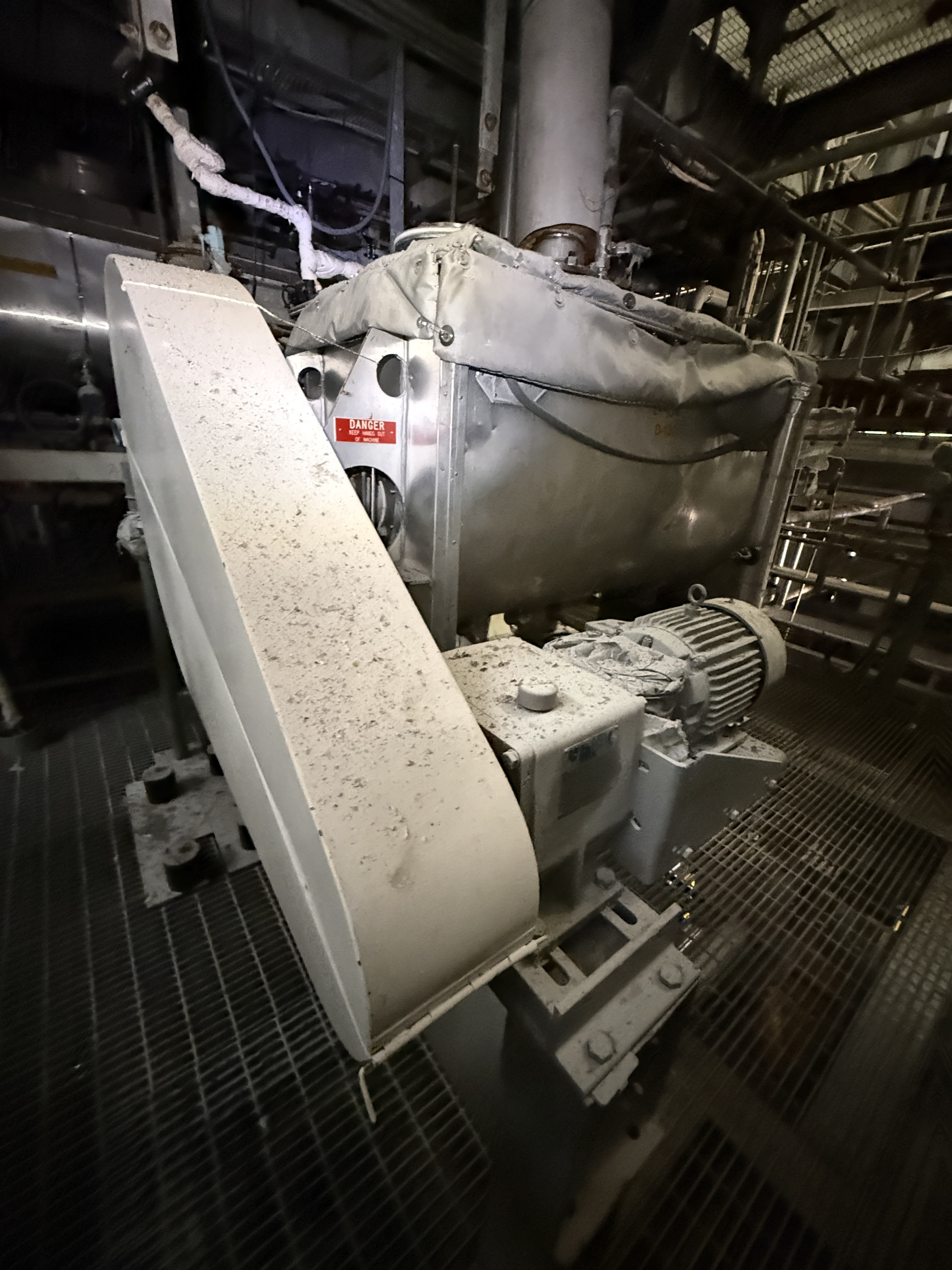

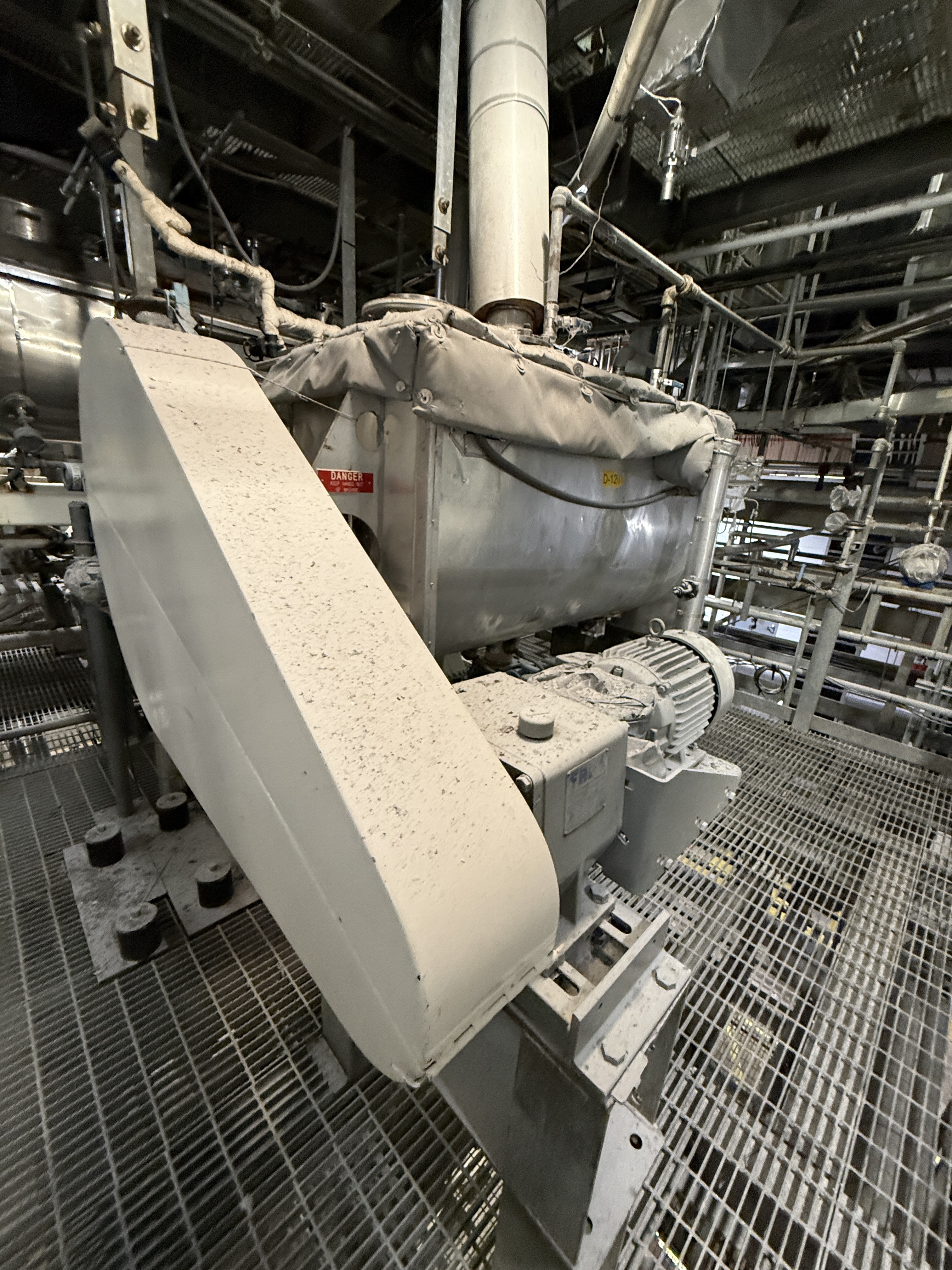

14 ft3 Stainless Steel 304 Hosokawa Bepex TDJS 26-5 TorusDisc Dryer - IPP# 249016

Type: Dryer- Ribbon & Paddle

Manufacturer: Hosokawa Bepex

Model: TorusDisc TDJS 48-15

Condition: Used

Material: Stainless Steel 304

Design Capacity: 4.1 m3 (145 ft3)

Vessel Pressure: 1.03 bar (15 psi)

• Internal vessel not U-stamped. Designed for 15psi at 600 deg. F. Temperature rating does not apply to elastomers & gaskets.
• Vessel interior finished with BEPEX #300 finish.
• Rotor finished with BEPEX #200 finish.
• Jacket & rotor vacuum capable at 600 deg F.

Vessel Temperature: 316 °C (600 °F). Jacket Pressure: 5.17 bar (75 psi). Jacket Temperature: 316 °C (600 °F). Agitator Pressure: 5.17 bar (75 psi). Agitator Temperature: 271 °C (520 °F). Operational mode: Continuous. Heating Transfer Surface Area: 58.3 m² (628 ft²). Heating Type: Steam, Hot Oil. Shaft Cored for Heating/Cooling: Yes. Jacket Type: Plate Coil. Ribbon Type: Disc. Agitation Shaft Sealing: Packing.

Type: Dryer- Ribbon & Paddle

Manufacturer: VOMM Turbotechnologia

Condition: Used

Material: Stainless Steel 304

Design Capacity: 1.25 m3 (44.1 ft3)

Operating Capacity: 0.7 m3 (24.7 ft3)

jacketed 'Turbo' continuous paddle dryer
CE
600mm inside diameter x 3820mm straight side,
bolt flat ends
3 x 304 stainless steel (1.4307) jacket sections on straight side only
each jacket is 711mm outside diameter x 1246mm long

Vessel Pressure: 5 bar (72.5 psi). Vessel Temperature: 188 °C (370 °F). Jacket Pressure: 12 bar (174 psi). Jacket Temperature: 188 °C (370 °F). Operational mode: Continuous.

Type: Dryer- Ribbon & Paddle

Manufacturer: Roben Manufacturing Co

Model: Nara

Condition: Used

Material: Stainless Steel 304

Design Capacity: 1.08 m3 (38 ft3)

Operating Capacity: 0.708 m3 (25 ft3)

manufactured to a Nara style
Similar to a 5RW, this dryer/cooler contains twin paddles to process the material inside the trough
The total heating surface is 188.7 Sq.Ft. The paddle heating surface area is 136.7 Sq.ft. and the jacket heating surface area is 52 sq. ft.
This dryer is manufactured for a continuous operation, and has been constructed to ASME code,
The two agitators are 15” diameter x 10’ long
The trough internally measures 131”long x 39” wide
The processor has a dome top vapor hood cover, and the unit is belt driven by a 10 HP AC motor, 3 phase, 60 Hz, 230/460 volt

Jacket Pressure: 5.17 bar (75 psi). Jacket Temperature: 204 °C (400 °F). Operational mode: Continuous. Heating Transfer Surface Area: 17.6 m² (189 ft²). Ribbon Type: Paddles.

Type: Dryer- Ribbon & Paddle

Manufacturer: Strong Scott

Condition: Used

Material: Stainless Steel 304

Design Capacity: 0.85 m3 (30 ft3)

Operating Capacity: 0.566 m3 (20 ft3)

24" diameter x 15' long
jacketed Solidaire dryer
Rotor has adjustable pitch paddles and was
Openings: top 1-6" feed end, 1-6" and 1-6" discharge

Heating Transfer Surface Area: 8.73 m² (94 ft²). Jacket Type: Standard.
