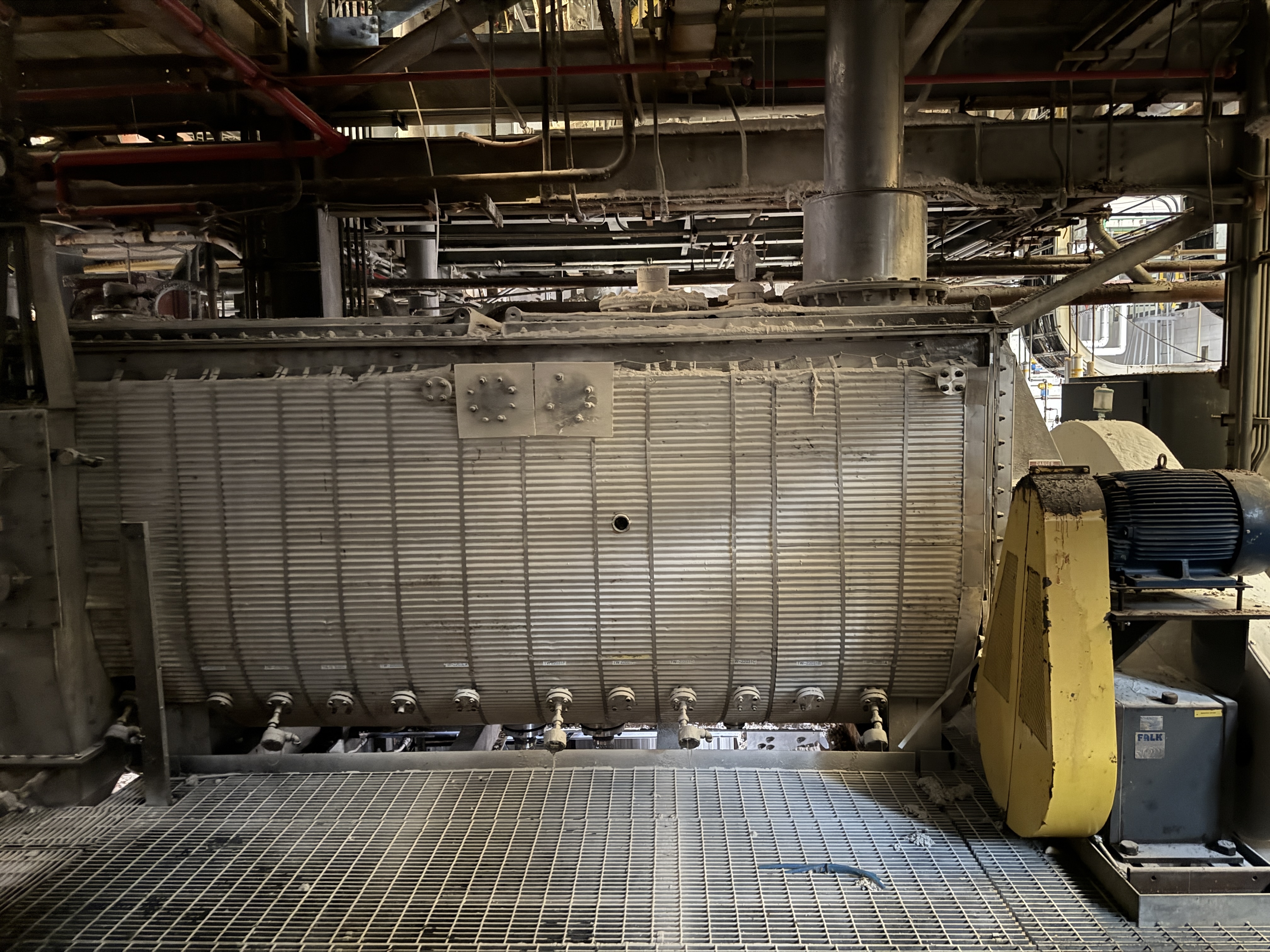

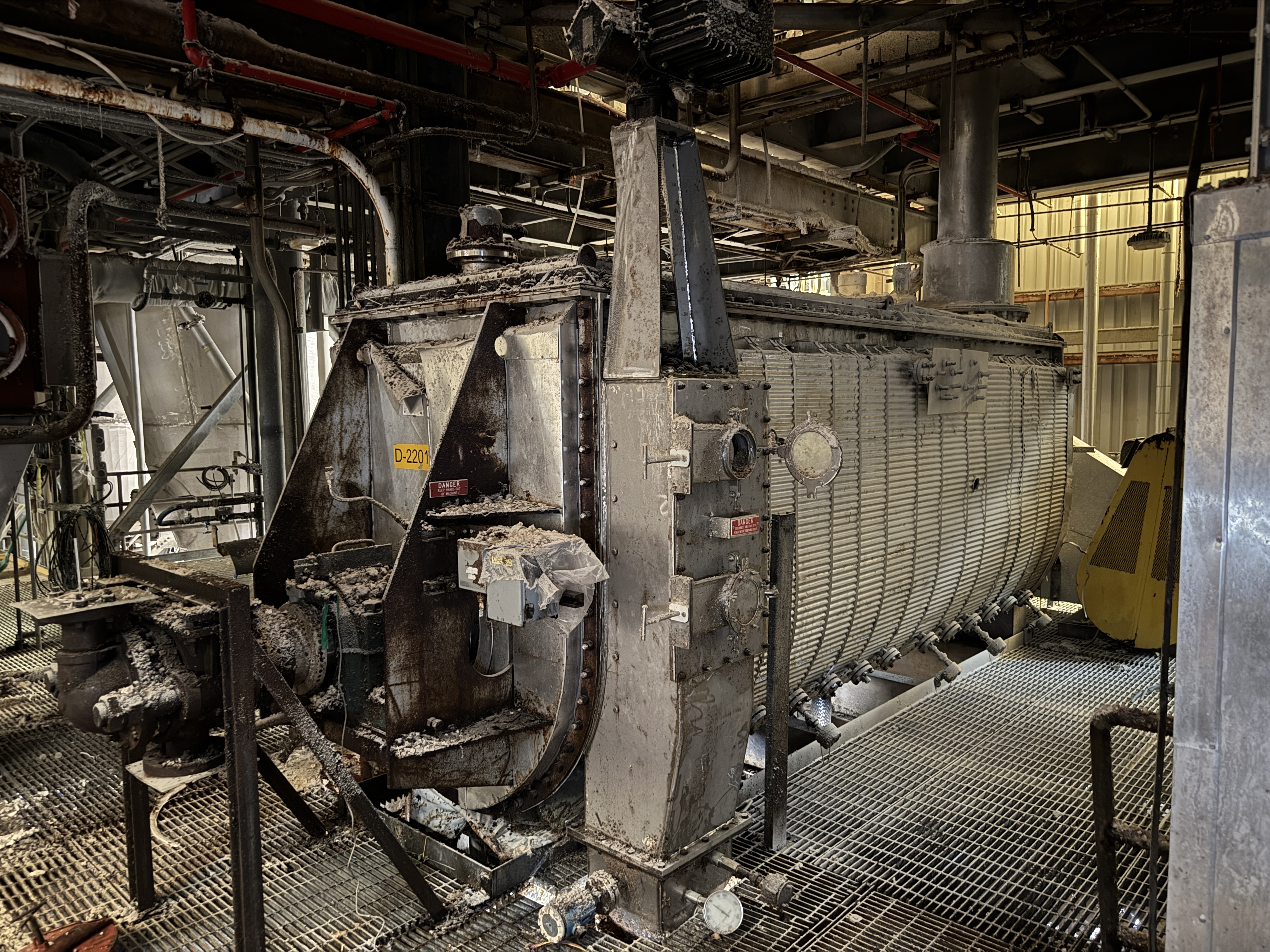

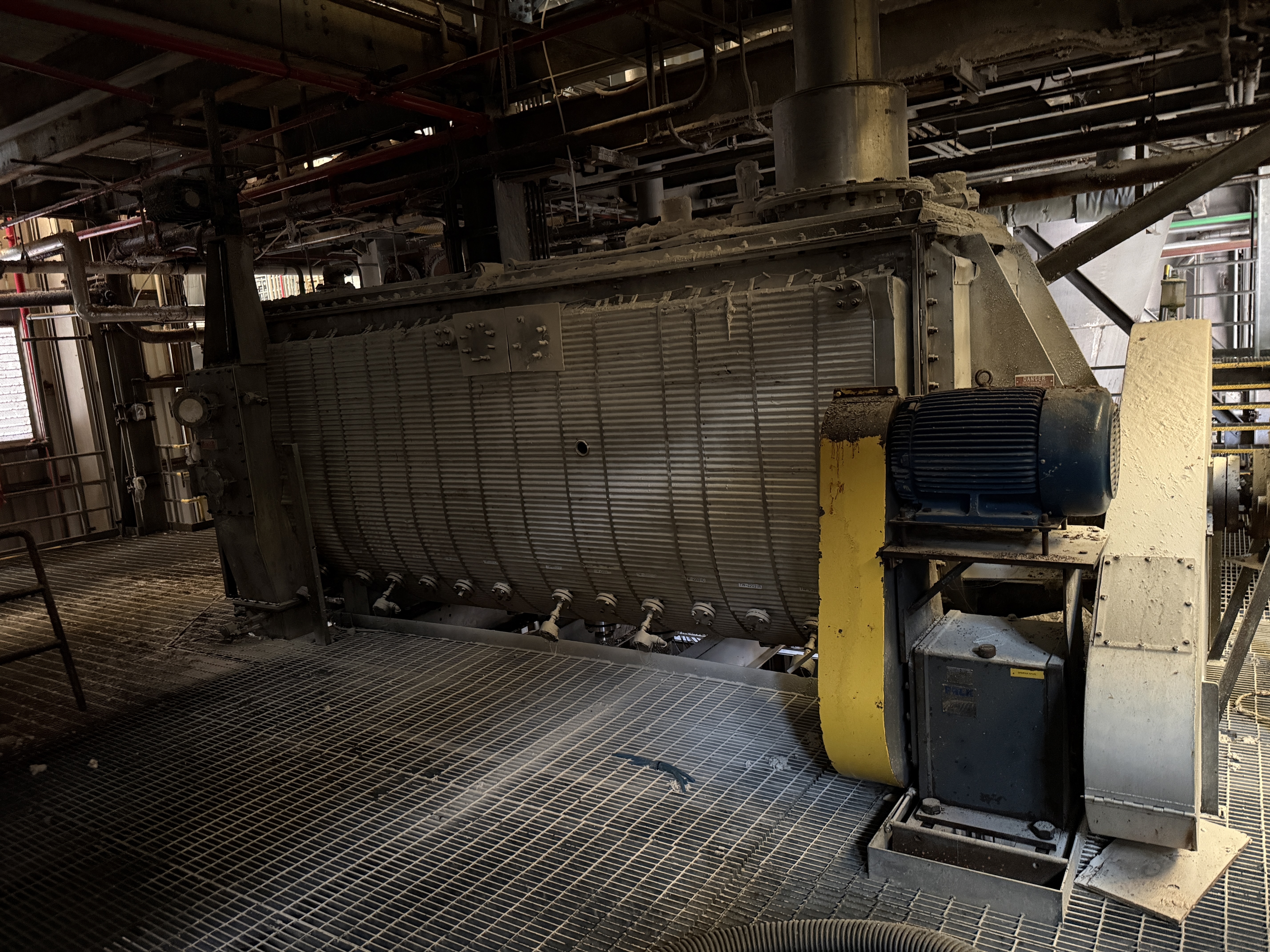

Stainless Steel 304 Hosokawa Bepex TDJS 48-15 TorusDisc Dryer - IPP# 249066

Type: Dryer- Ribbon & Paddle

Manufacturer: Hosokawa Bepex

Model: TorusDisc TDJS 26-5

Condition: Used

Material: Stainless Steel 304

Design Capacity: 0.4 m3 (14.1 ft3)

Vessel Pressure: 1.01 bar (14.7 psi)

• Shell 0.25" thick, jacket 0.135" thick, rotor discs 0.375" thick.
• Cored rotor rated for 350 psi at 450 deg F.

Vessel Temperature: 37.8 °C (100 °F). Jacket Pressure: 24.1 bar (350 psi). Jacket Temperature: 232.2 °C (450 °F). Agitator Pressure: 24.1 bar (350 psi). Agitator Temperature: 232.2 °C (450 °F). Heating Transfer Surface Area: 8.7 m² (93.6 ft²). Heating Type: Steam. Shaft Cored for Heating/Cooling: Yes. Jacket Type: Dimple. Ribbon Type: Disc.

Type: Dryer- Ribbon & Paddle

Manufacturer: VOMM Turbotechnologia

Condition: Used

Material: Stainless Steel 304

Design Capacity: 1.25 m3 (44.1 ft3)

Operating Capacity: 0.7 m3 (24.7 ft3)

jacketed 'Turbo' continuous paddle dryer CE 600mm inside diameter x 3820mm straight side, bolt flat ends 3 x 304 stainless steel (1.4307) jacket sections on straight side only each jacket is 711mm outside diameter x 1246mm long

Vessel Pressure: 5 bar (72.5 psi). Vessel Temperature: 188 °C (370.4 °F). Jacket Pressure: 12 bar (174 psi). Jacket Temperature: 188 °C (370.4 °F). Operational mode: Continuous.

Type: Dryer- Ribbon & Paddle

Manufacturer: Roben Manufacturing Co

Model: Nara

Condition: Used

Material: Stainless Steel 304

Design Capacity: 1.08 m3 (38 ft3)

Operating Capacity: 0.71 m3 (25 ft3)

manufactured to a Nara style Similar to a 5RW, this dryer/cooler contains twin paddles to process the material inside the trough The total heating surface is 188.7 Sq.Ft. The paddle heating surface area is 136.7 Sq.ft. and the jacket heating surface area is 52 sq. ft. This dryer is manufactured for a continuous operation, and has been constructed to ASME code, The two agitators are 15” diameter x 10’ long The trough internally measures 131”long x 39” wide The processor has a dome top vapor hood cover, and the unit is belt driven by a 10 HP AC motor, 3 phase, 60 Hz, 230/460 volt

Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 204.4 °C (400 °F). Operational mode: Continuous. Heating Transfer Surface Area: 17.6 m² (189 ft²). Ribbon Type: Paddles.

Type: Dryer- Ribbon & Paddle

Manufacturer: Strong Scott

Condition: Used

Material: Stainless Steel 304

Design Capacity: 0.85 m3 (30 ft3)

Operating Capacity: 0.57 m3 (20 ft3)

24" diameter x 15' long jacketed Solidaire dryer Rotor has adjustable pitch paddles and was Openings: top 1-6" feed end, 1-6" and 1-6" discharge

Heating Transfer Surface Area: 8.7 m² (94 ft²). Jacket Type: Standard.
