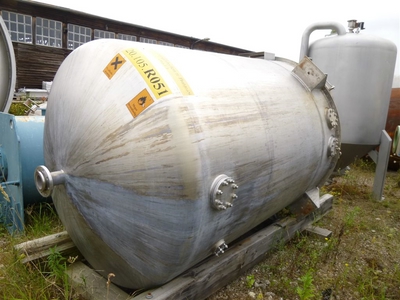

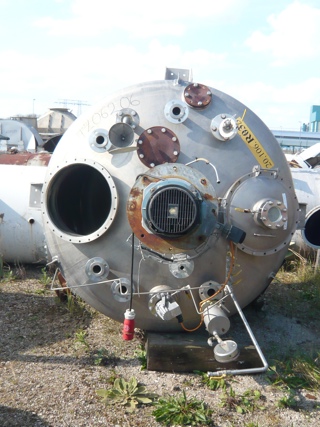

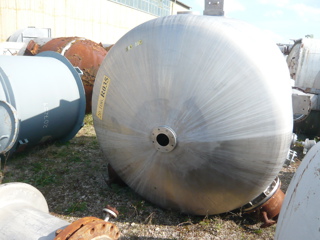

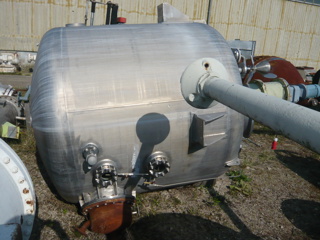

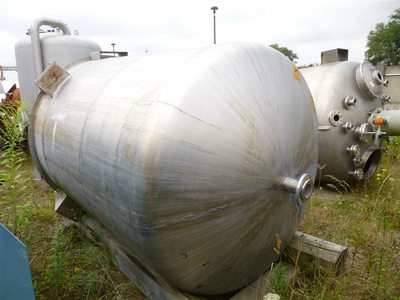

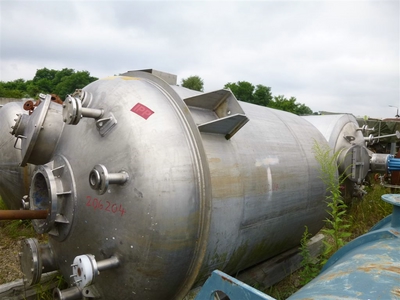

Titanium Permascand Tank - IPP# 206204

Type: Tank

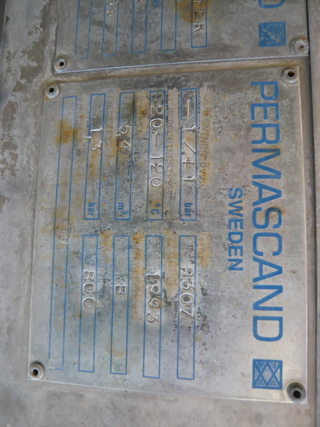

Manufacturer: Permascand

Condition: Used

Material: Titanium

Capacity (Design): 5,400 L (1,450 gallons)

Orientation: Vertical

• Constructed of ASTM B 265 Gr. 2 Titanium.

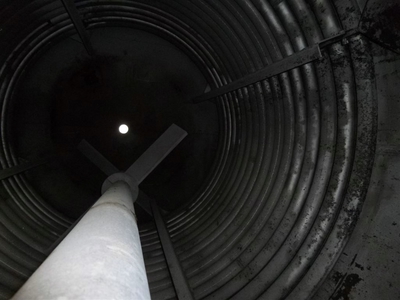

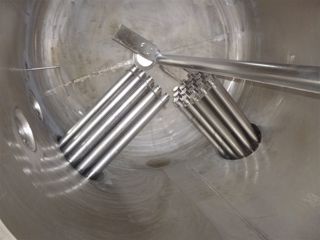

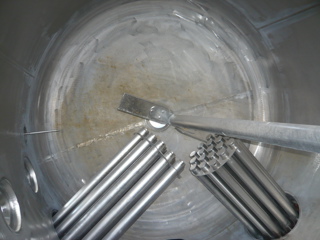

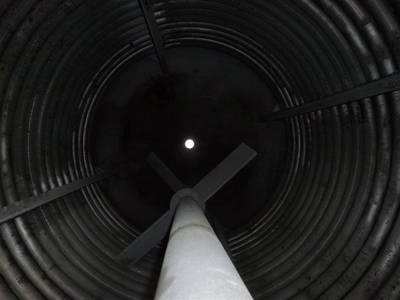

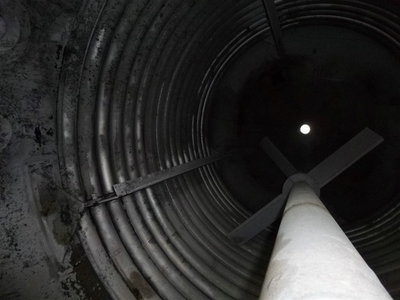

• With (2) internal 2.3 m² coils mounted on tank lower straight side.

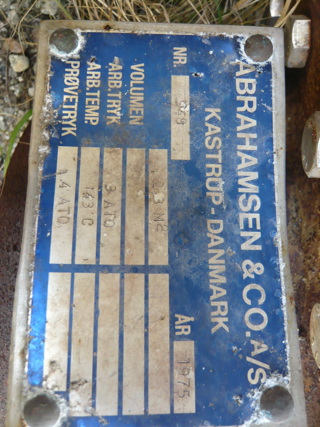

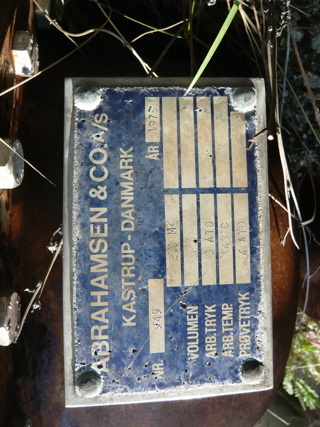

• Coils designed for 3 atm at 143 deg. C.

Diameter: 1,900 mm (74.8 in). Straight-side Length: 1,400 mm (55.1 in). Internal Pressure: 1 bar (14.5 psi). Internal Temperature: 120 °C (248 °F). Does it have Agitation ?: Yes. Does it have an Internal Coil?: Yes. Vacuum: Yes. Support: Lugs.

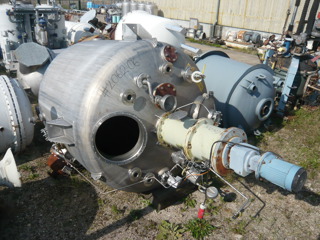

Type: Tank

Manufacturer: Mitsui

Condition: Used

Material: Titanium

Clad: Yes

Capacity (Design): 37,800 L (10,000 gallons)

Orientation: Vertical

• Constructed of ASTM A516 Grade 70 carbon steel, with IMI 115 titanium cladding.
• Internal mixing equipment constructed from Grade 2 titanium.
• Top head: 17.5mm carbon steel + 3mm titanium cladding.
• Bottom head: 35mm carbon steel + 3mm titanium cladding.
• Tank shell: 35mm carbon steel + 3mm titanium cladding.

Diameter: 2,750 mm (108 in). Straight-side Length: 5,950 mm (234 in). Internal Pressure: 29.3 bar (425 psi). Internal Temperature: 252 °C (485.6 °F). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Lugs.

Type: Tank

Manufacturer: Mitsui

Condition: Used

Material: Titanium

Clad: Yes

Capacity (Design): 37,800 L (10,000 gallons)

Orientation: Vertical

• Constructed of ASTM A516 Grade 70 carbon steel, with IMI 115 titanium cladding.
• Internal mixing equipment constructed from Grade 2 titanium.
• Top head: 17.5mm carbon steel + 3mm titanium cladding.
• Bottom head: 35mm carbon steel + 3mm titanium cladding.
• Tank shell: 35mm carbon steel + 3mm titanium cladding.

Diameter: 2,750 mm (108 in). Straight-side Length: 5,950 mm (234 in). Internal Pressure: 29.3 bar (425 psi). Internal Temperature: 252 °C (485.6 °F). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Lugs.

Type: Tank

Manufacturer: Mitsui

Condition: Used

Material: Titanium

Clad: Yes

Capacity (Design): 37,800 L (10,000 gallons)

Orientation: Vertical

• Constructed of ASTM A516 Grade 70 carbon steel, with IMI 115 titanium cladding.
• Internal mixing equipment constructed from Grade 2 titanium.
• Top head: 17.5mm carbon steel + 3mm titanium cladding.
• Bottom head: 35mm carbon steel + 3mm titanium cladding.
• Tank shell: 35mm carbon steel + 3mm titanium cladding.

Diameter: 2,750 mm (108 in). Straight-side Length: 5,950 mm (234 in). Internal Pressure: 29.3 bar (425 psi). Internal Temperature: 252 °C (485.6 °F). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Lugs.
