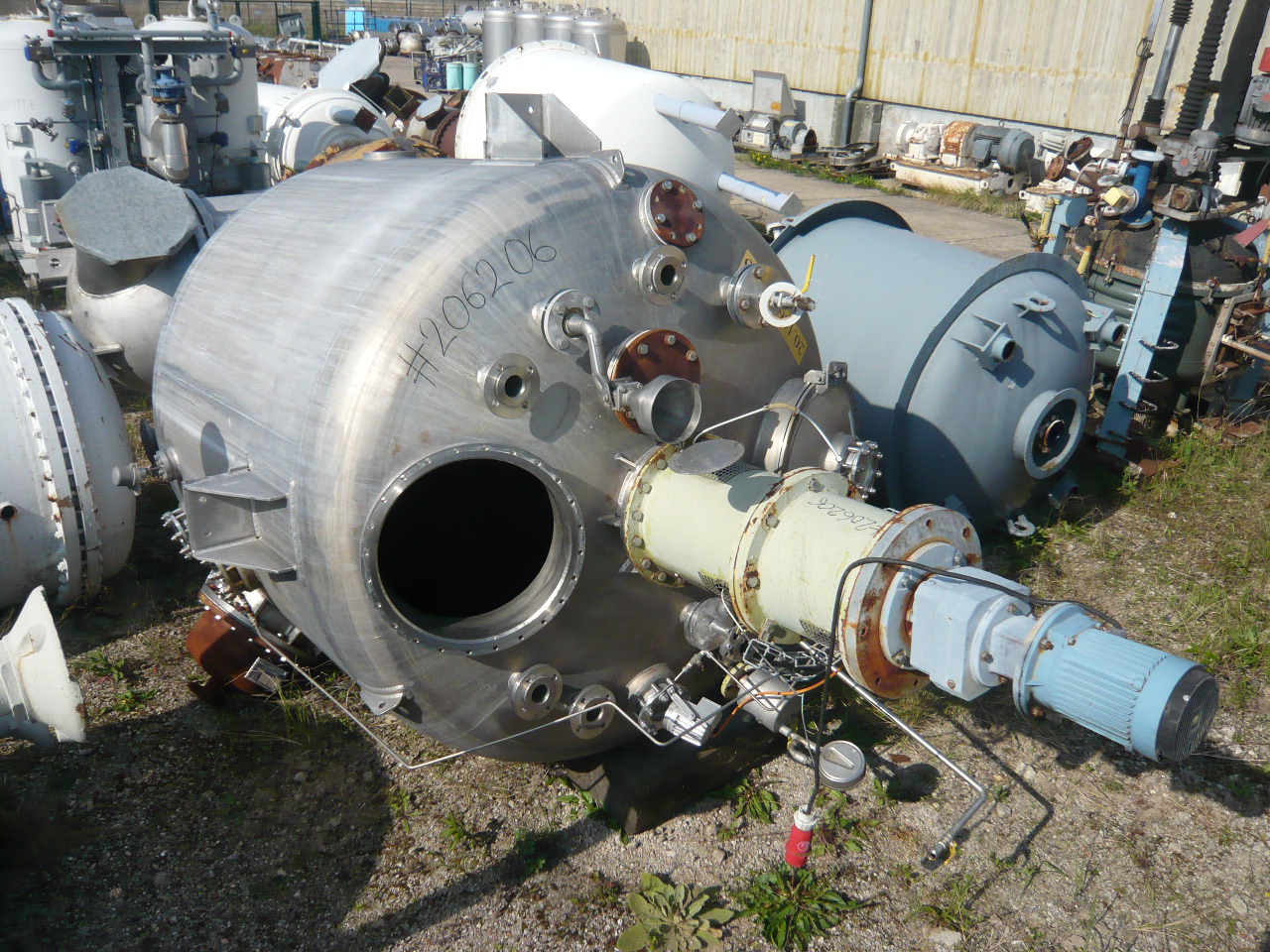

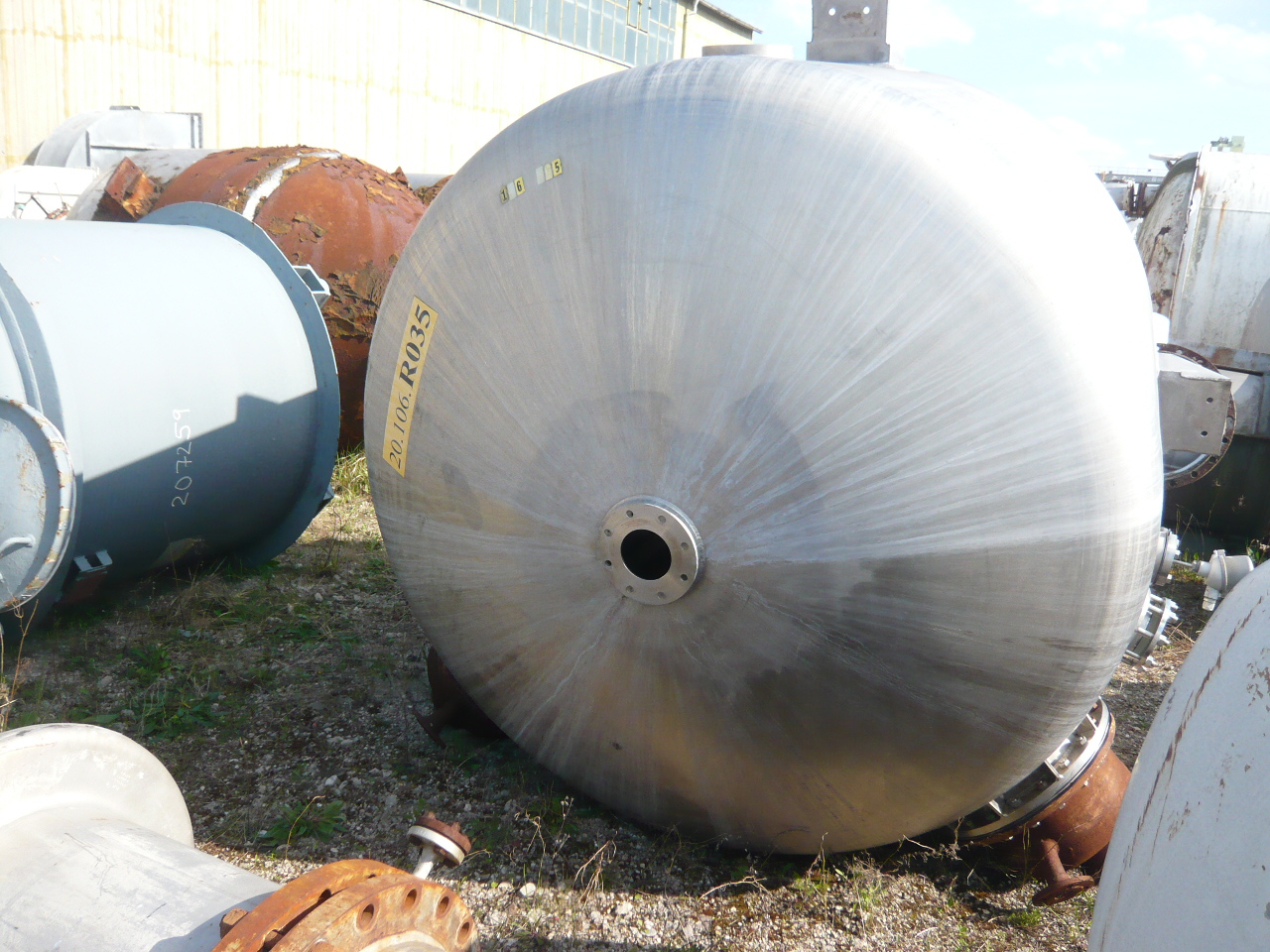

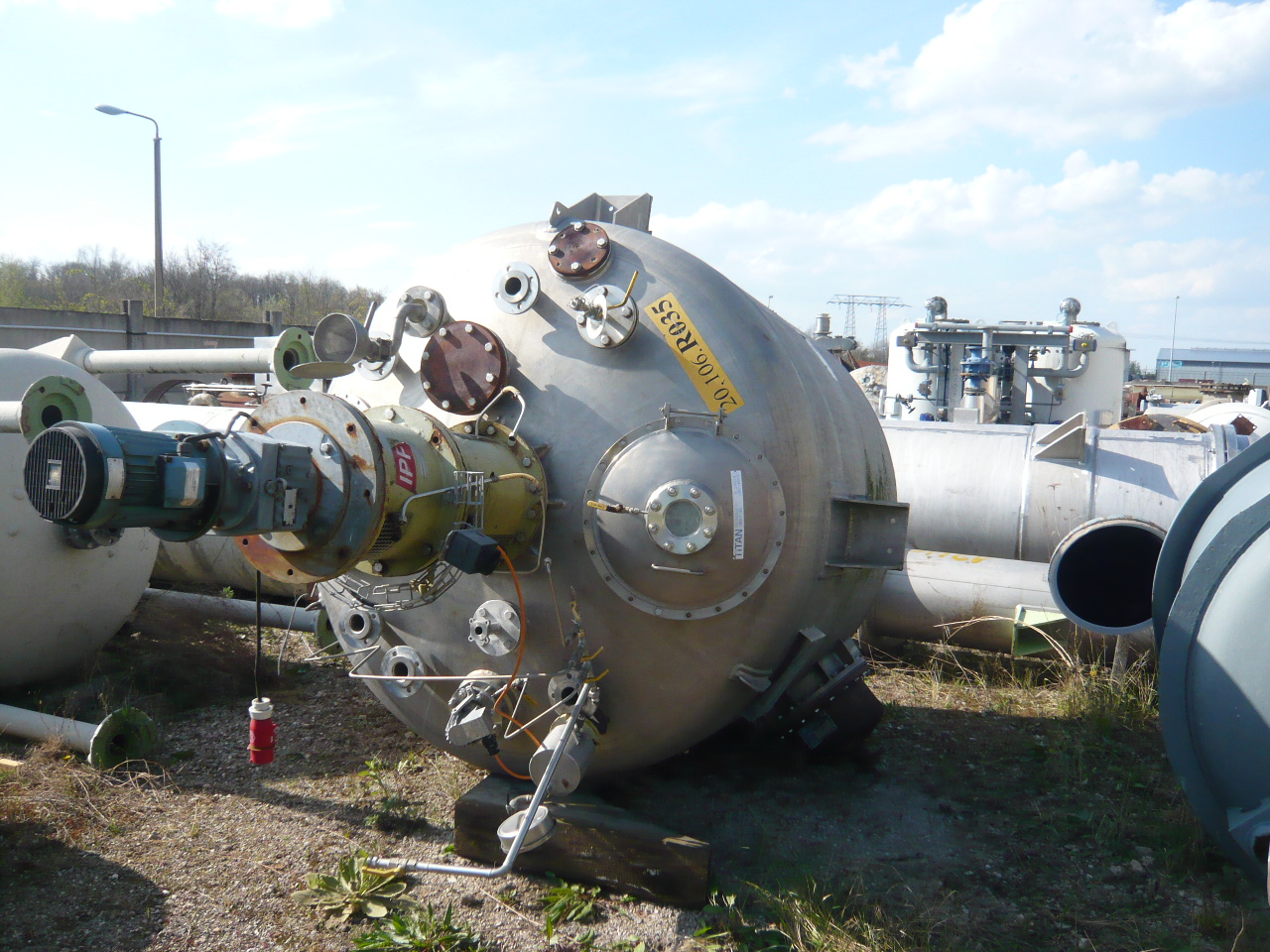

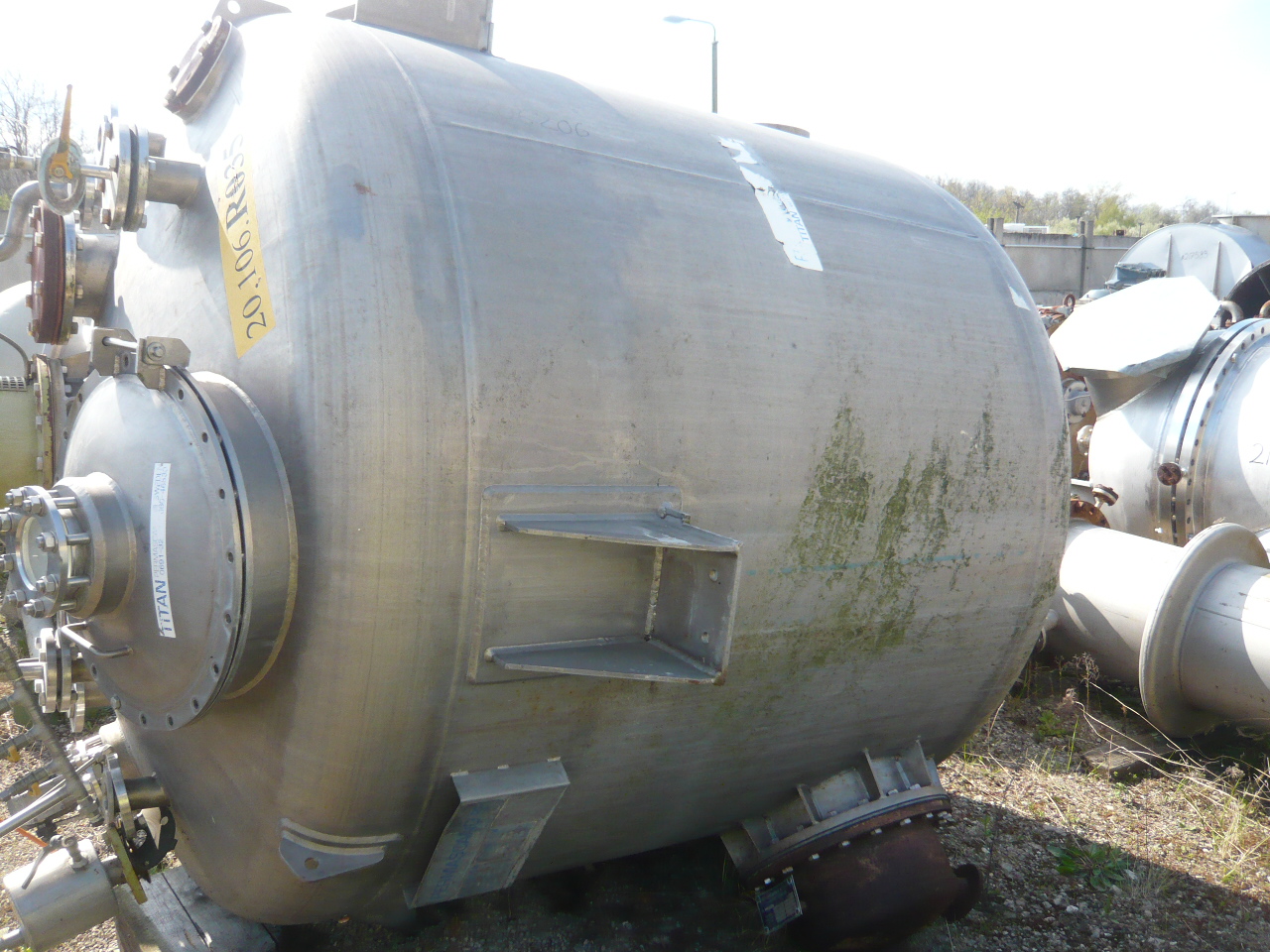

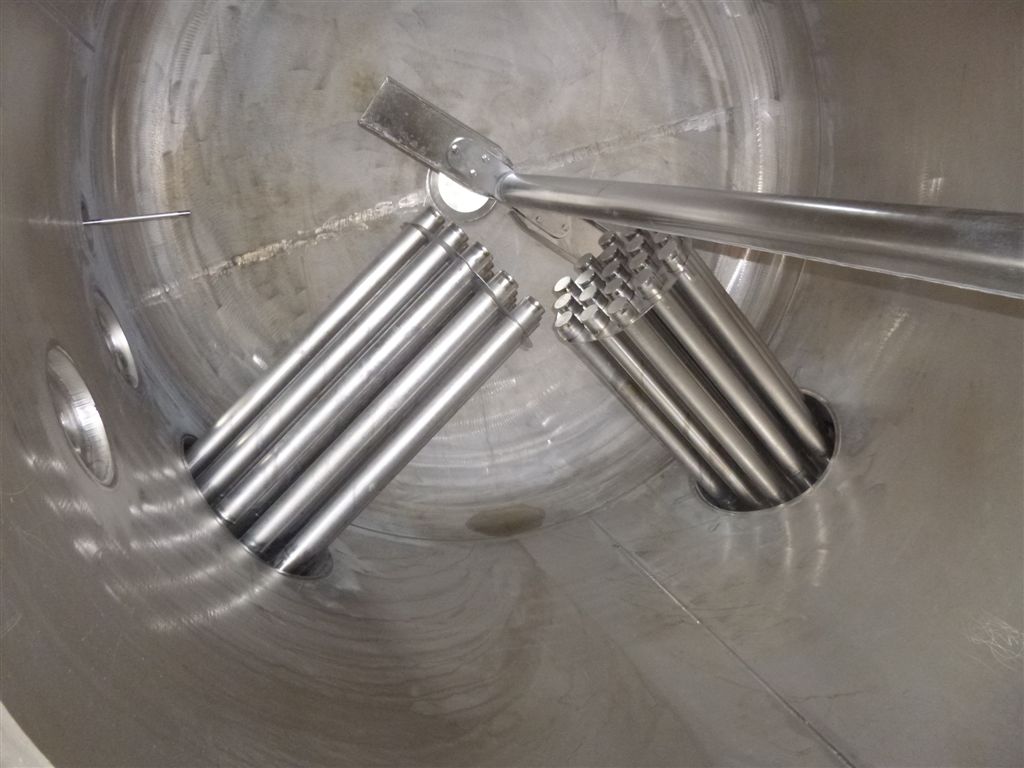

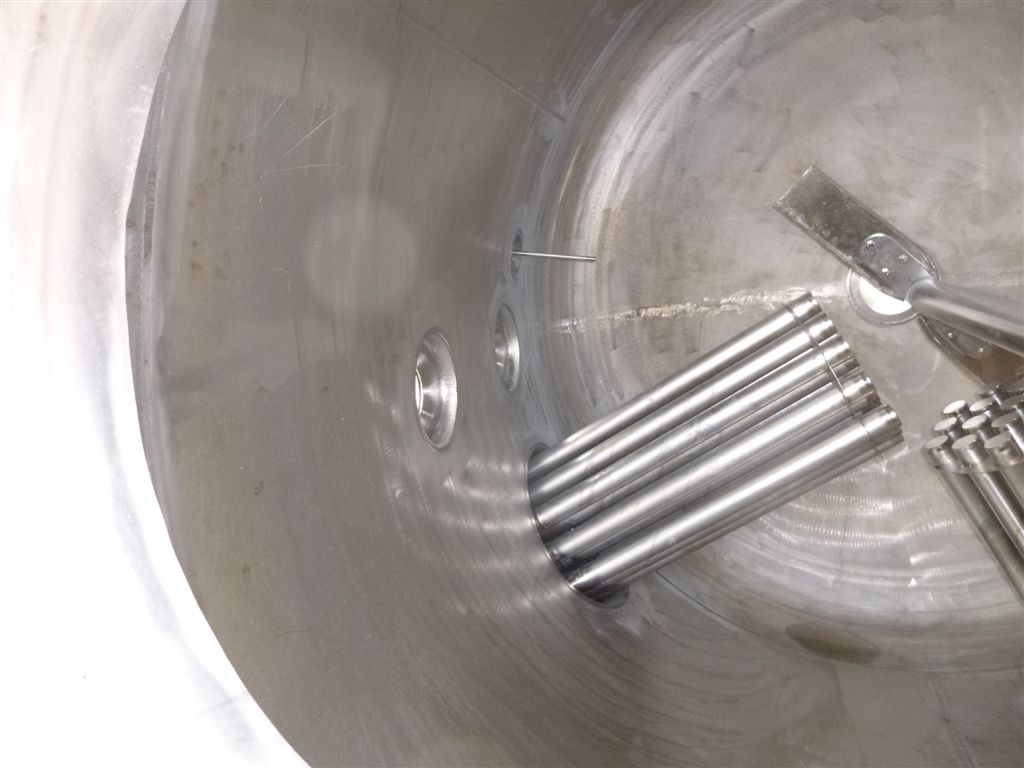

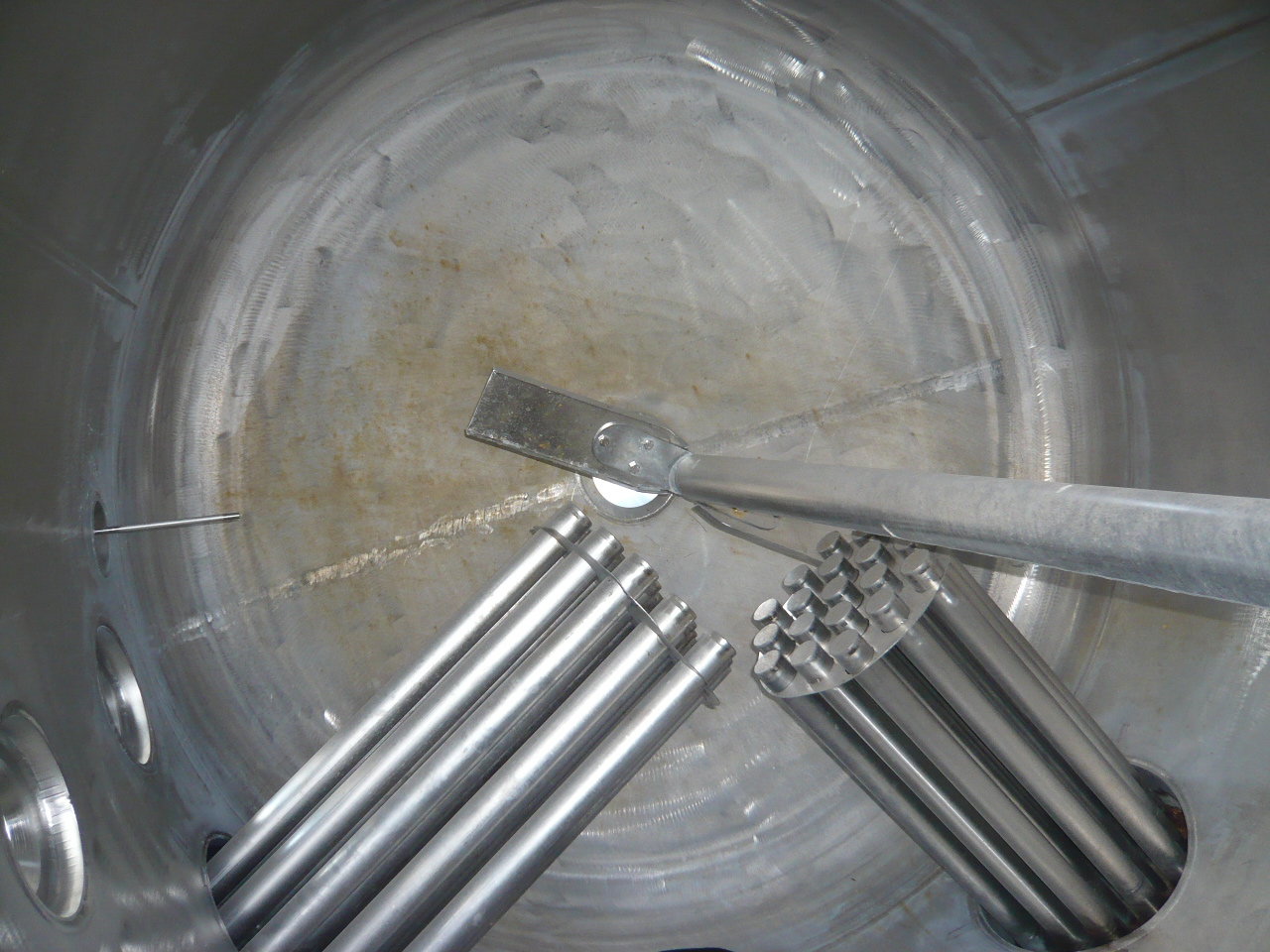

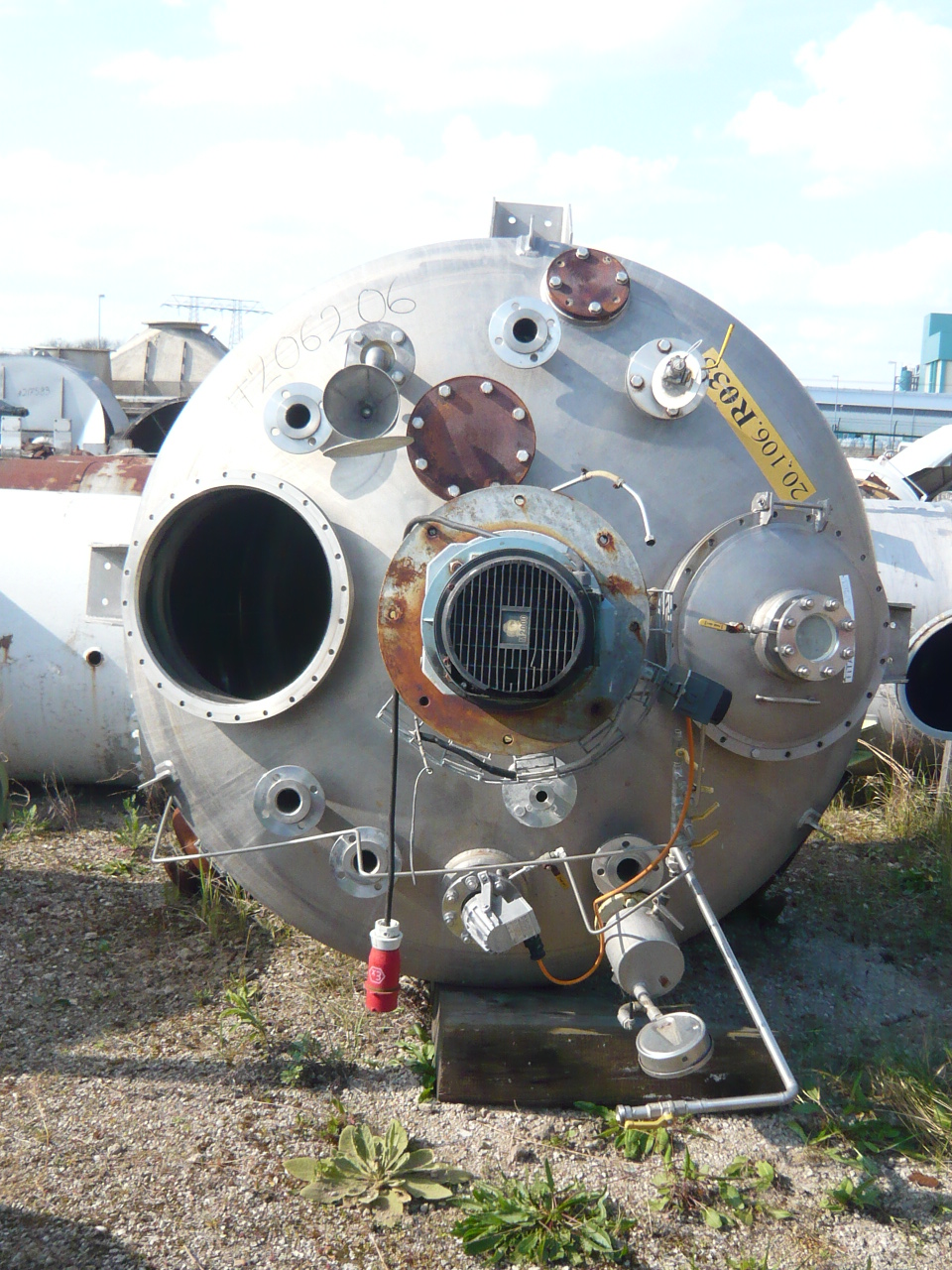

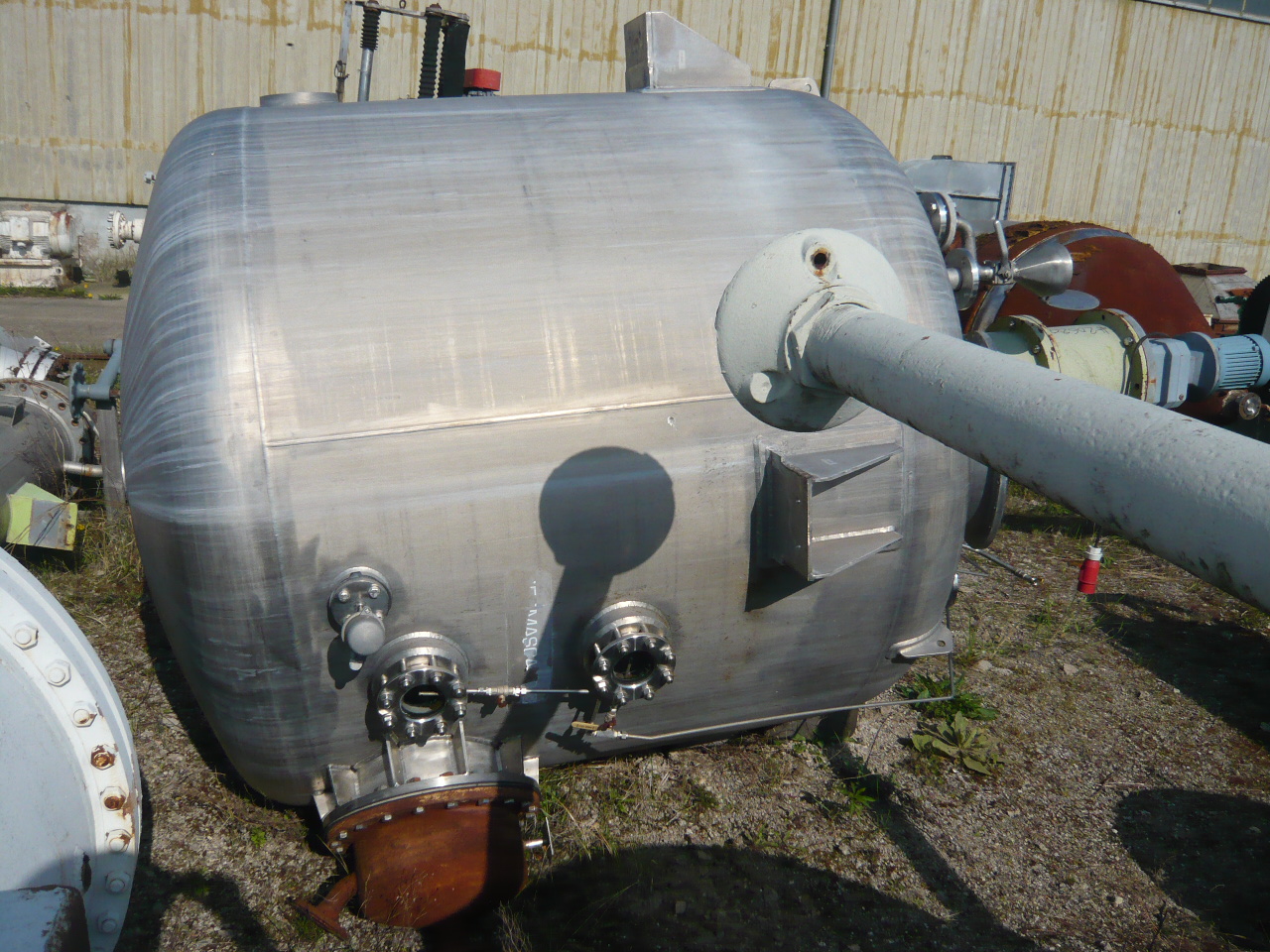

Titanium Permascand Tank - IPP# 206206

Type: Tank

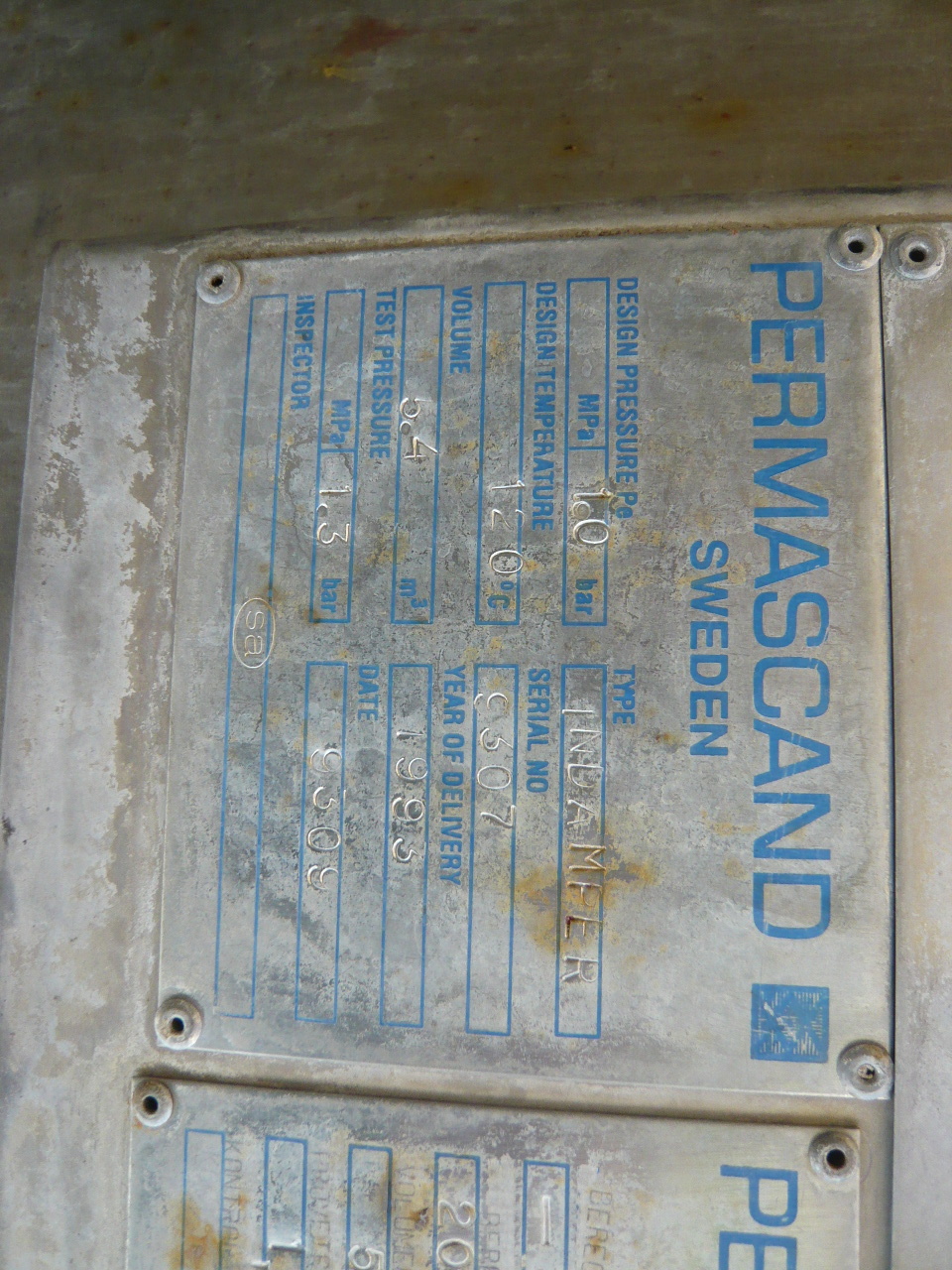

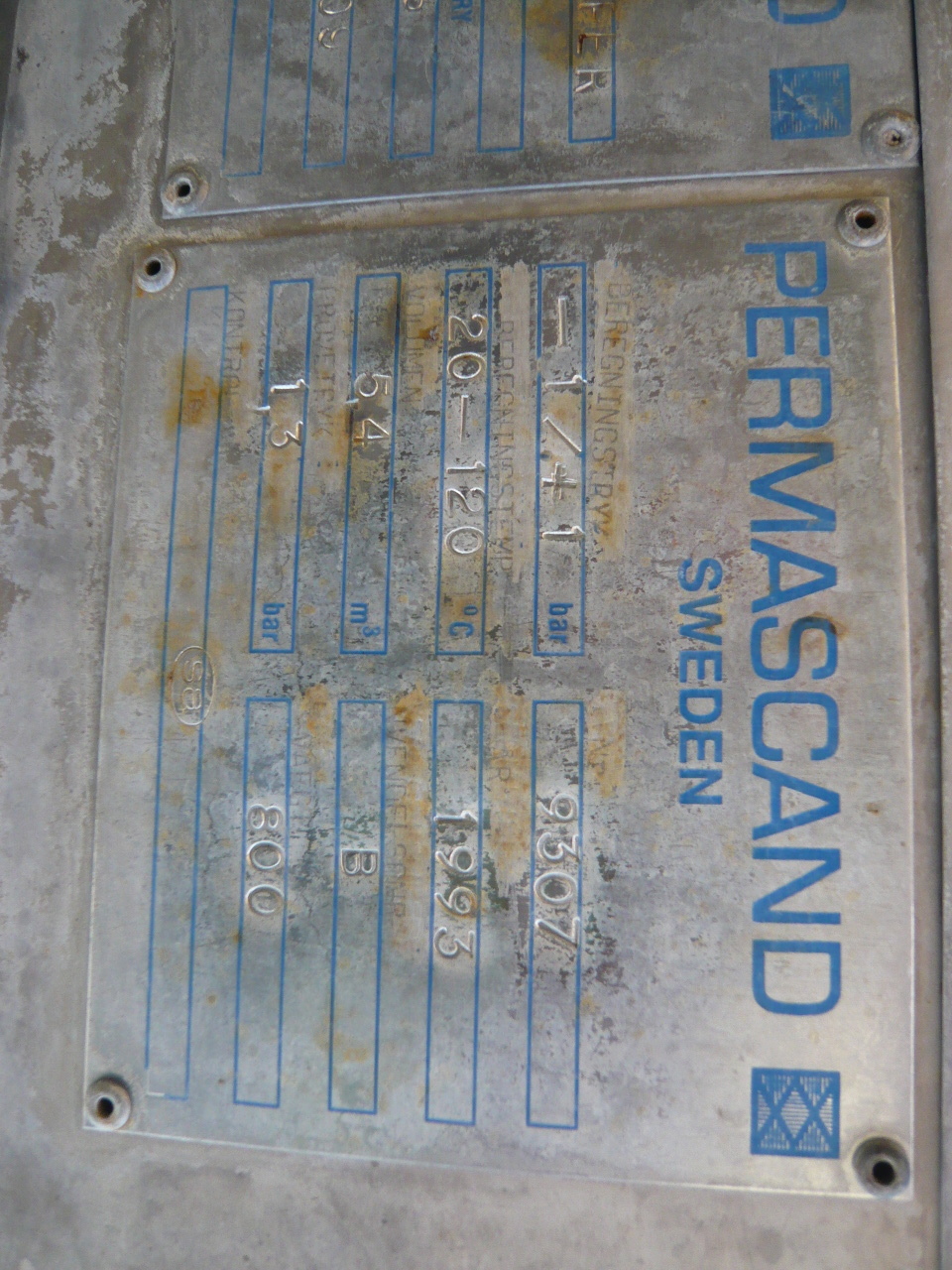

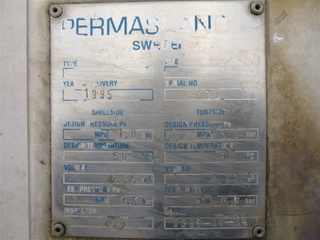

Manufacturer: Permascand

Condition: Used

Material: Titanium

Capacity (Design): 6,650 L (1,750 gallons)

Orientation: Vertical

• Constructed of ASTM B265 Gr.2 titanium.
• Variable head thickness: top head 4.5mm thick, bottom head 3mm thick.

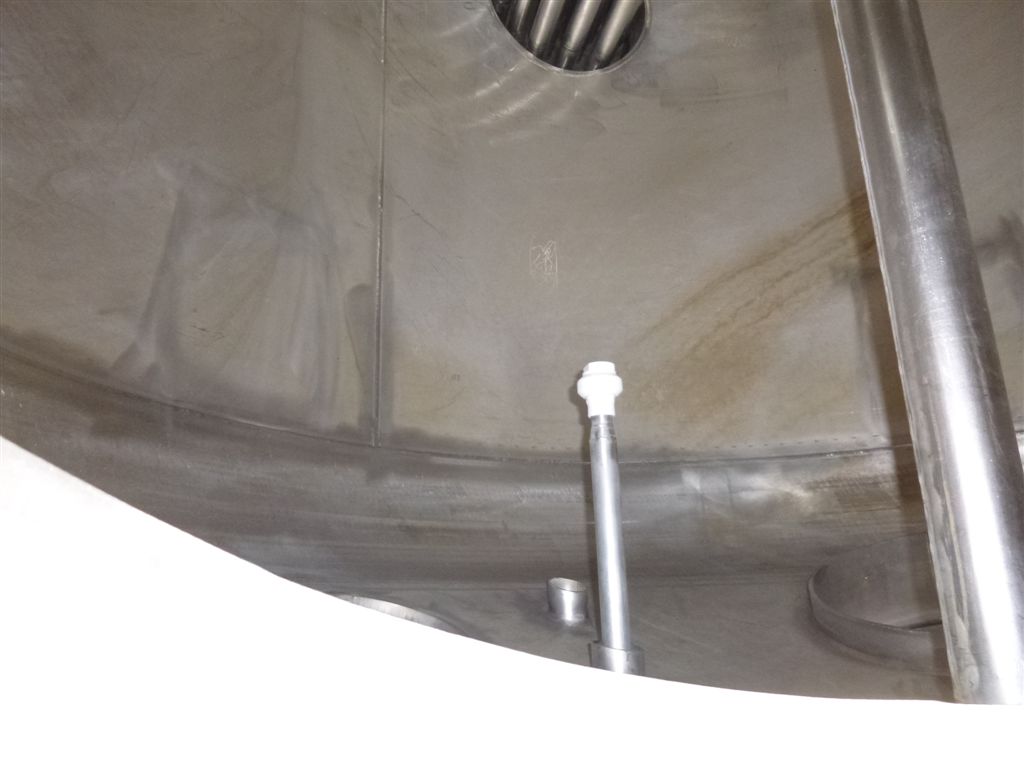

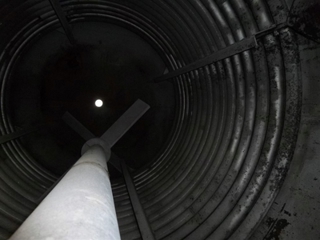

Diameter: 1,800 mm (70.9 in). Straight-side Length: 2,250 mm (88.6 in). Internal Pressure: 1 bar (14.5 psi). Internal Temperature: 50 °C (122 °F). Does it have an Internal Coil?: Yes. Jacket Type: Internal Pipe Coil. Jacket Material: Titanium. Jacket Pressure: 5 bar (72.5 psi). Jacket Temperature: 50 °C (122 °F). Support: Lugs.

Type: Tank

Manufacturer: Mitsui

Condition: Used

Material: Titanium

Clad: Yes

Capacity (Design): 37,800 L (10,000 gallons)

Orientation: Vertical

• Constructed of ASTM A516 Grade 70 carbon steel, with IMI 115 titanium cladding.
• Internal mixing equipment constructed from Grade 2 titanium.
• Top head: 17.5mm carbon steel + 3mm titanium cladding.
• Bottom head: 35mm carbon steel + 3mm titanium cladding.
• Tank shell: 35mm carbon steel + 3mm titanium cladding.

Diameter: 2,750 mm (108 in). Straight-side Length: 5,950 mm (234 in). Internal Pressure: 29.3 bar (425 psi). Internal Temperature: 252 °C (485.6 °F). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Lugs.

Type: Tank

Manufacturer: Mitsui

Condition: Used

Material: Titanium

Clad: Yes

Capacity (Design): 37,800 L (10,000 gallons)

Orientation: Vertical

• Constructed of ASTM A516 Grade 70 carbon steel, with IMI 115 titanium cladding.
• Internal mixing equipment constructed from Grade 2 titanium.
• Top head: 17.5mm carbon steel + 3mm titanium cladding.
• Bottom head: 35mm carbon steel + 3mm titanium cladding.
• Tank shell: 35mm carbon steel + 3mm titanium cladding.

Diameter: 2,750 mm (108 in). Straight-side Length: 5,950 mm (234 in). Internal Pressure: 29.3 bar (425 psi). Internal Temperature: 252 °C (485.6 °F). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Lugs.

Type: Tank

Manufacturer: Mitsui

Condition: Used

Material: Titanium

Clad: Yes

Capacity (Design): 37,800 L (10,000 gallons)

Orientation: Vertical

• Constructed of ASTM A516 Grade 70 carbon steel, with IMI 115 titanium cladding.
• Internal mixing equipment constructed from Grade 2 titanium.
• Top head: 17.5mm carbon steel + 3mm titanium cladding.
• Bottom head: 35mm carbon steel + 3mm titanium cladding.
• Tank shell: 35mm carbon steel + 3mm titanium cladding.

Diameter: 2,750 mm (108 in). Straight-side Length: 5,950 mm (234 in). Internal Pressure: 29.3 bar (425 psi). Internal Temperature: 252 °C (485.6 °F). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Lugs.
