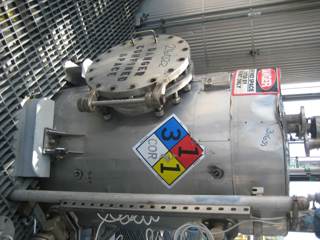

Stainless Steel 304 Tank - IPP# 216014

Type: Tank

Manufacturer: R.C. Technical Welding & Fabrication

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 757 L (200 gallons)

Orientation: Vertical

• Manway Size: 24"

Diameter: 914 mm (36 in). Straight-side Length: 1,150 mm (45 in). Internal Pressure: 5.9 bar (86 psi). Internal Temperature: 273.9 °C (525 °F). Support: Lugs.

Type: Tank

Manufacturer: Continental

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 4,900 L (1,300 gallons)

Orientation: Vertical

Diameter: 1,850 mm (72 in). Straight-side Length: 1,300 mm (52 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 93.3 °C (200 °F). Support: Legs.

Type: Tank

Manufacturer: Continental

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 4,900 L (1,300 gallons)

Orientation: Vertical

• National Board number is not available
• Twi side mounted man ways

Diameter: 1,850 mm (72 in). Straight-side Length: 1,300 mm (52 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 93.3 °C (200 °F). Support: Legs.

Type: Tank

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 115 L (30.4 gallons)

Orientation: Vertical

• Portable vertical tank
• Discharge mechanism: Motorized screw conveyor
• Bolted flat top, coned flat bottom

Diameter: 860 mm (33.9 in). Straight-side Length: 420 mm (16.5 in). Does it have Agitation ?: Yes.
