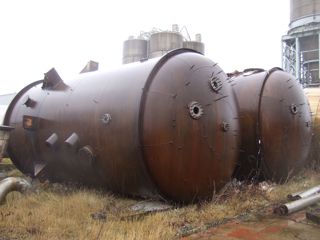

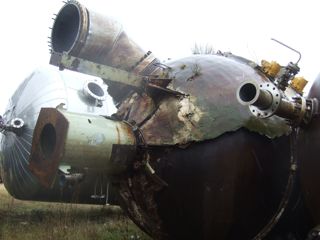

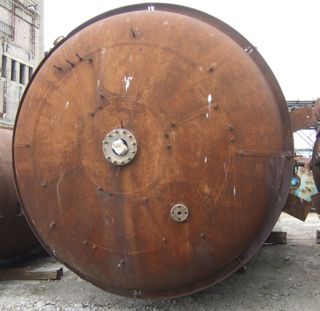

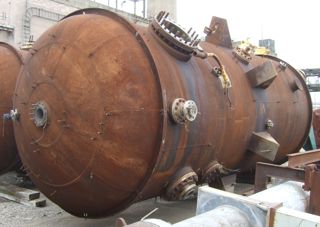

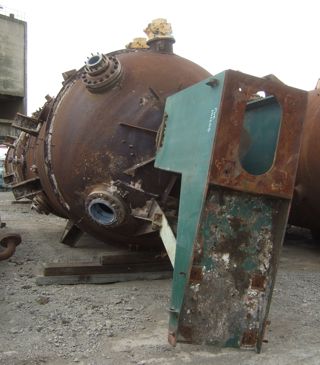

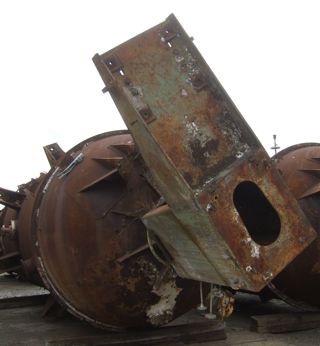

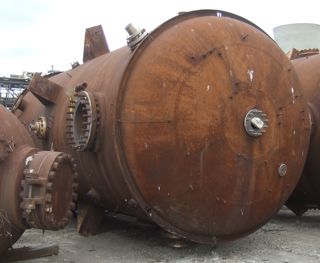

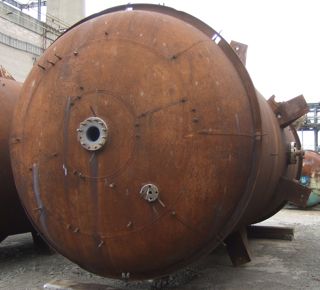

Titanium / carbon steel high pressure tank (dissolver) total volume 741 cubic feet explosion bonded titanium plate onto carbon steel hemispherical head thickness 36.6mm carbon steel with 2mm thick titanium, straight side thickness 75mm carbon steel with 2mm thick Titanium
Type: Tank
Manufacturer: Mitsui
Condition: Used
Material: Titanium
Clad: Yes
Capacity (Design): 37,800 L (9,986 gallons)
Orientation: Vertical

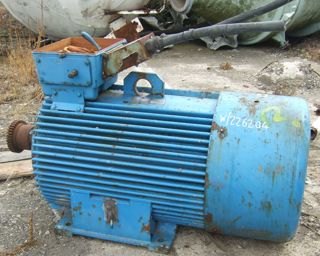

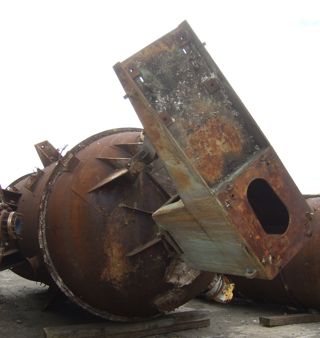

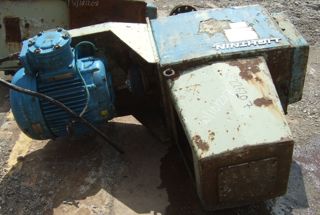

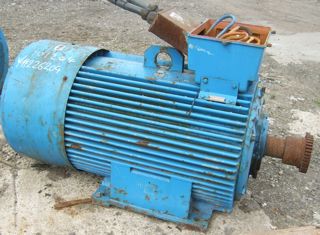

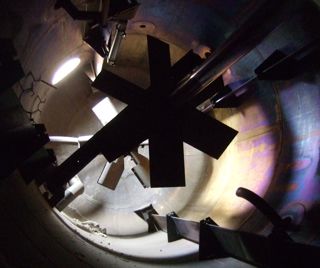

agitated pressure tank that can be used as an oxidation reactor Lightnin model 7280S-125 agitator drive 110/55kw, 3/50/415 volt, 1485/740 rpm TEFV motor (2) sets of Titanium 6-blade pitch paddles Jacket can be added at an additional cost.
Diameter: 2,743 mm (108 in). Straight-side Length: 5,944 mm (234 in). Internal Pressure: 29.3 bar (425 psi). Internal Temperature: 252 °C (485.6 °F). Does it have Agitation ?: Yes. Support: Lugs.
Type: Tank
Manufacturer: Mitsui
Condition: Used
Material: Titanium
Clad: Yes
Capacity (Design): 37,800 L (9,986 gallons)
Orientation: Vertical
agitated pressure tank, that can be used as an oxidation reactor Lightnin model 7280S-125 agitator drive driven by 110/55kw, 3/50/415 volt, 1485 rpm TEFV motor (2) sets of Titanium 6-blade pitch paddles, Jacket can be added at an additional cost.
Diameter: 2,743 mm (108 in). Straight-side Length: 5,944 mm (234 in). Internal Pressure: 29.3 bar (425 psi). Internal Temperature: 252 °C (485.6 °F). Does it have Agitation ?: Yes. Support: Lugs.
Type: Tank
Manufacturer: Mitsui
Condition: Used
Material: Titanium
Clad: Yes
Capacity (Design): 37,800 L (9,986 gallons)
Orientation: Vertical
agitated pressure tank, that can be used as an oxidation reactor. Lightnin model 7280S-125 agitator drive driven by 110/55kw, 3/50/415 volt, 1485 rpm TEFV motor (2) sets of Titanium 6-blade pitch paddles Jacket can be added at an additional cost.
Diameter: 2,743 mm (108 in). Straight-side Length: 5,944 mm (234 in). Internal Pressure: 29.3 bar (425 psi). Internal Temperature: 252 °C (485.6 °F). Does it have Agitation ?: Yes. Support: Lugs.

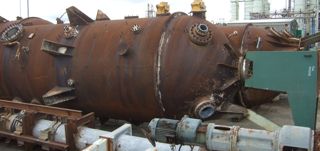

Type: Tank
Manufacturer: Mitsui
Condition: Used
Material: Titanium
Clad: Yes
Capacity (Design): 58,590 L (15,478 gallons)
Orientation: Vertical

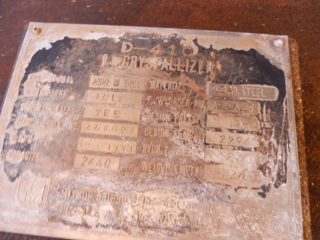

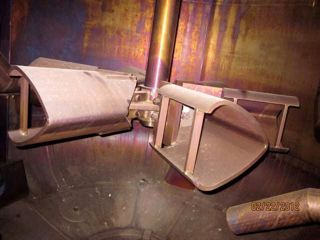

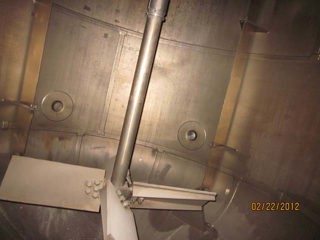

agitated pressure tank, that can be used as a crystallizer. Titanium cladding Lightnin agitator drive 50 Hertz Titanium agitator shaft with 4-blade pitched paddles
Diameter: 3,353 mm (132 in). Straight-side Length: 6,096 mm (240 in). Internal Pressure: 13.4 bar (195 psi). Internal Temperature: 229.4 °C (444.9 °F). Does it have Agitation ?: Yes. Support: Lugs.
