Stainless Steel 316 Tank - IPP# 234878

SOLD

Overview

Type:

Tank

Manufacturer:

Apache Stainless Equipment Corp.

Condition:

Used

Material:

Stainless Steel 316

Capacity

Capacity (Design):

1,400 L (369 gallons)

Dimensions

Diameter:

1,200 mm (48 in)

Straight-side Length:

1,150 mm (45 in)

Pressure

Internal Pressure:

1.72 bar (25 psi)

Temperature

Internal Temperature:

176.7 °C (350 °F)

Agitation

Does it have Agitation ?:

Yes

Other Specifications

Vacuum:

Yes

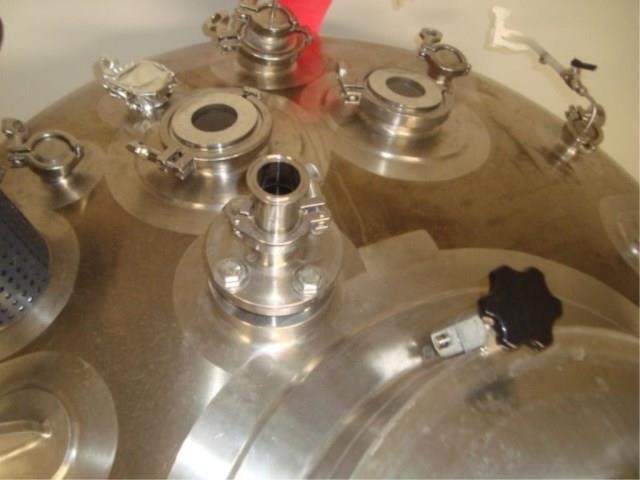

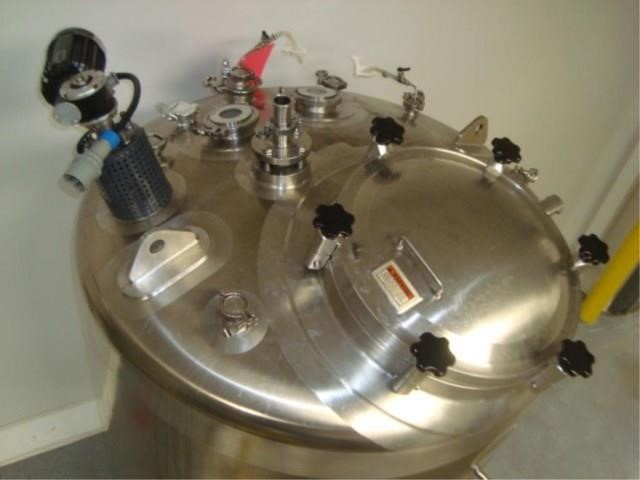

Manway:

Yes

Sanitary Contruction:

Yes

Support:

Lugs

Motor

Motor Power:

0.28 kW (0.37 HP)

Motor Hertz:

60

Additional Information

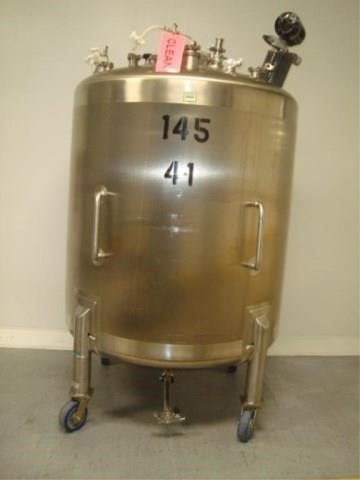

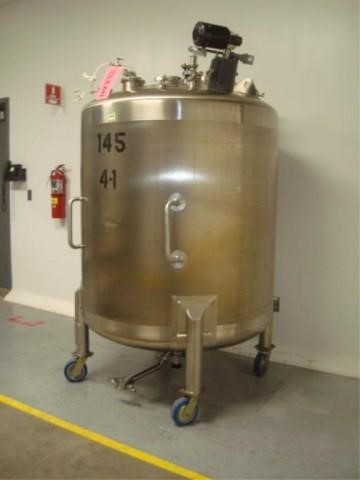

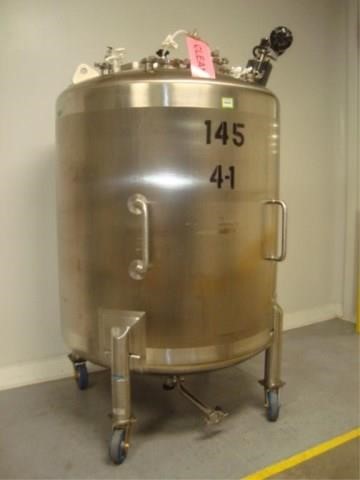

Type: Portable
pressure tank with agitation with mechanical seal
Previously used in Bio Pharmaceuticals
National Board Stamped
Internal Finish: 12Ra Electropolish
Passivation: Internally Passivated with Nitric

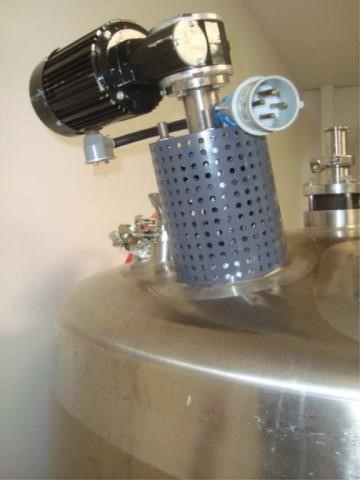

Vessel has top mounted mixer
Motor: 3 phase
Angled agitator with 4 blades (typ).
Backside handling bars
Valve: One Asepco TF-15-200 Sanitary Bottom Valve.
