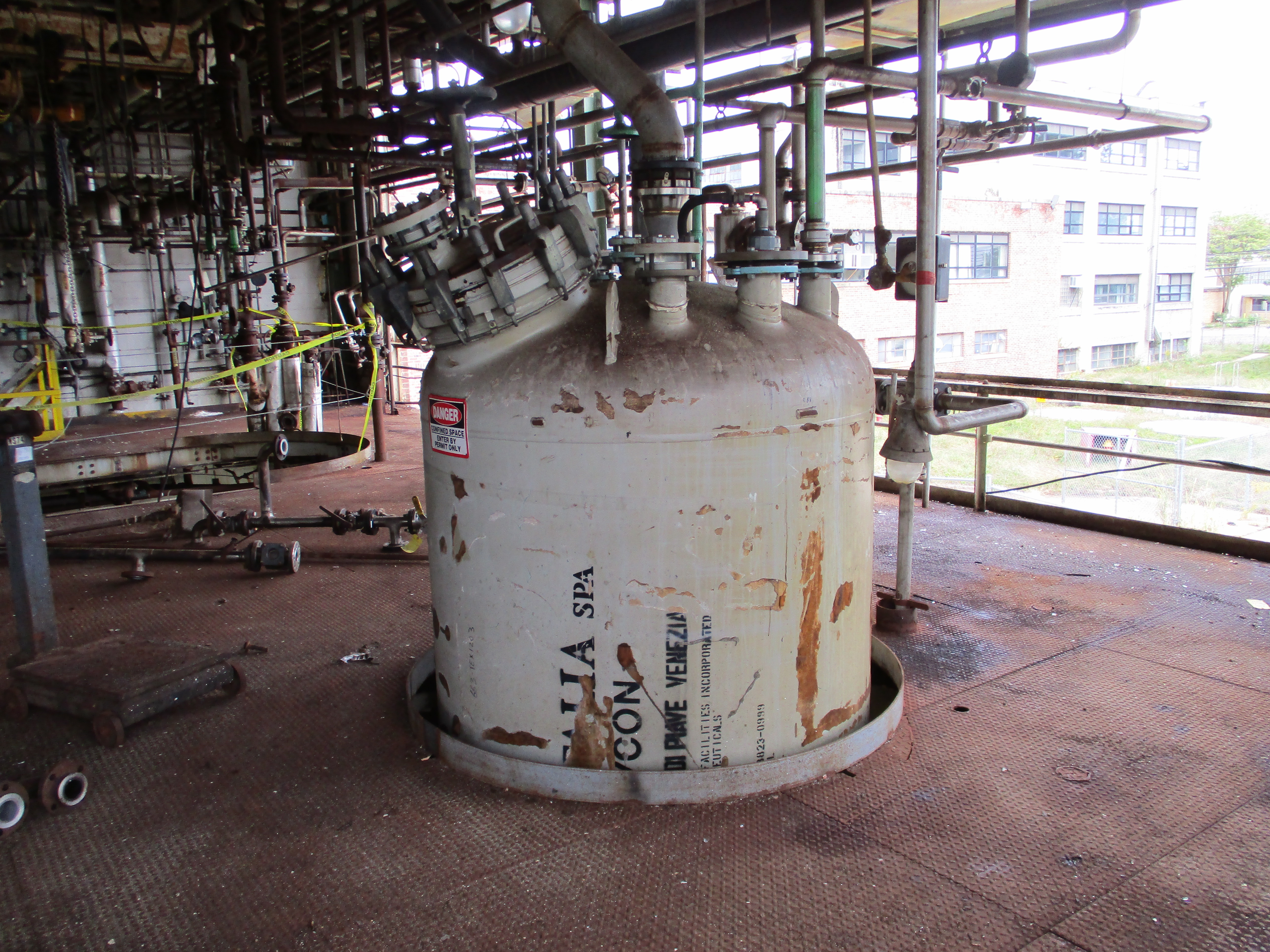

Glasslined Tycon Tank - IPP# 234995

Type: Tank

Manufacturer: Tycon

Condition: Used

Material: Glasslined

Capacity (Design): 1,350 L (352.7 gallons)

Orientation: Vertical

• Overall length 2670 mm

Diameter: 1,200 mm (47.2 in). Straight-side Length: 924 mm (36.4 in). Internal Pressure: 6 bar (87 psi). Internal Temperature: 200 °C (392 °F). Jacket Temperature: . Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Tycon

Condition: Used

Material: Glasslined

Capacity (Design): 5,200 L (1,350 gallons)

Orientation: Horizontal

design pressure -1/3 bar @ -20/200 deg C

Diameter: 1,200 mm (47.2 in). Straight-side Length: 4,550 mm (178.9 in). Internal Pressure: 3 bar (43.5 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Saddle.

Type: Tank

Manufacturer: Tycon

Condition: Used

Material: Glasslined

Capacity (Design): 33,600 L (8,900 gallons)

Orientation: Horizontal

pressure tank

Diameter: 2,800 mm (110.2 in). Straight-side Length: 4,950 mm (194.1 in). Internal Pressure: 3 bar (43.5 psi). Internal Temperature: 150 °C (302 °F). Vacuum: Yes. Support: Saddle.

Type: Tank

Manufacturer: Tycon

Condition: Used

Material: Glasslined

Capacity (Design): 27,450 L (7,250 gallons)

Orientation: Horizontal

design pressure -1/3 bar @ -20/150 deg C

Diameter: 2,800 mm (110.2 in). Straight-side Length: 3,850 mm (152 in). Internal Pressure: 3 bar (43.5 psi). Internal Temperature: 150 °C (302 °F). Vacuum: Yes. Support: Saddle.
