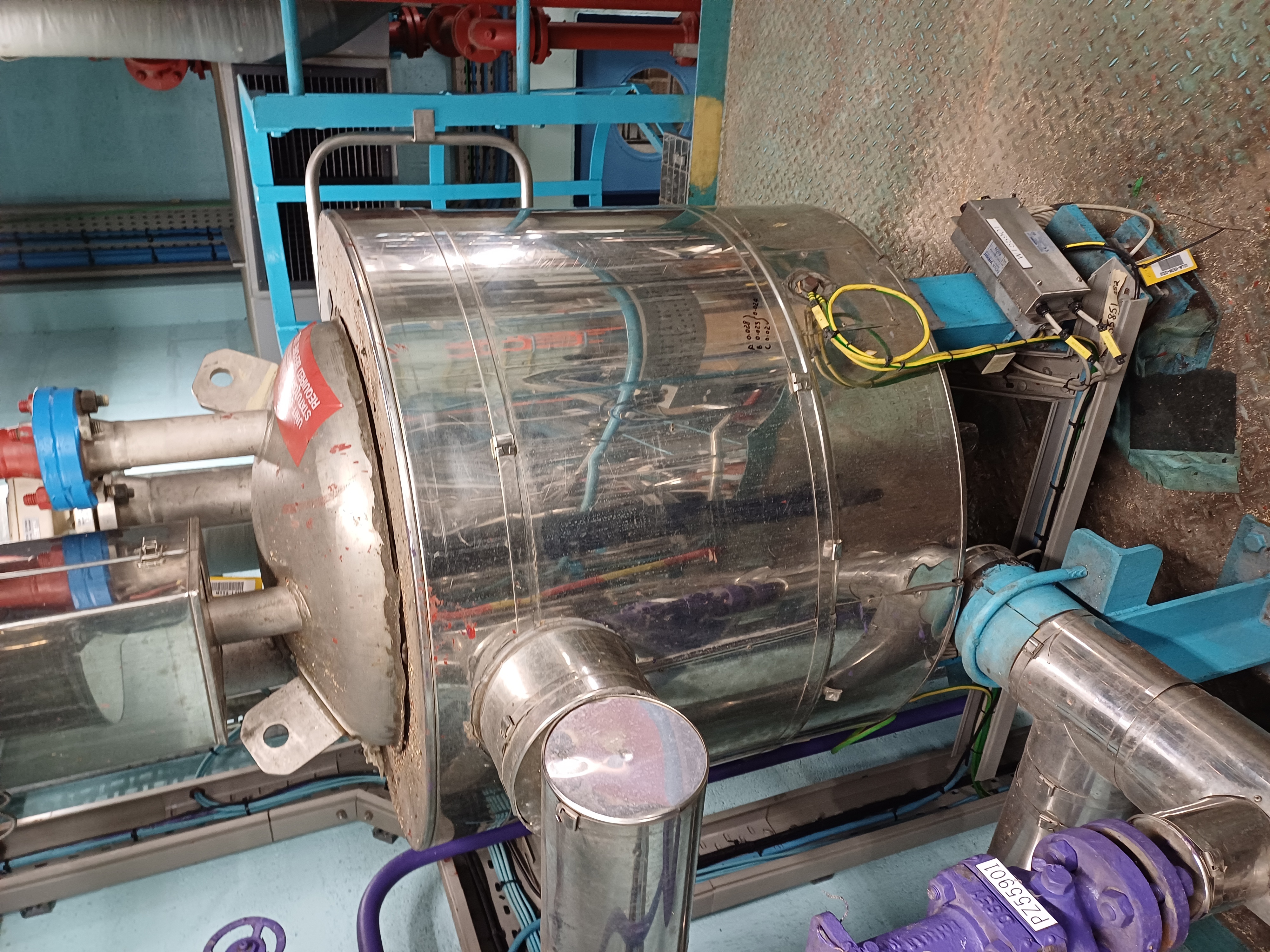

Stainless Steel 316L Isaac Webster and Sons Ltd Jacketed Tank - IPP# 242555

Type: Tank

Manufacturer: Isaac Webster and Sons Ltd

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 900 L (237.8 gallons)

Orientation: Vertical

Design code GMP.

Diameter: 914 mm (36 in). Straight-side Length: 1,300 mm (52 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 60 °C (140 °F). Vacuum: Yes. Support: Legs.

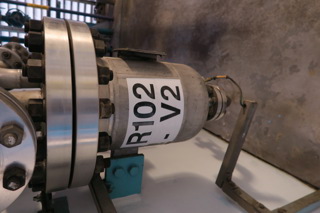

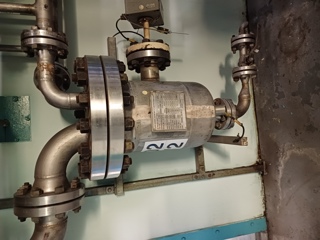

Type: Tank

Manufacturer: Isaac Webster and Sons Ltd

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 23 L (6.1 gallons)

Orientation: Vertical

• design pressure 15 barg + full vacuum @ 350 degrees C,#
• operating pressure atmospheric @ ambient temperature,
• design code: BS5500 1991 CAT 2,

Diameter: 324 mm (12.8 in). Straight-side Length: 400 mm (15.7 in). Internal Pressure: 15 bar (217.6 psi). Internal Temperature: 350 °C (662 °F). Vacuum: Yes. Support: Other.

Type: Tank

Manufacturer: Isaac Webster and Sons Ltd

Condition: Used

Material: Stainless Steel 316L

Orientation: Horizontal

Internal Pressure: 3.5 bar (50.8 psi)

• design pressure 3.5 barg + full vacuum @ -15/350 degrees C,
• design code: BS5500 1991 CAT 2

Internal Temperature: 350 °C (662 °F). Vacuum: Yes. Support: Saddle.

Type: Tank

Manufacturer: Isaac Webster and Sons Ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 6,300 L (1,650 gallons)

Orientation: Vertical

• design pressure 3.5 bar + full vacuum @ -25/170 degrees C,
• design code: BS5500 1991 CAT 2,

(1) 2.4 m³/hr @ 30m head 316L stainless steel centrifugal pump. manufactured by Girdlestone, type 10AS3G, NPSHa 7m, suction pressure 0,50 bar(g), max working pressure 16 bar(g), John Crane mechanical seal, driven by 7.5kw, 3/50/415 volt 2890 rpm EExd zone 1, IIA/B T4 motor, 50mm inlet, 32mm outlet, mounted on a baseplate

Diameter: 2,000 mm (78.7 in). Straight-side Length: 2,000 mm (78.7 in). Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 170 °C (338 °F). Vacuum: Yes. Support: Legs.
