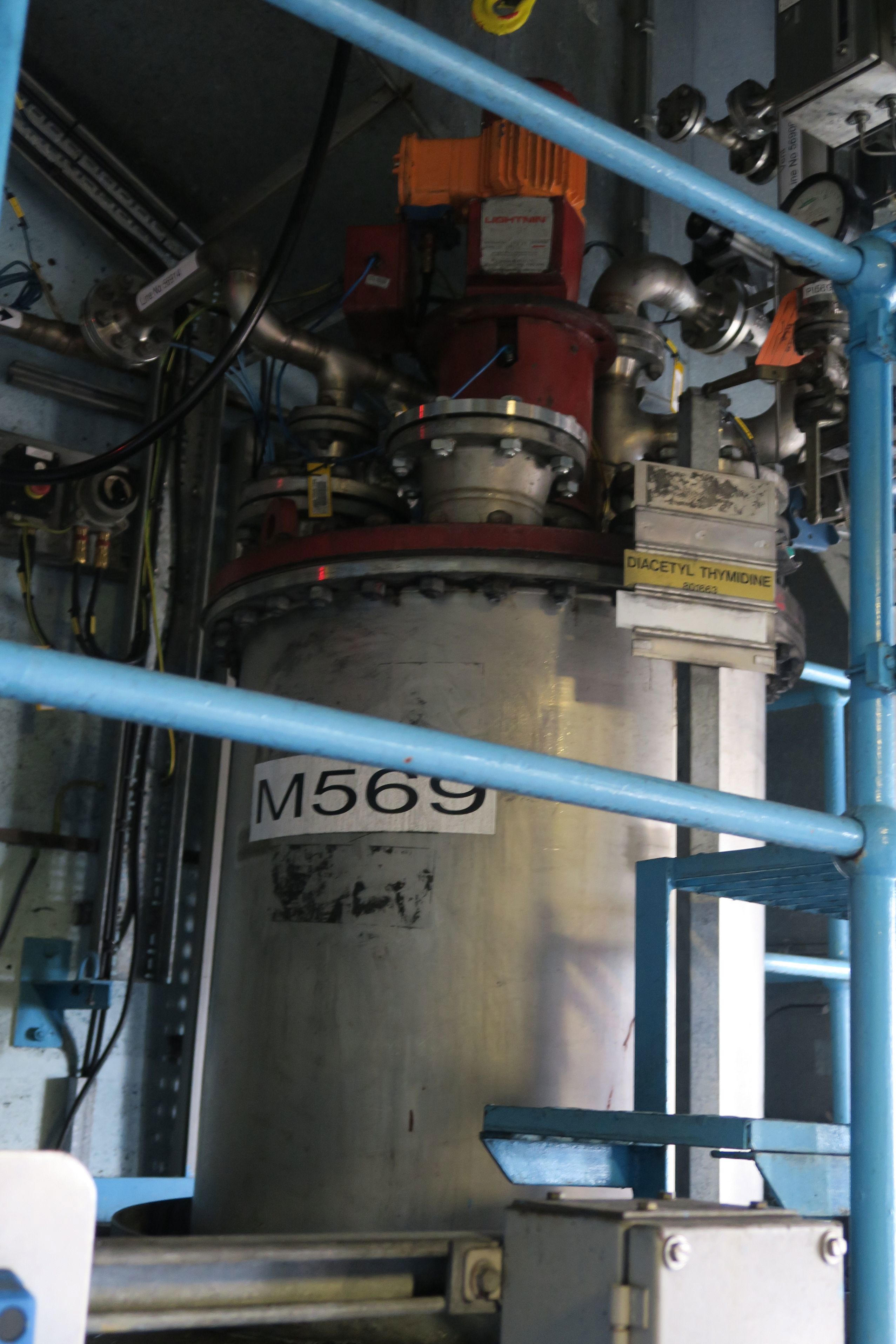

Stainless Steel 316L Isaac Webster and Sons Ltd Agitated Tank - IPP# 242564

Type: Tank

Manufacturer: Isaac Webster and Sons Ltd

Condition: Used

Material: Stainless Steel 316L

Orientation: Horizontal

Internal Pressure: 3.5 bar (50.8 psi)

• design pressure 3.5 barg + full vacuum @ -15/350 degrees C,
• design code: BS5500 1991 CAT 2

Internal Temperature: 350 °C (662 °F). Vacuum: Yes. Support: Saddle.

Type: Tank

Manufacturer: Isaac Webster and Sons Ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 6,300 L (1,650 gallons)

Orientation: Vertical

• design pressure 3.5 bar + full vacuum @ -25/170 degrees C,
• design code: BS5500 1991 CAT 2,

(1) 2.4 m³/hr @ 30m head 316L stainless steel centrifugal pump. manufactured by Girdlestone, type 10AS3G, NPSHa 7m, suction pressure 0,50 bar(g), max working pressure 16 bar(g), John Crane mechanical seal, driven by 7.5kw, 3/50/415 volt 2890 rpm EExd zone 1, IIA/B T4 motor, 50mm inlet, 32mm outlet, mounted on a baseplate

Diameter: 2,000 mm (78.7 in). Straight-side Length: 2,000 mm (78.7 in). Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 170 °C (338 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Isaac Webster and Sons Ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 1,600 L (422.7 gallons)

Orientation: Vertical

• design code BS5500: 1991 CAT 2,

Diameter: 1,200 mm (47.2 in). Straight-side Length: 1,400 mm (55.1 in). Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 185 °C (365 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel 316. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 185 °C (365 °F). Vacuum: Yes. Support: Lugs.

Type: Tank

Manufacturer: Isaac Webster and Sons Ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 1,600 L (422.7 gallons)

Orientation: Vertical

• design pressure internal 3.5 bar + full vacuum @ -29/180 degrees C,
• jacket 10 bar + full vacuum @ -29/180 degrees C
• design code BS5500: 1991 CAT 2

Diameter: 1,200 mm (47.2 in). Straight-side Length: 1,400 mm (55.1 in). Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 180 °C (356 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel 316L. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 180 °C (356 °F). Vacuum: Yes. Support: Lugs.
