Stainless Steel 316L Isaac Webster Tank - IPP# 242795

Type: Tank

Manufacturer: Isaac Webster and Sons Ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 6,300 L (1,664 gallons)

Orientation: Vertical

• design pressure internal 3.5 bar + full vacuum @ -25/170 degrees C,
• design code BS5500 1991 CAT 2,

With (1) 316L stainless steel centrifugal pump, driven by 5.5kW, 3/50/415 volt, 2900 rpm Ex IP55 motor, mechanical seal with lubricator pot, mounted on a baseplate

Diameter: 2,000 mm (78.7 in). Straight-side Length: 2,000 mm (78.7 in). Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 170 °C (338 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Isaac Webster and Sons Ltd

Condition: Used

Material: Stainless Steel 316L

Orientation: Horizontal

Internal Pressure: 3.5 bar (50.8 psi)

• design pressure 3.5 barg + full vacuum @ -15/350 degrees C,
• design code: BS5500 1991 CAT 2

Internal Temperature: 350 °C (662 °F). Vacuum: Yes. Support: Saddle.

Type: Tank

Manufacturer: Isaac Webster and Sons Ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 6,300 L (1,664 gallons)

Orientation: Vertical

• design pressure 3.5 bar + full vacuum @ -25/170 degrees C,

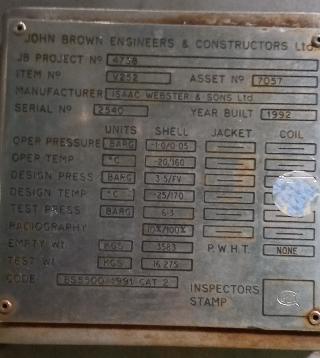

• design code BS5500: 1991 CAT 2,

(1) 316L stainless steel centrifugal pump. manufactured by Girdlestone, serial #53524, type 10AS3G, size 50-40-175, driven by 5.5kW, 3/50/415 volt, 2900 rpm Ex IP55 motor, mounted on a baseplate,

Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 170 °C (338 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Isaac Webster and Sons Ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 6,300 L (1,664 gallons)

Orientation: Vertical

• design pressure internal 3.5 bar + full vacuum @ -25/185 degrees C,
• jacket 6 bar + full vacuum @ -25/185 degrees C,
• design code BS5500 1991 CAT 2,

With 316L stainless steel centrifugal pump, driven by 5.5kW, 3/50/415 volt, 2900 rpm Ex IP55 motor, mechanical seal with lubricator pot, mounted on a baseplate,

Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 170 °C (338 °F). Does it have Agitation ?: Yes. Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel 316L. Jacket Pressure: 14 bar (203 psi). Jacket Temperature: 185 °C (365 °F). Vacuum: Yes. Support: Legs.
