Stainless Steel 316L Isaac Webster Tank - IPP# 242807

Type: Tank

Manufacturer: Isaac webster & sons ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 6,300 L (1,650 gallons)

Orientation: Vertical

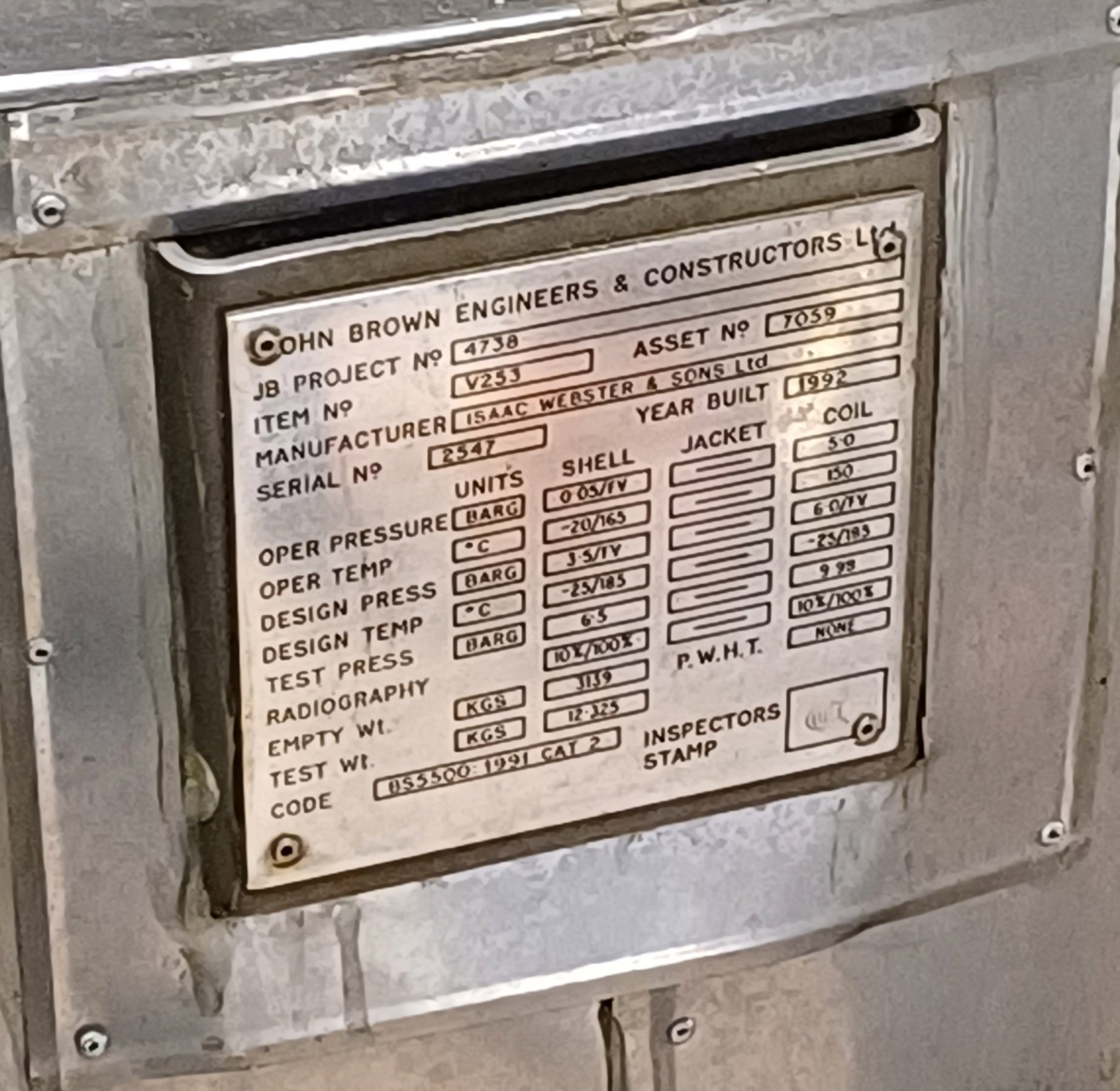

• design pressure internal 3.5 bar + full vacuum @ -25/170 degrees C,
• design code BS5500 1991 CAT 2,

With 316L stainless steel centrifugal pump, driven by 5.5kW, 3/50/415 volt, 2900 rpm Ex IP55 motor, mechanical seal with lubricator pot, mounted on a baseplate

Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 170 °C (338 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Isaac webster & sons ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 170 L (44.9 gallons)

Orientation: Horizontal

• design pressure -10 barg + full vacuum @ 5/120 degrees C,
• design code: BS5500 1991 CAT 2,

Diameter: 400 mm (15.7 in). Straight-side Length: 1,400 mm (55.1 in). Internal Pressure: 10 bar (145 psi). Internal Temperature: 120 °C (248 °F). Vacuum: Yes. Support: Saddle.

Type: Tank

Manufacturer: Industrial Process Equipment Corp.

Model: Knock Out

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 283.9 L (75 gallons)

Orientation: Vertical

• Type: knock out pot
• Customer: Nash Kinema Vessel designed for non-lethal and non-corrosive service.

Diameter: 482.6 mm (19 in). Straight-side Length: 1,500 mm (60 in). Internal Pressure: 10.3 bar (150 psi). Internal Temperature: 204.4 °C (400 °F). Support: Base Mounted.

Type: Tank

Manufacturer: WAFAG

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 160 L (42.3 gallons)

Orientation: Horizontal

• Jacketed receiver 1/2 pipe coil jacket on bottom 1/2 of tank.

Diameter: 450 mm (17.7 in). Straight-side Length: 1,000 mm (39.6 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel Other. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes.
