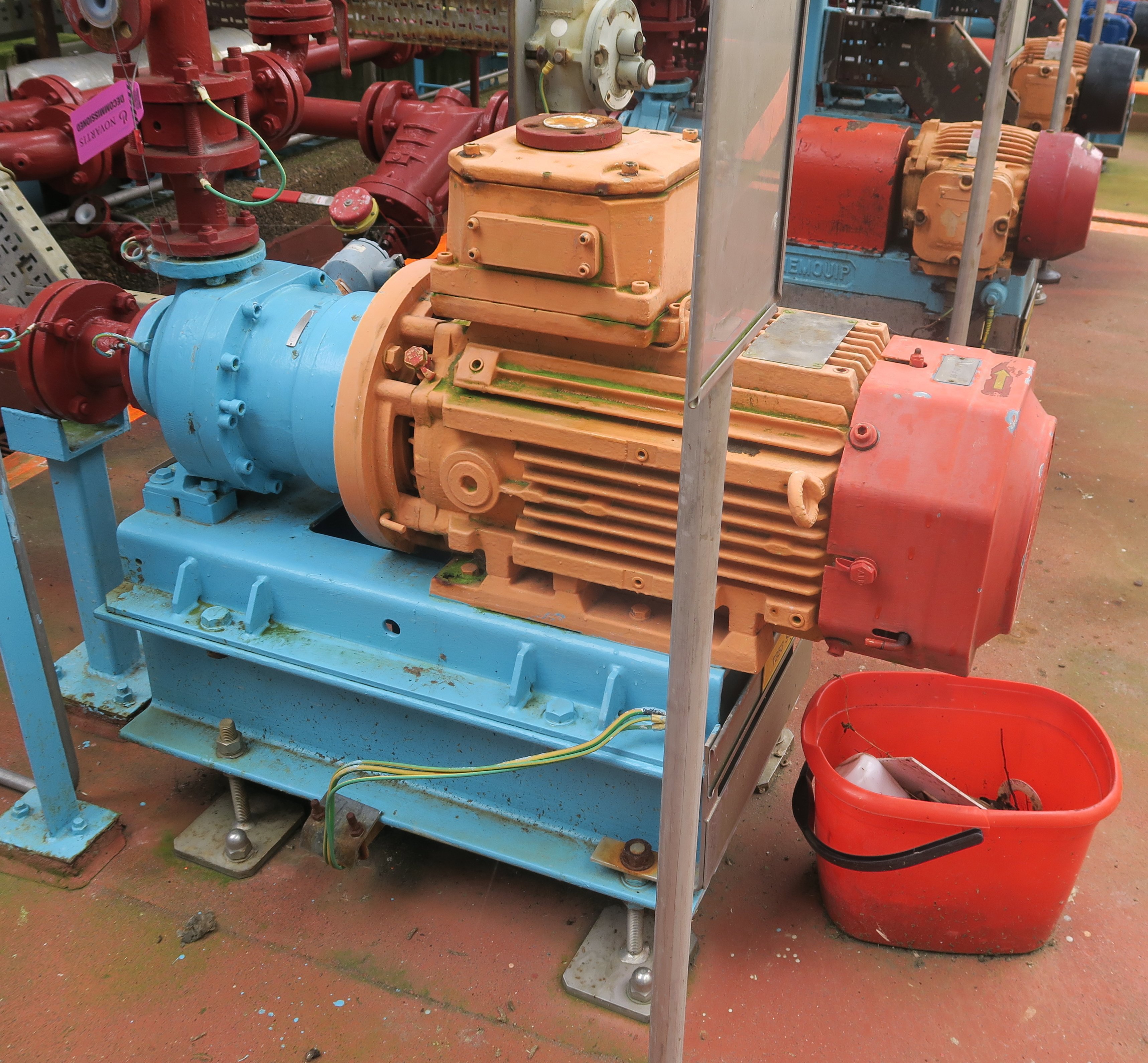

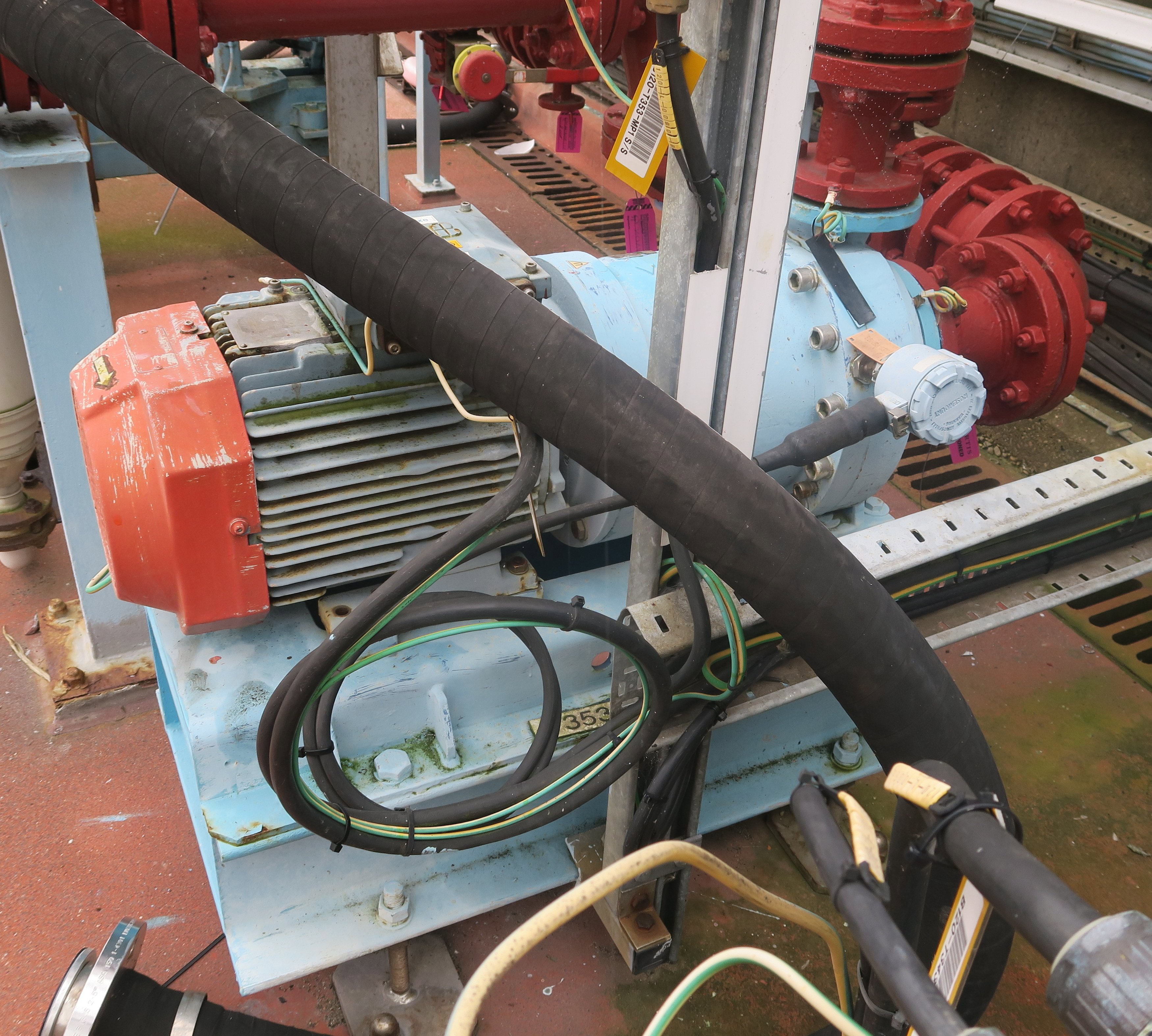

(2) 25m3/hr @ 11.8m head PTFE lined centrifugal pumps manufactured by CP Pumpen AG, type MKPL 80-50-200, 196mm diameter impellor, 1450 rpm, 20/30 degrees C, CE Ex II 2GD T1-T4 classification, mounted on a baseplate,

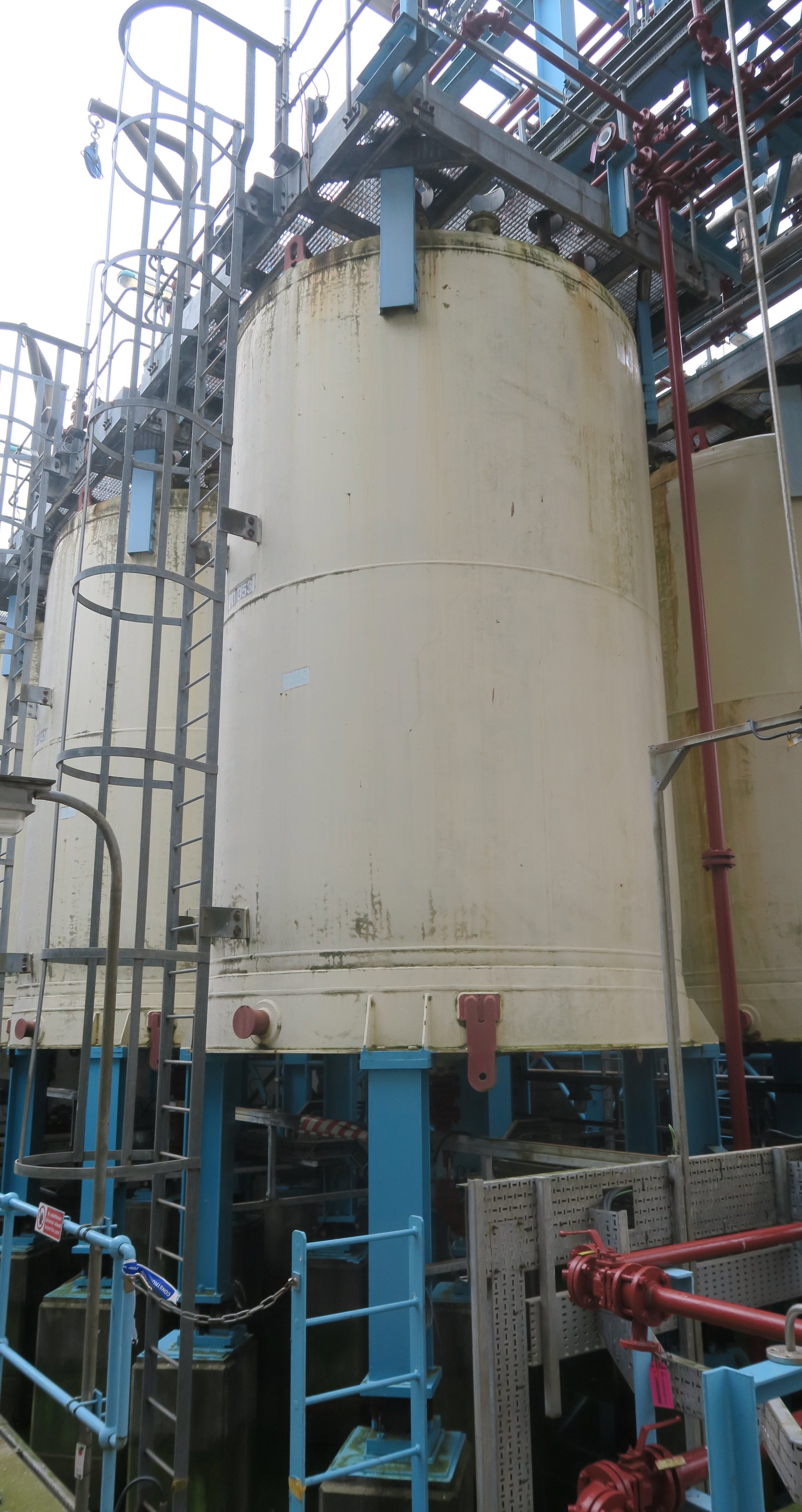

Type: Tank
Manufacturer: Pfaudler
Condition: Used
Material: Glasslined
Capacity (Design): 1,893 L (500 gallons)
Orientation: Vertical
Diameter: 1,422 mm (56 in). Straight-side Length: 1,168 mm (46 in). Internal Pressure: 5.17 bar (75 psi). Internal Temperature: 177 °C (350 °F). Support: Legs.
Type: Tank
Manufacturer: Pfaudler
Condition: Used
Material: Glasslined
Capacity (Design): 379 L (100 gallons)
Orientation: Horizontal
Internal Pressure: 5.17 bar (75 psi). Internal Temperature: 343 °C (650 °F). Support: Legs.
Type: Tank
Manufacturer: Pfaudler
Condition: Used
Material: Glasslined
Capacity (Design): 114 L (30 gallons)
Diameter: 356 mm (14 in)
Straight-side Length: 457 mm (18 in). Internal Pressure: 2.07 bar (30 psi). Internal Temperature: 232 °C (450 °F). Vacuum: Yes. Support: Legs.
Type: Tank
Manufacturer: Pfaudler
Condition: Used
Material: Glasslined
Capacity (Design): 1,893 L (500 gallons)
Orientation: Vertical
Diameter: 1,219 mm (48 in). Straight-side Length: 1,524 mm (60 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 343 °C (650 °F). Support: Legs.
