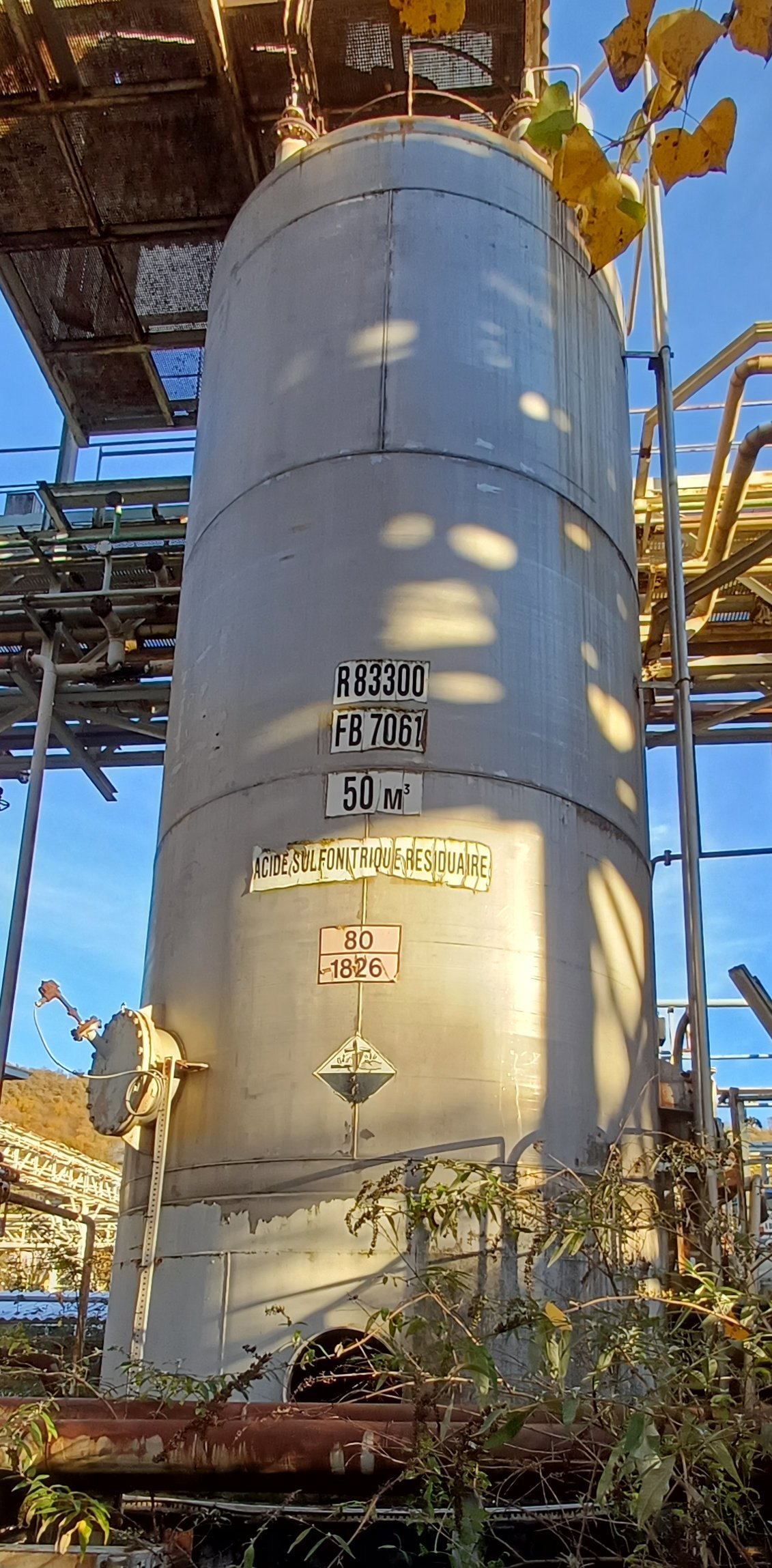

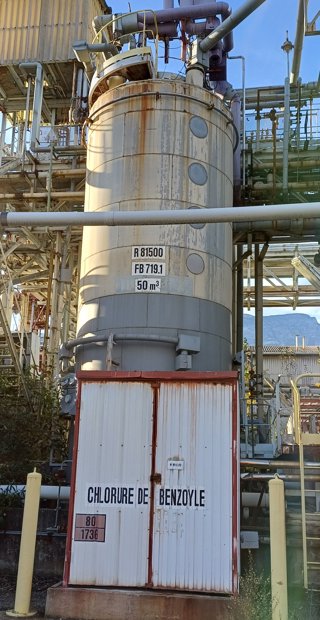

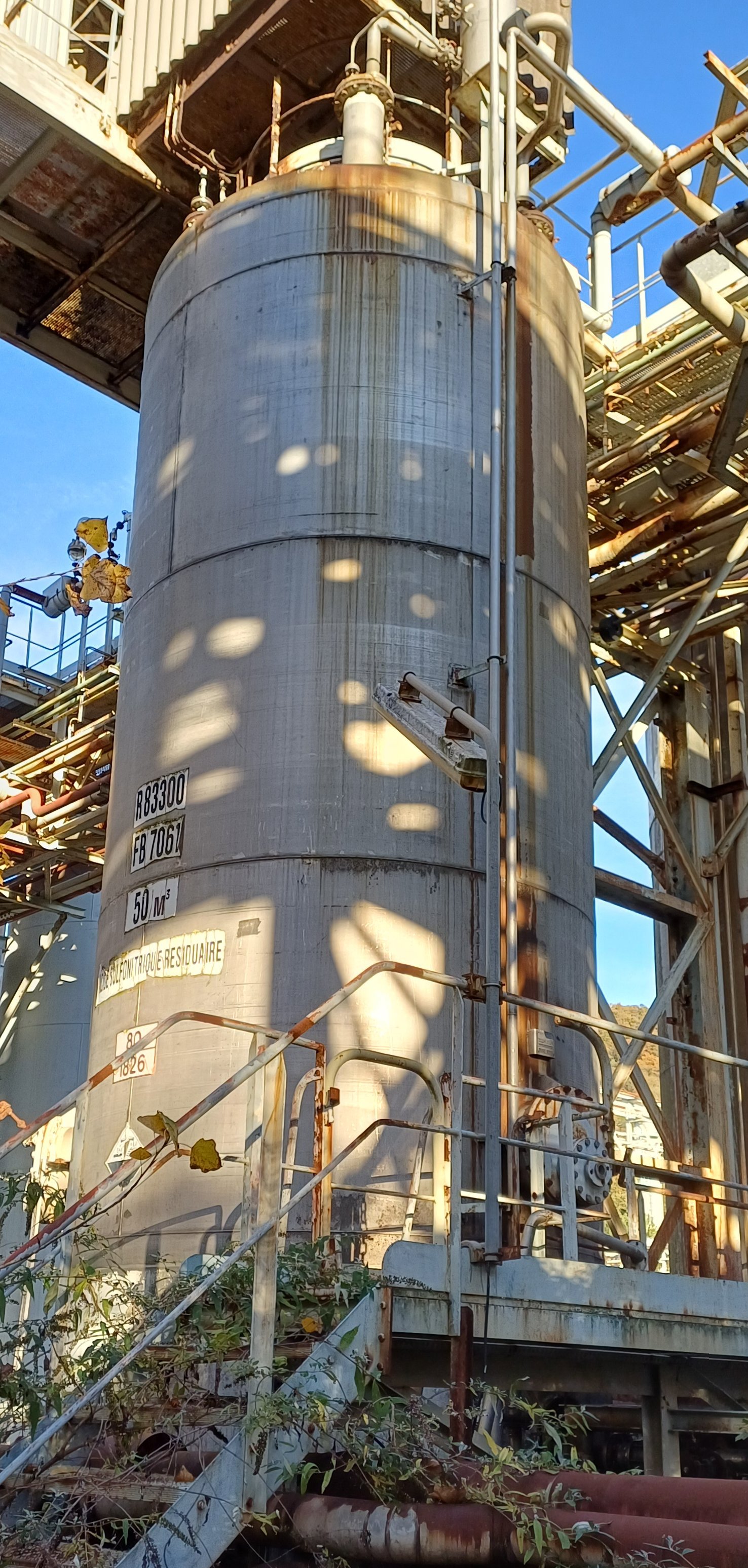

Stainless Steel 316 Tank - IPP# 246443

Type: Tank

Manufacturer: Ponticelli

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 60,000 L (15,850 gallons)

Orientation: Vertical

50000 liter working capacity, working pressure Atmospheric @ 50 degrees C,

Diameter: 3,200 mm (126 in). Straight-side Length: 6,500 mm (255.9 in). Internal Pressure: 0.84 bar (12.2 psi). Internal Temperature: 50 °C (122 °F). Support: Skirt.

Type: Tank

Manufacturer: Ponticelli

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 60,000 L (15,850 gallons)

Orientation: Vertical

50000 liter working capacity, 1450mm high carbon steel skirt,

Diameter: 3,200 mm (126 in). Straight-side Length: 6,500 mm (255.9 in). Internal Pressure: 0.84 bar (12.2 psi). Internal Temperature: 20 °C (68 °F). Support: Skirt.

Type: Tank

Manufacturer: DCI

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 757 L (200 gallons)

Orientation: Vertical

• Completely insulated with foam insulation.
• Head are 0.135" thick-CBO is 2" sanitary

Diameter: 914 mm (36 in). Straight-side Length: 1,200 mm (47 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 100 °C (212 °F). Vacuum: Yes. Sanitary Contruction: Yes. Support: Legs.

Type: Tank

Manufacturer: Perry Products Co.

Model: HDDX-185

Condition: Unused

Material: Stainless Steel 316

Capacity (Design): 700 L (185 gallons)

Orientation: Vertical

• Height: 92" overall, tank sits 9" off grade

Diameter: 813 mm (32 in). Straight-side Length: 1,500 mm (60 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 162.8 °C (325 °F). Vacuum: Yes. Support: Legs.
