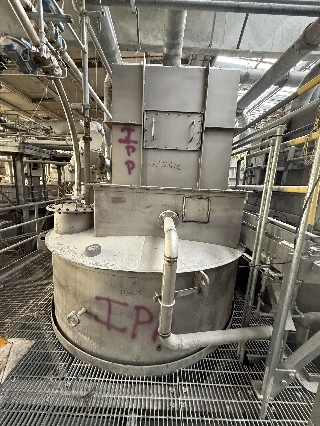

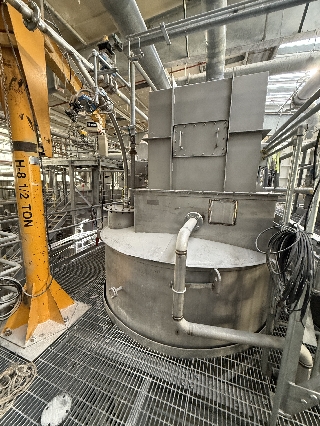

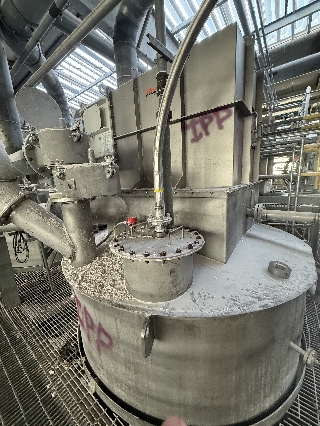

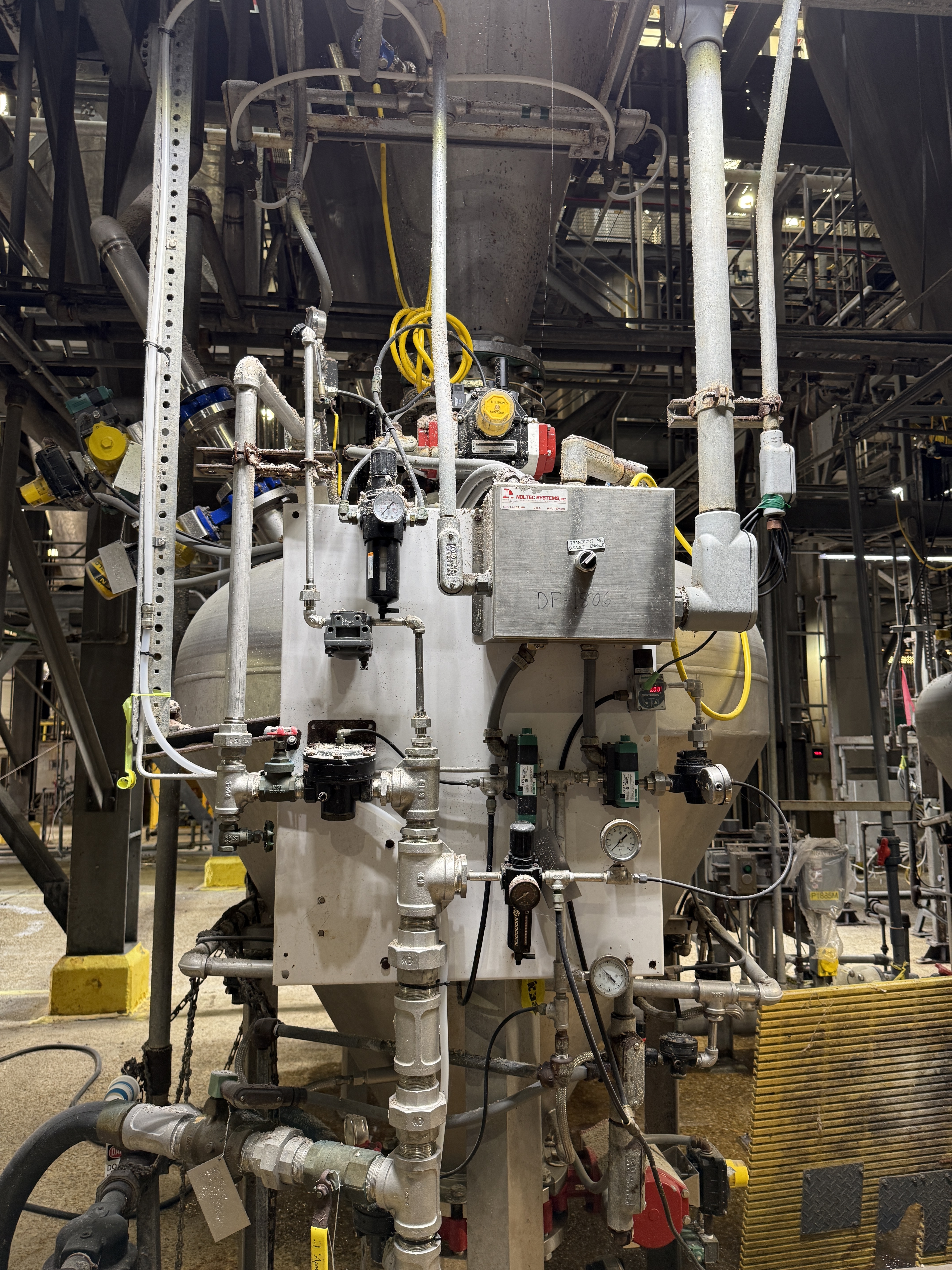

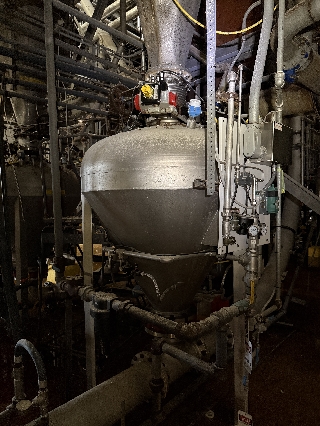

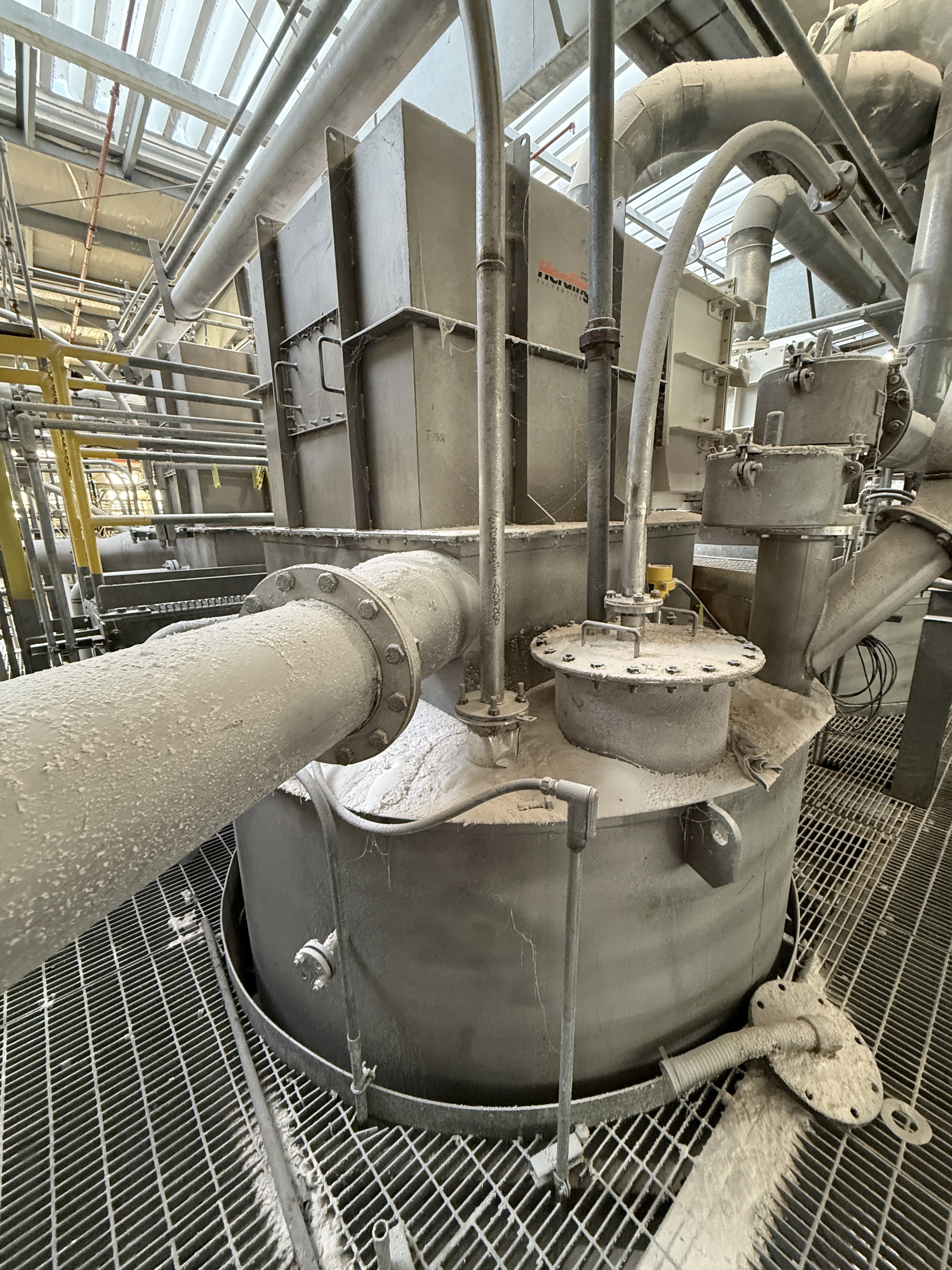

11,400 Gallon Stainless Steel 304 Tank with Dust Collector - IPP# 249005

Type: Tank

Manufacturer: AKM, Inc.

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 43,150 L (11,400 gallons)

Orientation: Vertical

• Top Head Mounted, 472sqft Filtration Surface Area, Dusct Collector (DC-1807), Manufactured by Herding in 2013. M/N: Delta 1200-12/9 GE, S/N: 20853.
• Bottom Feed through rotary valve into 40cuft, 304 SS, Hopper/Conveyer, @ 18,000lbs/hr.

Diameter: 2,450 mm (96 in). Straight-side Length: 7,600 mm (300 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 23.9 °C (75 °F). Cone Length: 4,150 mm (164 in). Support: Lugs.

Type: Tank

Manufacturer: Continental

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 4,900 L (1,300 gallons)

Orientation: Vertical

Diameter: 1,850 mm (72 in). Straight-side Length: 1,300 mm (52 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 93.3 °C (200 °F). Support: Legs.

Type: Tank

Manufacturer: Continental

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 4,900 L (1,300 gallons)

Orientation: Vertical

• National Board number is not available
• Twi side mounted man ways

Diameter: 1,850 mm (72 in). Straight-side Length: 1,300 mm (52 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 93.3 °C (200 °F). Support: Legs.

Type: Tank

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 115 L (30.4 gallons)

Orientation: Vertical

• Portable vertical tank
• Discharge mechanism: Motorized screw conveyor
• Bolted flat top, coned flat bottom

Diameter: 860 mm (33.9 in). Straight-side Length: 420 mm (16.5 in). Does it have Agitation ?: Yes.
