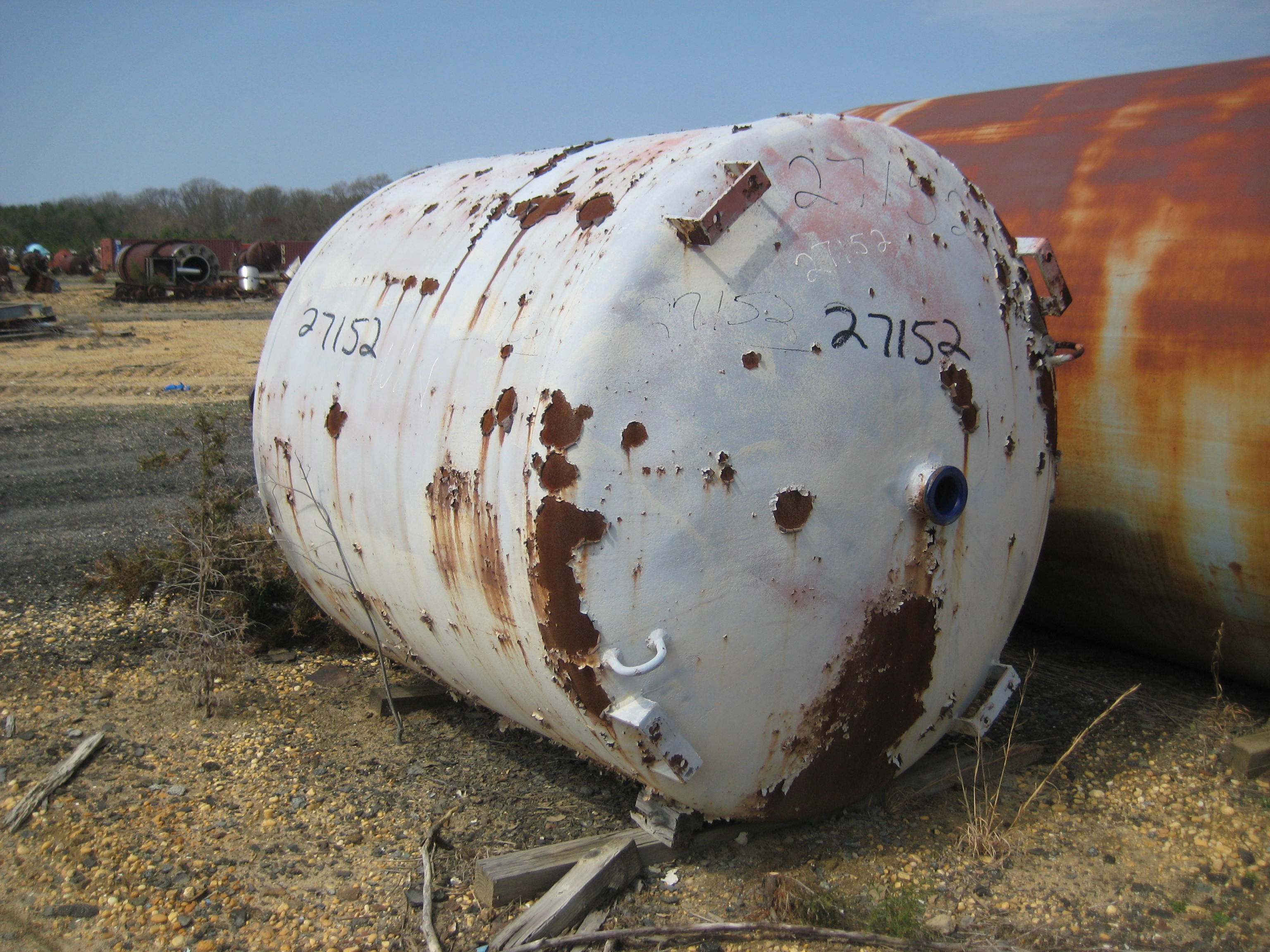

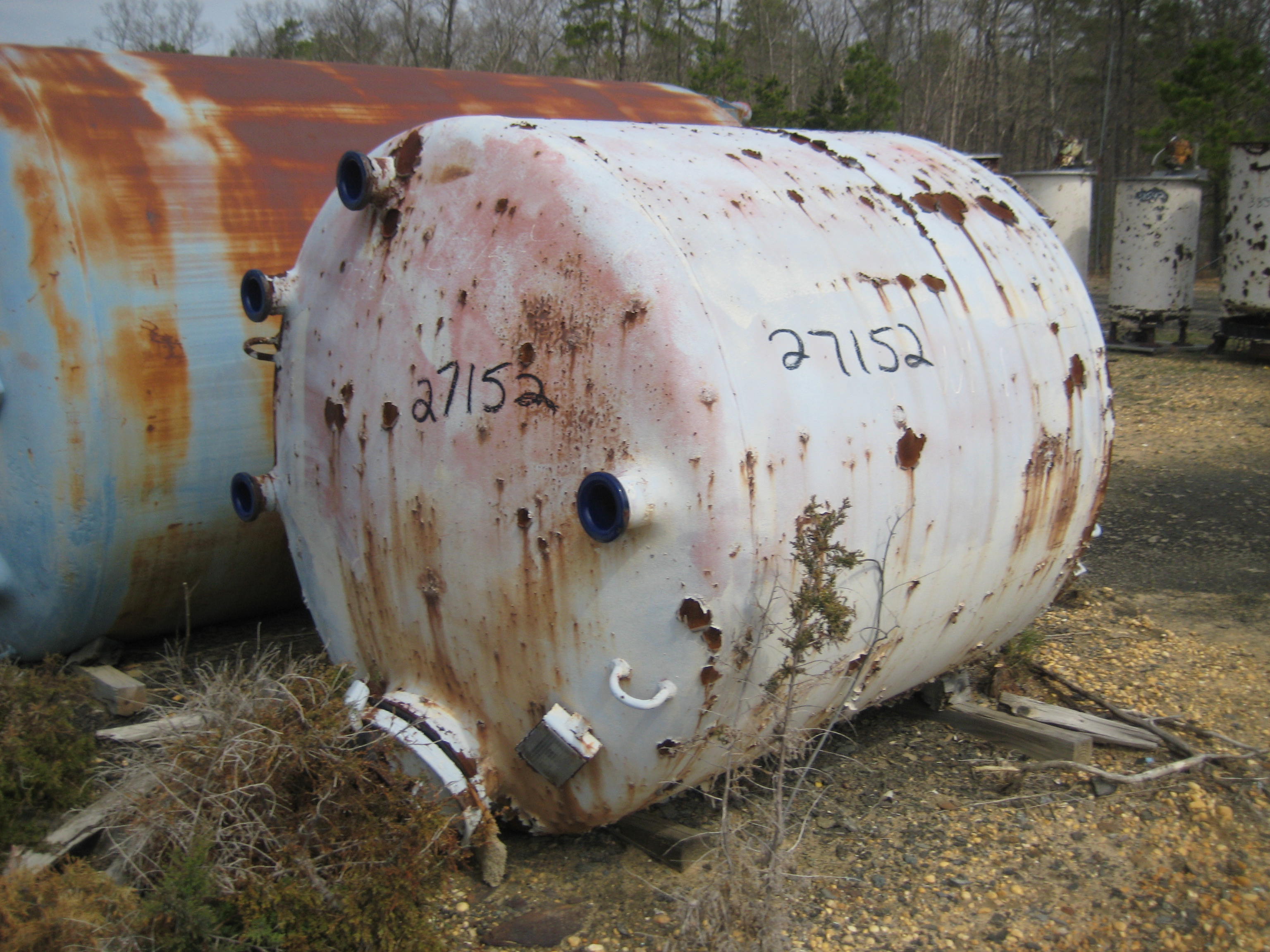

Glasslined Pfaudler Tank - IPP# 27152

Type: Tank

Manufacturer: Pfaudler

Condition: Used

Material: Glasslined

Capacity (Design): 1,893 L (500 gallons)

Orientation: Vertical

Diameter: 1,422 mm (56 in). Straight-side Length: 1,168 mm (46 in). Internal Pressure: 5.17 bar (75 psi). Internal Temperature: 177 °C (350 °F). Support: Legs.

Type: Tank

Manufacturer: Pfaudler

Condition: Used

Material: Glasslined

Capacity (Design): 379 L (100 gallons)

Orientation: Horizontal

Internal Pressure: 5.17 bar (75 psi). Internal Temperature: 343 °C (650 °F). Support: Legs.

Type: Tank

Manufacturer: Pfaudler

Condition: Used

Material: Glasslined

Capacity (Design): 114 L (30 gallons)

Diameter: 356 mm (14 in)

Straight-side Length: 457 mm (18 in). Internal Pressure: 2.07 bar (30 psi). Internal Temperature: 232 °C (450 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Pfaudler

Condition: Used

Material: Glasslined

Capacity (Design): 1,893 L (500 gallons)

Orientation: Vertical

Diameter: 1,219 mm (48 in). Straight-side Length: 1,524 mm (60 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 343 °C (650 °F). Support: Legs.
