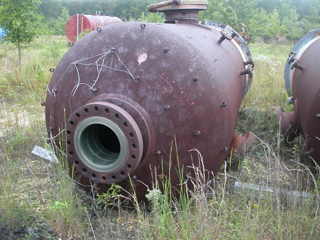

Stainless Steel 304 Clad Standard Tool Mach Co Tank - IPP# 45290

Type: Tank

Manufacturer: Standard Tool Mach Co

Condition: Used

Material: Stainless Steel 304

Clad: Yes

Capacity (Design): 7,000 L (1,850 gallons)

Orientation: Vertical

• Constructed of ASTM A516 Grade 70 carbon steel with 304L stainless steel cladding.

Mtd from top weld down is 6" thick wire mesh 304SS separator.

Diameter: 1,700 mm (66 in). Straight-side Length: 2,600 mm (102 in). Internal Pressure: 41.9 bar (607 psi). Internal Temperature: 183.3 °C (362 °F). Support: Skirt.

Type: Tank

Manufacturer: Continental

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 4,900 L (1,300 gallons)

Orientation: Vertical

Diameter: 1,850 mm (72 in). Straight-side Length: 1,300 mm (52 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 93.3 °C (200 °F). Support: Legs.

Type: Tank

Manufacturer: Continental

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 4,900 L (1,300 gallons)

Orientation: Vertical

• National Board number is not available
• Twi side mounted man ways

Diameter: 1,850 mm (72 in). Straight-side Length: 1,300 mm (52 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 93.3 °C (200 °F). Support: Legs.

Type: Tank

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 115 L (30.4 gallons)

Orientation: Vertical

• Portable vertical tank
• Discharge mechanism: Motorized screw conveyor
• Bolted flat top, coned flat bottom

Diameter: 860 mm (33.9 in). Straight-side Length: 420 mm (16.5 in). Does it have Agitation ?: Yes.
