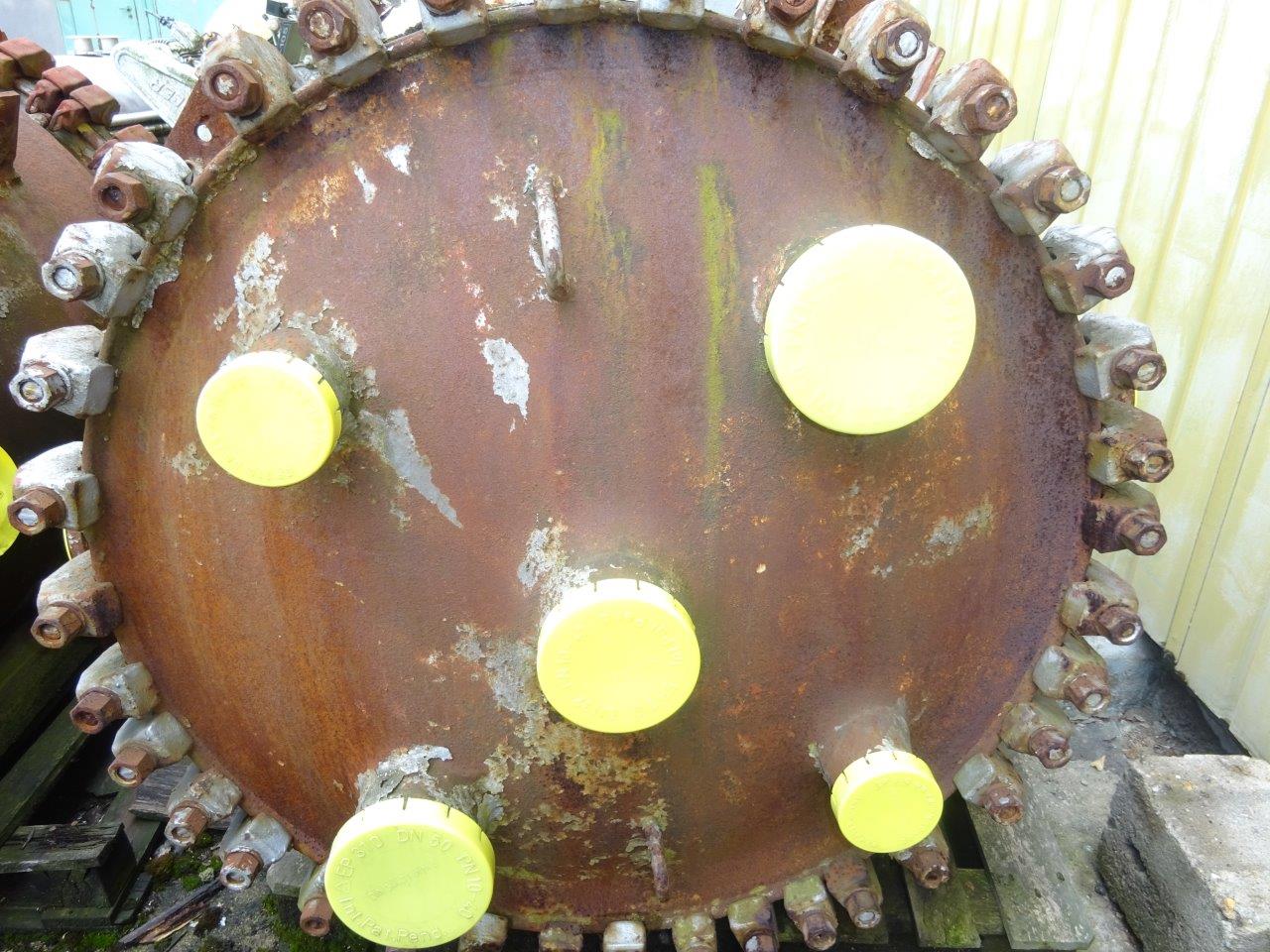

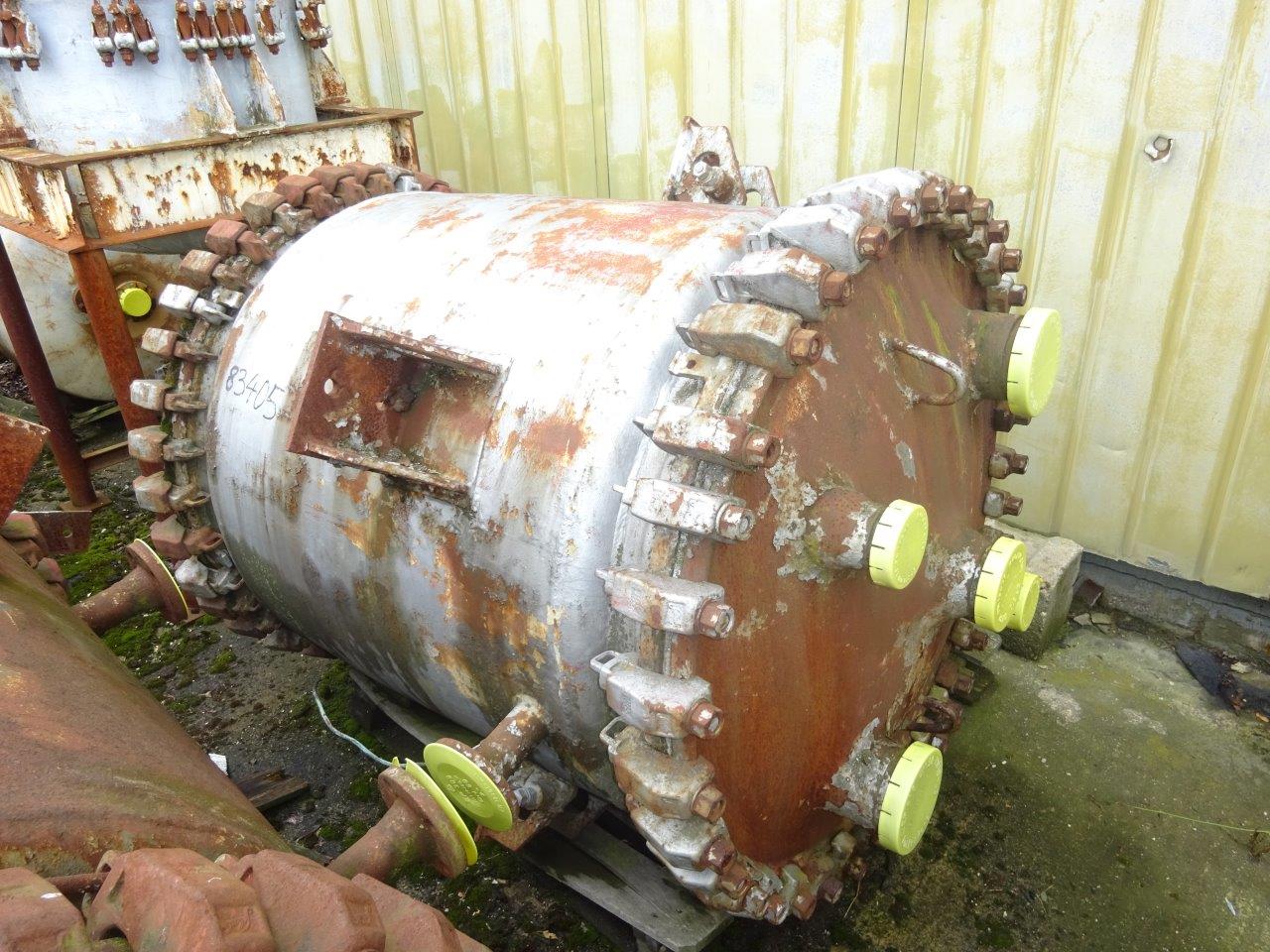

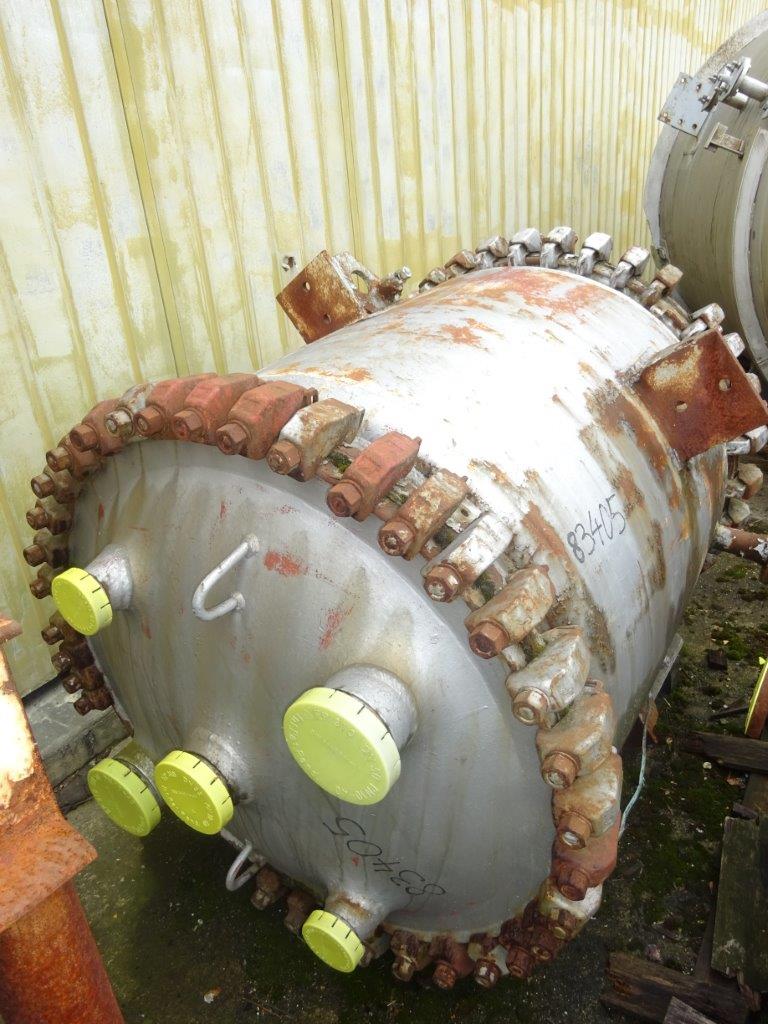

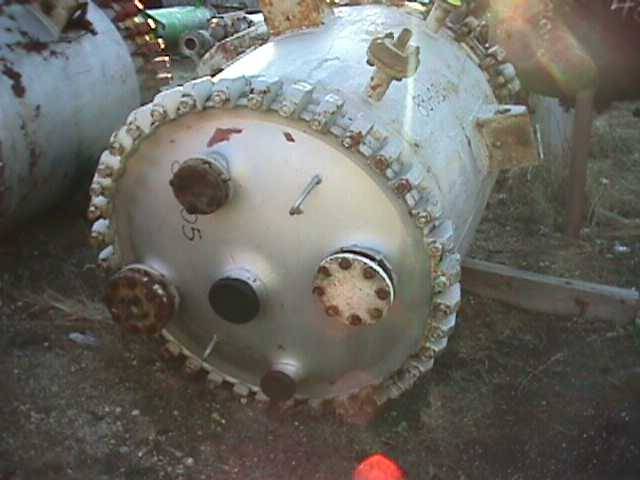

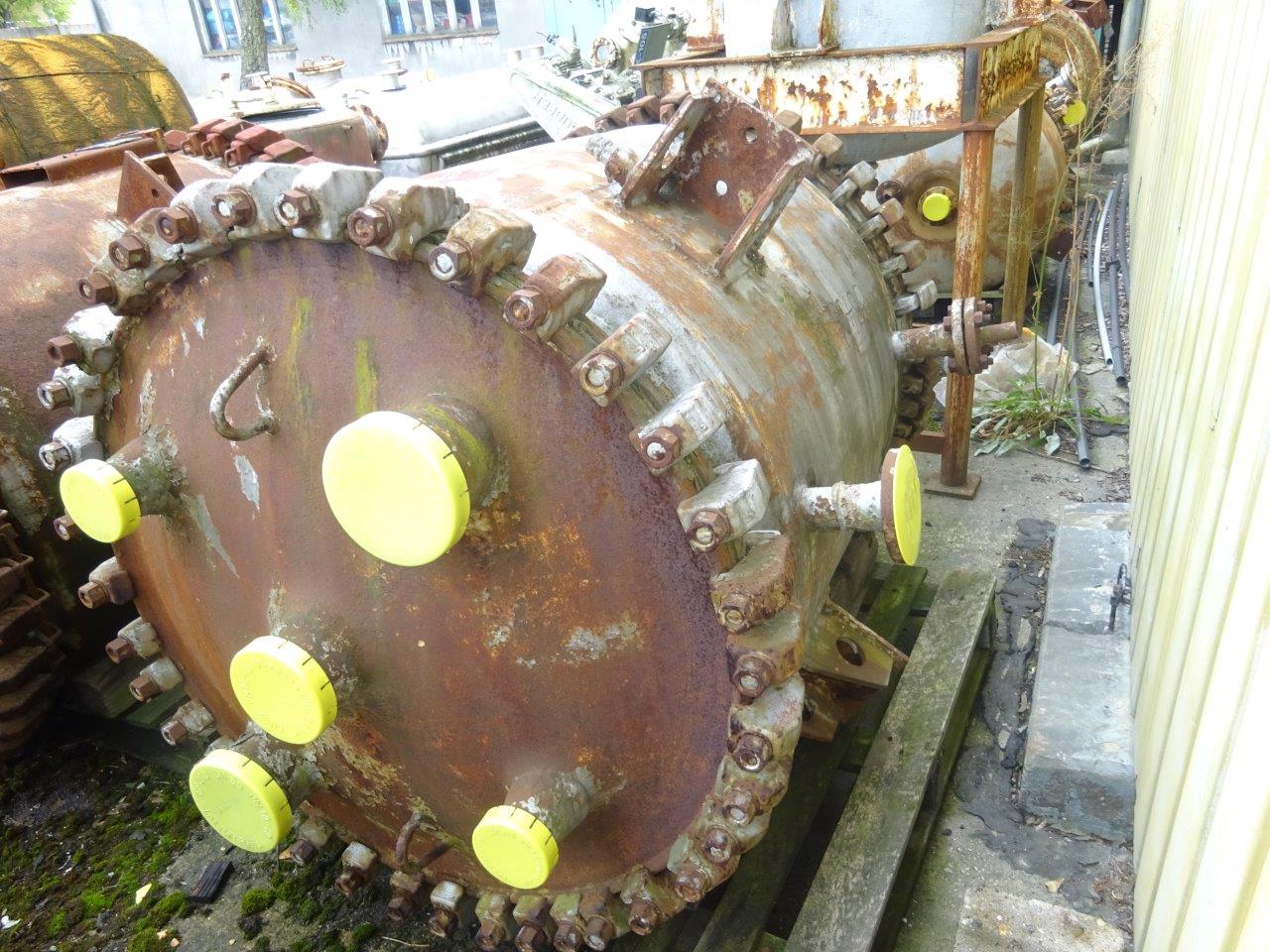

Glasslined Schwelmer Eisenwerke Tank - IPP# 83405

Type: Tank

Manufacturer: Schwelmer Eisenwerke

Condition: Used

Material: Glasslined

Capacity (Design): 1,000 L (264.2 gallons)

Orientation: Horizontal

• Designed to sit in saddles (not included)

Diameter: 1,000 mm (39.4 in). Straight-side Length: 1,200 mm (47.2 in). Internal Pressure: 3.2 bar (46.4 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Saddle.

Type: Tank

Manufacturer: Schwelmer Eisenwerke

Condition: Used

Material: Glasslined

Capacity (Design): 1,000 L (269.5 gallons)

Orientation: Vertical

• With 140 liter jacket.

Diameter: 1,000 mm (39.4 in). Straight-side Length: 1,400 mm (55.1 in). Internal Pressure: 4.5 bar (65.3 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Standard. Jacket Material: Carbon Steel. Jacket Pressure: 5.2 bar (75.4 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Lugs.

Type: Tank

Manufacturer: Schwelmer Eisenwerke

Condition: Used

Material: Glasslined

Capacity (Design): 350 L (92.5 gallons)

Orientation: Vertical

• With 60 liter carbon steel jacket.
• Variable head thickness: top head 12mm thick, bottom head 10mm thick.

Diameter: 800 mm (31.5 in). Straight-side Length: 610 mm (24 in). Internal Pressure: 6 bar (87 psi). Internal Temperature: 220 °C (428 °F). Jacket Type: Standard. Jacket Material: Carbon Steel. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 220 °C (428 °F). Vacuum: Yes. Support: Lugs.

Type: Tank

Manufacturer: Schwelmer Eisenwerke

Condition: Used

Material: Glasslined

Capacity (Design): 26,700 L (7,050 gallons)

Orientation: Vertical

• With 1000 liter carbon steel jacket.

Diameter: 2,600 mm (102.4 in). Straight-side Length: 4,500 mm (178 in). Internal Pressure: 6 bar (87 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Standard. Jacket Material: Carbon Steel. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Feet.
