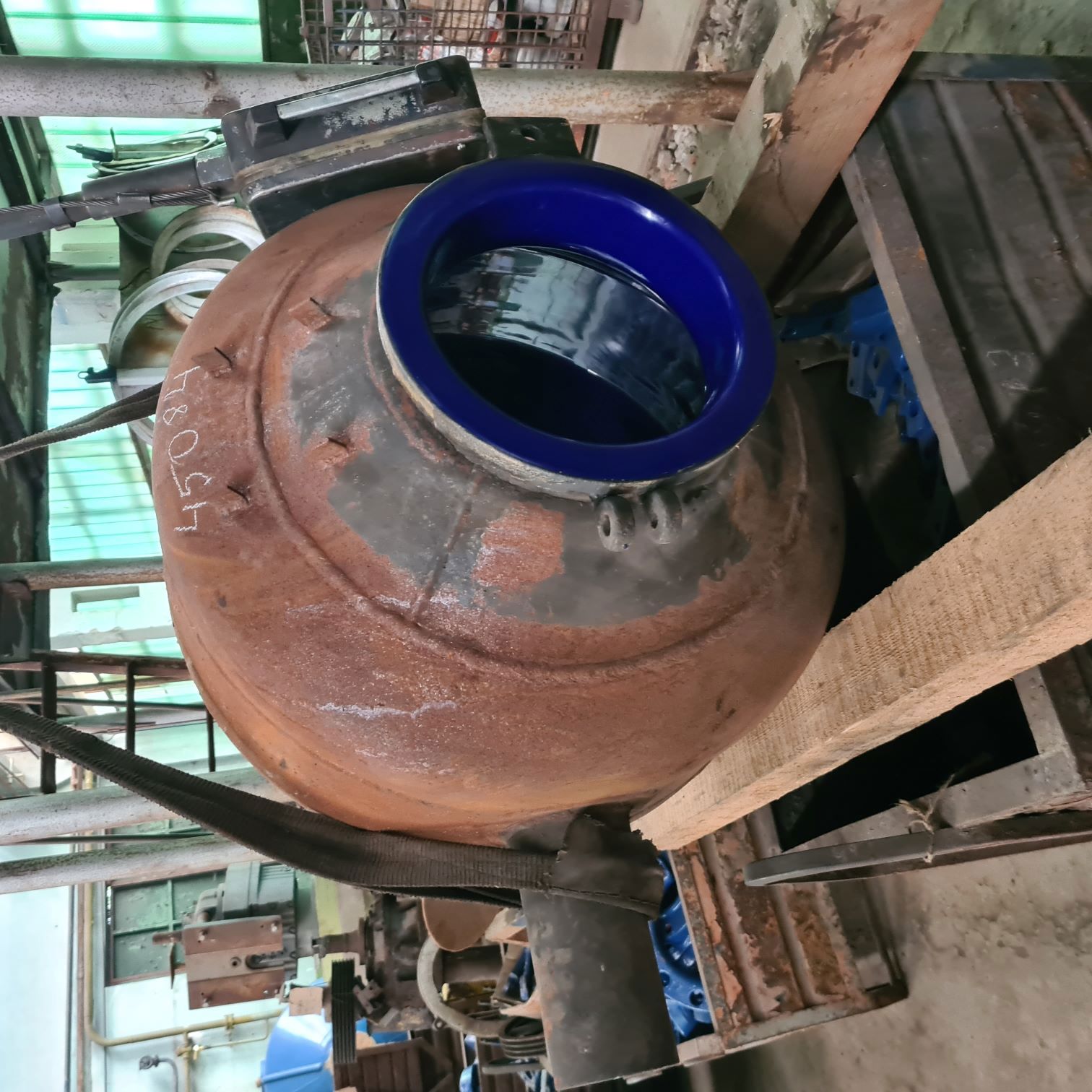

Carbon Steel Pfaudler Dryer-Twin Shell & Double Cone - IPP# 45084

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Pfaudler

Model: MT1000

Condition: Used

Material: Glasslined

Capacity Design: 0.99 m3 (35 ft3)

Capacity Operating: 0.99 m3 (35 ft3)

1000 liter, jacketed double Cone Vacuum Dryer Blender with Hastelloy vacuum arm;

geared motor;

Body rotation speed range: 1.65 – 10 rpm;

Complete with stuffing box seal, and rotary Joint.11

15 liter capacity in body and 193 liter capacity in jacket; 3/50/220/380 volt

Vessel Pressure: 6 bar (87 psi). Vessel Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Full Vacuum: Yes. Internal Finish: Glass Lined.

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Pfaudler

Model: 72-45 CDSB

Condition: Re-glassed

Material: Glasslined

Capacity Design: 3 m3 (107 ft3)

Capacity Operating: 1.98 m3 (70 ft3)

45 PSI with FV internal. 6 Ft diameter body. Bull and pinion gear 230/460 volt gear head motor with electric brake, 5 rpm rotation for a 1.08 rpm bucket rotation Mechanical seal on shaft 18" carge prort with cover, Unit includes a SS load platform, with the platform mounted on hydraulic cylinders that lift the pltform out of the way during dryer cycle.

Vessel Pressure: 2.1 bar (30 psi). Vessel Temperature: 343.3 °C (650 °F). Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 176.7 °C (350 °F).

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Pfaudler

Model: 72-45 CDSB

Condition: Used

Material: Glasslined

Capacity Design: 3 m3 (107 ft3)

Capacity Operating: 1.98 m3 (70 ft3)

45 PSI with FV internal. 6 Ft diameter body Bull and pinion gear 230/460 volt gear head motor with electric brake 5 rpm rotation for a 1.08 rpm bucket rotation.
Mechanical seal on shaft, Hastelloy 276-C vacuum arm. 18" carge prort with cover Unit includes a SS load platform, with the platform mounted on hydraulic cylinders that lift the platform out of the way during dryer cycle.

Vessel Pressure: 2.1 bar (30 psi). Vessel Temperature: 343.3 °C (650 °F). Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 176.7 °C (350 °F). Full Vacuum: Yes.

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Pfaudler

Model: 72-45 CDSB

Condition: Used

Material: Glasslined

Capacity Design: 3 m3 (107 ft3)

Capacity Operating: 1.98 m3 (70 ft3)

45 PSI with FV internal. 6 Ft diameter body. Bull and pinion gear 230/460 volt gear head motor with electric brake 5 rpm rotation for a 1.08 rpm bucket rotation.
Mechanical seal on shaft, Hastelloy 276-C vacuum arm. 18" carge prort with cover Unit includes a SS load platform, with the platform mounted on hydraulic cylinders that lift the platform out of the way during dryer cycle.

Vessel Pressure: 2.1 bar (30 psi). Vessel Temperature: 343.3 °C (650 °F). Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 176.7 °C (350 °F). Full Vacuum: Yes.
