water booster and RO feed skid Contains the following equipment, one 7.5 HP 316 SS booster pump, close coupled, and base mounted, designed to increase the water pressure to 67 GPM for the RO system. One 5 micron rated pre filter contained in a 8" diameter x 24" high filter housing One Trantor Super Changer heat exchanger, 316 SS plates, 6 sq.ft., to increase water temperature to temper at 77 degrees F. One Aquafine UV Light, to reduce bacteria loading on the RO filter With digital controls and local control panel in a NEMA cabinet.
Type: Water Treatment
Manufacturer: US Filter
Condition: Used
Water Treatment Type: Reverse Osmosis
Flow Rate: 4,770 L/h (21 GPM)

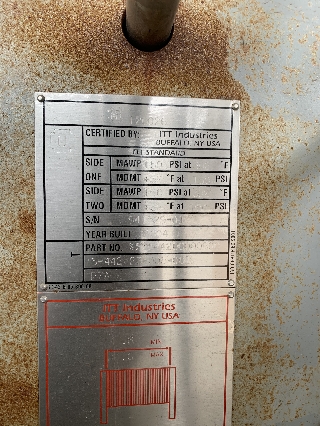

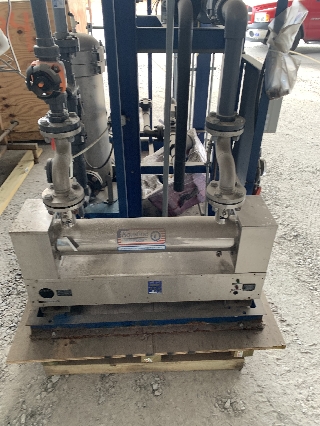

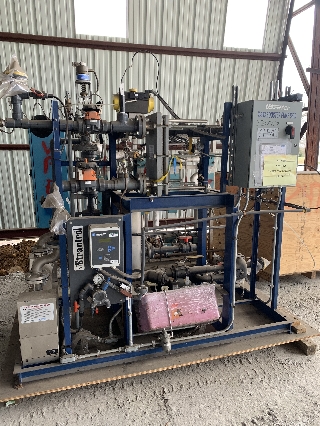

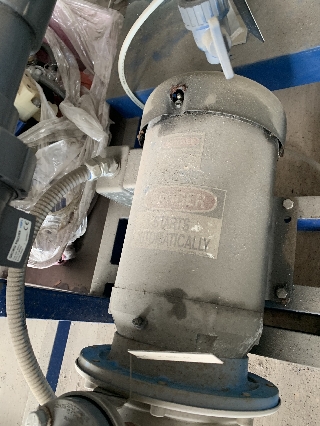

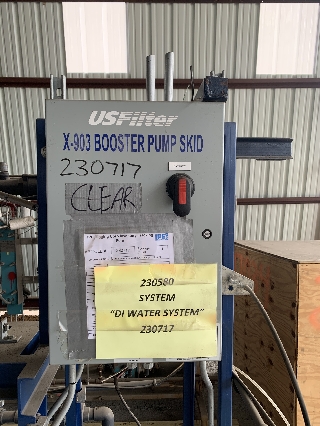

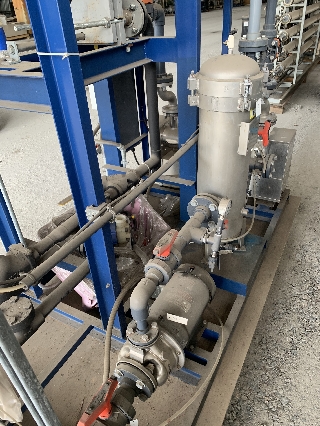

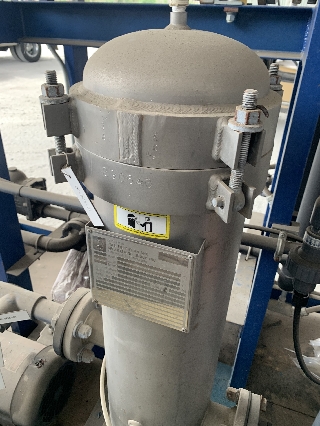

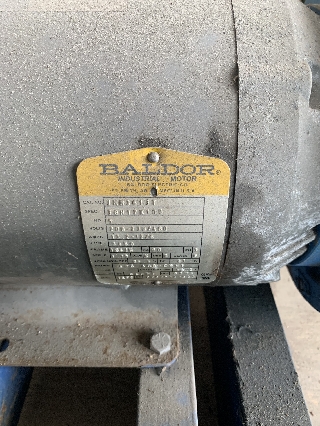

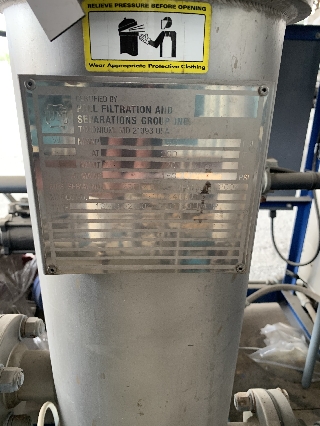

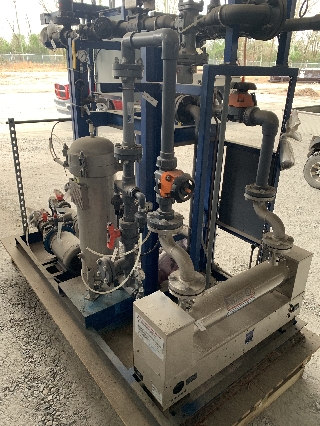

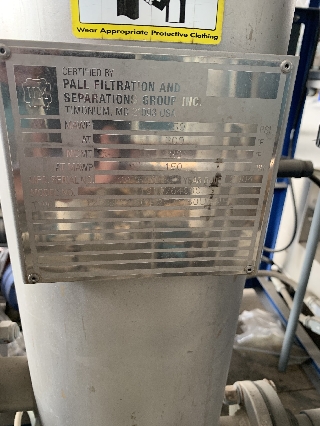

Booster Pump skid designed to increase water flow , temperature, and pressure for RO system, and CID system in the following steps of the process. With one approx. 10 sq ft, ITT Industrial plate heat exchanger model P7A, with 316 SS SS plates rated for 150 psi at 302 degrees F on both the process or service side One, 5 HP, 316 SS centrifugal pump rated for 60 psi one 5 micron filter in a 316 SS electropolished housing manufactured by Stainless Fluid systems 0.8" OD x 41" high, with 1.5" inlets and outlets The filter vessel is rated for 150 psi at 300 degrees F. UV lamp, rated for 254 NM, in a 316 SS polished housing With digital flow controls, and a US filter power control panel.
Temperature: 148.9 °C (300 °F). Pressure: 10.3 bar (150 psi). Controls: Yes. Control Details: Digital flow controls, US filter power control panel. System: Yes.
Type: Water Treatment
Manufacturer: US Filter
Model: 90/00014-50L
Condition: Used
Material: Carbon Steel
Water Treatment Type: Reverse Osmosis
Flow Rate: 7,949 L/h (35 GPM)
Sanitary, Reverse Osmosis system This is a Pharmaceutical and biotech grade machine single pass The system recovery rate is 75% with a membrane salt rejection rate of 99% nominal. Nine membranes are Filmtec RO390FFseries TFC, spiral wound loose wrap, full fit. and the unit has a efficiency pump. The frame is structural CS, polyurethane coated.
Temperature: 15.6 °C (60 °F). Pressure: 4.1 bar (60 psi). Controls: Yes. System: Yes. Multi Stage: Yes. Membrane Type: (9x) Filmtec RO390FFseries TFC, spiral wound loose wrap, full fit.
Type: Water Treatment
Manufacturer: US Filter
Condition: Used
Water Treatment Type: US Filter Reverse Osmosis DI water system
Flow Rate: 11,356 L/h (50 GPM)
US Filter Reverse Osmosis DI water system includes a US Filter system control panel with digital monitors, and a US fiter power control panel with RO pump hour meter. RO pump is a Grundfos "2" inlet and out pump, (3) CodeLine Membrane Housings, model 80A30, rated 300 psi maximum operating pressure, 20 to 120 degrees F.
Temperature: 48.9 °C (120 °F). Pressure: 20.7 bar (300 psi). Controls: Yes. System: Yes.
